Product Details
Place of Origin: NINGBO
Brand Name: Linkai
Certification: ISO CE
Model Number: Duct Rodder
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Get the latest
Packaging Details: Carton packing
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000sets/month
Name: |
Fiberglass Rodder |
Apply: |
Pulling Cable Line |
Color: |
Blue |
Length: |
300mm |
Diameter: |
11mm |
Frame: |
Wheeled Frame |
Name: |
Fiberglass Rodder |
Apply: |
Pulling Cable Line |
Color: |
Blue |
Length: |
300mm |
Diameter: |
11mm |
Frame: |
Wheeled Frame |

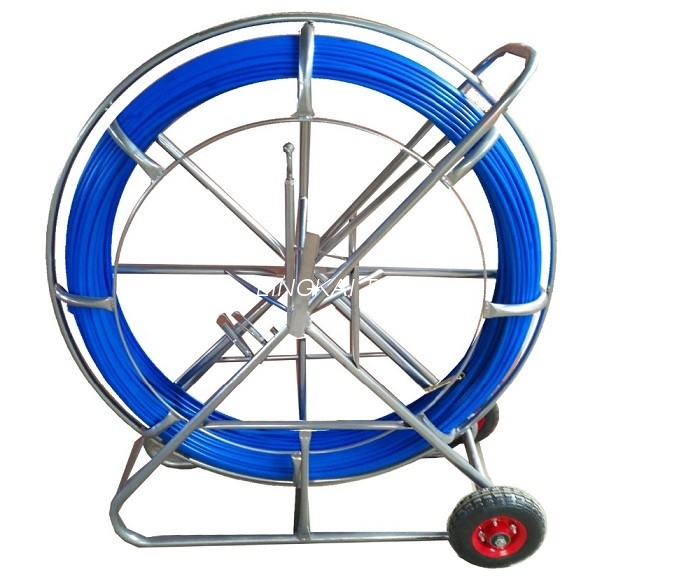

Galvanized Strengthened Frame Fiberglass Duct Rodder Conduit Good Helper
Fibergalss duct rodder, Conduit good help has the galvanzied strengthened frame, with customized Europe stryle.
The Corroison resiststant accessories,never drop copper head, and Alkali-free glass fiber material, strong and tough, High quality modified ABS coating, smooth and sun bearable.
Choose Rodder from Professional Duct Rodder Supplier
Lingsheng machinery manufacturing Co., Ltd., is a pioneering enterprise in fiberglass product industry. We have been dedicating to producing high quality, customized fiberglass duct rodder (FRP duct rodder). we offers one of the most comprehensive range of duct rodder available anywhere in the world with excellent performance in practical use, from the smallest 4.5 mm diameter to the rugged 16 mm duct rodder.
What Can Duct Rodder Do for Me?
Rodder is used in optical cable laying, communication cable laying as well pipe dredge and cleaning in conduit. So we called this cable rodder as its assist for cable operation, and conduit rodder as its working place, or fiberglass rodder as its mainly material is glass fiber. In infrastructure, especially the manhole-to-manhole work or long-run cable pulls, when trying to reach cables at the end of a long conduit, Electricians and plumbers alike could always use a hand, or even an arm and a leg. It’s dangerous and inefficient. With the duct rodder will make the job easy and help you in pulling cables and lines through conduits, tubes, pipes or ducts. All of this belong to fiberglass rodder has minimum bending radius for 105 mm (4.13 inch) and max tensile strength for 2.5 T.
Photo 1): we supply 4.5 mm to 16 mm rodders for cable laying even the conduit diameter from 50 mm to 450 mm.
Photo 2): with the help of accessories conduit cleaner, rodder can make the cleaner job so easy.
Photo 3): traceable duct rodder help you find blocker by its detectable founction .
Duct Push Rodder
| Specification | Rod Diameter (mm) | Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16, |
| Rod Length (m) | 30~500 | |
| Frame Spec.(mm) | 1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc | |
| Wheel Diameter(mm) | 300mm | |
| Wall thickness of Metal Frame | 2.2mm | |
| Color | blue, yellow, red, white etc | |
| Material | Rod Inner | Extruded by fiber glass and high strength resin at high temperature |
| Rod Outer | High Density polyethylene coating | |
| Iron Frame | Steel with high-temperature sprayed plastic or Spray coating | |
| Wheel | rubber | |
| Brake | Yes | |
| Drawing head | copper | |
| Physical Character | Density | 150g/m |
| Working temperature | -40°C to +80°C | |
| Breaking tension | 4.5T | |
| Bending Radius | 295mm | |
| Technology | Pultrusion | |
| Packing | Inside | plastic woven strip wind around the frame |
| Outside | Wooden pallet and Wooden box |
