Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: LS001
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Std exported term
Delivery Time: 10 days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets / week
Product Name: |
Fiberglass Duct Rod |
Rod Diameter: |
4 ~ 16 Mm |
Rod Length: |
Customized |
Color: |
Yellow, Blue, Orange, Red... |
Advantages: |
Light Weight And Felxible |
Processing: |
Pultrusion |
Product Name: |
Fiberglass Duct Rod |
Rod Diameter: |
4 ~ 16 Mm |
Rod Length: |
Customized |
Color: |
Yellow, Blue, Orange, Red... |
Advantages: |
Light Weight And Felxible |
Processing: |
Pultrusion |

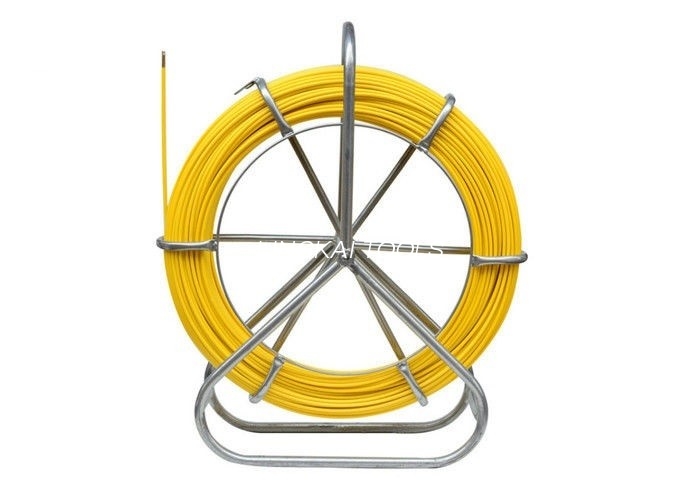

Portable Yellow Underground Cable Tools Duct Rod Fiberglass Duct Push Rodder
Application Duct Rod Fiberglass Duct Push Rodder
1. Used to install pulling ropes and winch ropes into ducts,ready for cable pulling operations.
2. Available push pull rodder
3. With cable roller
4. Lightweight and non-conductive
Features of Fiberglass Duct Rod Continuous/Continuous Duct Rodder
1. Constructed of fiberglass reinforced in the center and consists of a rugged plastic layer that would ensure the lifetime of the flexible rod;
2. Assembly: metal frame and rubber wheels, Wheel assembly for easy transportation; Guide rollers and the right parts for rotary coupling; parking brake for the flexible rod;
3. There is copper wire inside for tracing easily;
4. Polyethylene cover: Medium density polyethylene resin for the insulating and jacketing of cables;
5. Rolling bearing cage flotation (reel transport) for mobility should be light and easy to use in the field, including a parking brake for the flexible rod;
6. Feed device allows rod to feed out or be back with easy push or pull of rod;
7. Rugged tubular steel reel with adjustable positioning;
8. Rustproof bull-nose pulling eye for longer conduit run and underground duct;
9. Constructed of fiberglass reinforced in the center and consists of a rugged plastic layer that would ensure the lifetime of the flexible rod.
Duct Push Rodder
| Specification | Rod Diameter (mm) | Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16 |
| Rod Length (m) | 30~500 | |
| Frame Spec.(mm) | 1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc | |
| Wheel Diameter(mm) | 300mm | |
| Wall thickness of Metal Frame | 2.2mm | |
| Color | blue, yellow, red, white etc | |
| Material | Rod Inner | Extruded by fiber glass and high strength resin at high temperature |
| Rod Outer | High Density polyethylene coating | |
| Iron Frame | Steel with high-temperature sprayed plastic or Spray coating | |
| Wheel | rubber | |
| Brake | Yes | |
| Drawing head | copper | |
| Physical Characters | Density | 150g/m |
| Working temperature | -40°C to +80°C | |
| Breaking tension | 4.5T | |
| Bending Radius | 295mm | |
| Technology | Pultrusion | |
| Packing | Inside | plastic woven strip wind around the frame |
| Outside | Wooden pallet and Wooden box |
Traceable Rods Show
Our Service:
High quality fasteners products with best price;
Many years excellent experience with pre-sale and after-sale service;
Strict quality control according to your requirement;
Professional packing team keep every pack safely;
Send you some free samples along with your cargo to share us quality;
Other Underground Cable Tools:
