Ningbo Lingkai Electric Power Equipment Co., Ltd. nbtransmission@163.com 86--15958291731
Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: LS001
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Std export term
Delivery Time: 7days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets / week
Color: |
Orange |
Name: |
Fiberglass Drainer |
Wheel: |
Smaller Without, Big With |
Brand: |
Lingsheng |
Packing: |
Plastic Woven Bag And Carton Box Or Customized |
Length: |
You Decide |
Color: |
Orange |
Name: |
Fiberglass Drainer |
Wheel: |
Smaller Without, Big With |
Brand: |
Lingsheng |
Packing: |
Plastic Woven Bag And Carton Box Or Customized |
Length: |
You Decide |
Orange Flexible FRP Duct Roller / Fiberglass Duct Rodders / Fiberglass Drainer
Fiberglass Duct Rodder Structure
Constructed of fiberglass reinforced in the center and consists of a rugged plastic layer that would ensure the lifetime of the flexible rod.
Assembly: metal frame and rubber wheels, Wheel assembly for easy transportation; Guide rollers and the right parts for rotary coupling; parking brake for the flexible rod.
There is copper wire inside for tracing easily.
Polyethylene cover: Medium density polyethylene resin for the insulating and jacketing of cables.
Fiberglass Duct Rodder Specifications

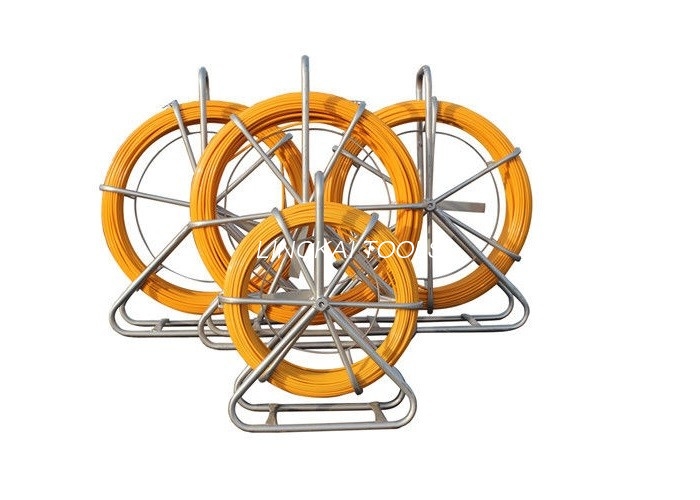

Orange Flexible Fiberglass Duct Rodder Plastic Layer With Rubber Wheels
| Technical Date of Fiberglass Duct Rodder | ||
| Specification | Rod Diameter (mm) | Φ 4,Φ 5,Φ 6,Φ 8,Φ 10, Φ 11, Φ 12, Φ 13, Φ 14, Φ 15, Φ 16 |
| Rod Length (m) | 30m~350m | |
| Frame Spec. (mm) | 1300x450x1330,1200x420x1220,980x350x1000,680x240x700,420x180x400 | |
| Material: | Fiber glass rod inner, | Extruded by fiber glass and high strength resin at high temperature |
| Fiber glass rod outer | High Density polyethylene coating | |
| Metal Frame | Steel with high-temperature sprayed plastic or hot dip galvanized | |
| Physical Property | Fiber glass content | 75-80% |
| Density | > 1.9gr/cm3 | |
| Working environment | -40° C to +80° C | |
| Minimum Pulling strength | 4000N +/-5% | |
| Consistency of rod | 137gr/m | |
| Flexural Modulus | > 46.500Mpa | |
| Elongation at break | 2.5-3% | |
| Min Bending Radius |
388mm
|
|
Application:
Flexible FRP Duct Roller / Fiberglass Duct Rodders / Fiberglass Drainer
1. Used to install pulling ropes and winch ropes into ducts,ready for cable pulling operations.
2. Available push pull rodder
3. With cable roller
4. Lightweight and non-conductive
Pls check the Dia we control
Can you customize the products as per our request?
A.: Yes, we do OEM and ODM. We could make the product suggestion based on your idea and budget.
How to get a sample from you?
A.: All samples will be free if unit cost under 10USD, but the freight should be on your side.
If sample sent by your express account like DHL, UPS etc, we will send sample to you directly (freight collect)
If sample sent by our express account like DHL,UPS etc, you should pay freight in advance (freight prepaid)
Any sample cost could be returned to you as part payment for next large order
How about the delivery date?
A.: Within 15 days after deposit received. Urgent order or small order will be handled case by case.
What are your Payment terms?
A. General speaking: TT 50% deposit, the balance is paid upon the copy of B/L.
B. We also accept: L/C, D/A, D/P, Western Union, MoneyGram and Paypal.
How to order?
| Step 1 | Contact Us |
| Show Us Item Name, Colors, Quantity and Details / Requirements | |
| Step 2 | Make a Performa Invoice for you |
| Step 3 | Performa Invoice Confirm and Payment |
| Step 4 | Production and Shipment |
Our Service:
High quality fasteners products with best price;
Many years excellent experience with pre-sale and after-sale service;
Strict quality control according to your requirement;
Professional packing team keep every pack safely;
Send you some free samples along with your cargo to share us quality;
Other Cable Pulling Tools:
