Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: Cable tractor
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 8 - 15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 set / month
Name: |
Cable Tractor |
Traction: |
> 300 Kg |
Pulling Speed: |
1 M -1.6 M / S |
Engine: |
Gasoline |
Tractor Size: |
80 * 60 * 80 Cm |
Weight: |
90 Kg |
Name: |
Cable Tractor |
Traction: |
> 300 Kg |
Pulling Speed: |
1 M -1.6 M / S |
Engine: |
Gasoline |
Tractor Size: |
80 * 60 * 80 Cm |
Weight: |
90 Kg |
Fiber Optic Cable Tractor Gasoline Drived Engine Cable Hauling Machine

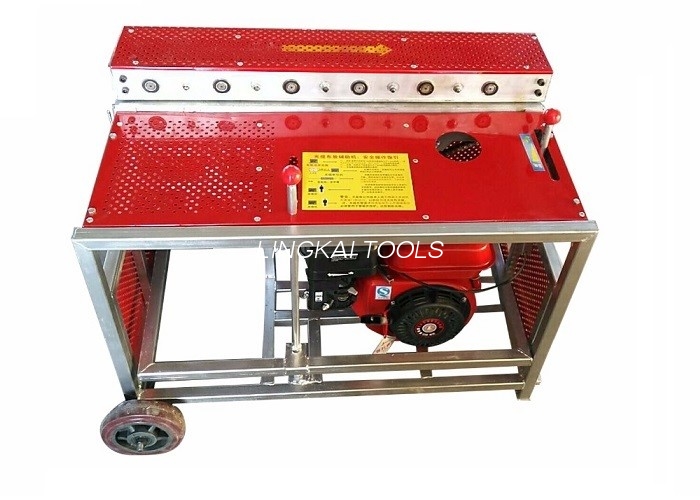

Product Display Fiber Optic Cable Tractor
Fiber Optic Cable Tractor Gasoline Drived Engine Cable Hauling Machine
Fiber Optic Cable Tractors is an electric machine for laying power cable (or communication cable).It can be used with cable tractor, hoist and other cable laying machine, which can save man power and material greatly and reduce construction cost effectively.
Specification Gasoline Drived Engine Cable Hauling Machine With 1 M -1.6 M / S Pulling Speed
Quick Detail of Cable Hauling Machine:
| Traction | ＞300KG |
| Pulling Speed | 1m -1.6 m/s |
| Outlet opening size | 5mm*45mm |
| Belt Size | 1000m*60mm |
| Engine Gasoline Tank | 4L,(92#,93#Gasoline) |
| Total Power | 4.3KW |
| Machine Size | 80*60*80cm |
| Machine Weight | 90KG |
| Line Bracket Dimension |
Out diamerer:110cm Inner Diameter:85cm |
| Suitable Diameter Of Cable | Cable wire rope,Cable steel |
Part of Cable Hauling Machine details:
1) The engine power is powerful and effficient;
2) Refueling 4 litres 92#93# petrol;
3) Adjustable gear can push and pull, to control fast or slow;
4) Variable wheel can change the engine speed regulation speed.
5) Perforator bracket hole can be connected to the tube holder for easy and quick.
Fiber Optic Cable Tractors widely used,can replace the artificial pull, the speed is quick, does not injure the cable.
Before, it is very wasting time, wasting a lot of labor in the construction site. Now, time saving,labor saving ,and efficienty enhance, and money saving.
The machine is easy to operate, and the four operating stops are (push, pull, idle, and slow) to select the desired position. Before changing gear, you must adjust the throttle to the idle state, and then control the accelerator on your hand when you hang it. Turn off the flame switch after use.
