Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: LS
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: PV, plastic
Delivery Time: 8 - 15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 sets / month
Name: |
Cable Trailer |
Application: |
Laying Cable |
Construction: |
Underground Site |
Ton: |
12 |
Material: |
Std Steel |
Model: |
LS12T |
Name: |
Cable Trailer |
Application: |
Laying Cable |
Construction: |
Underground Site |
Ton: |
12 |
Material: |
Std Steel |
Model: |
LS12T |

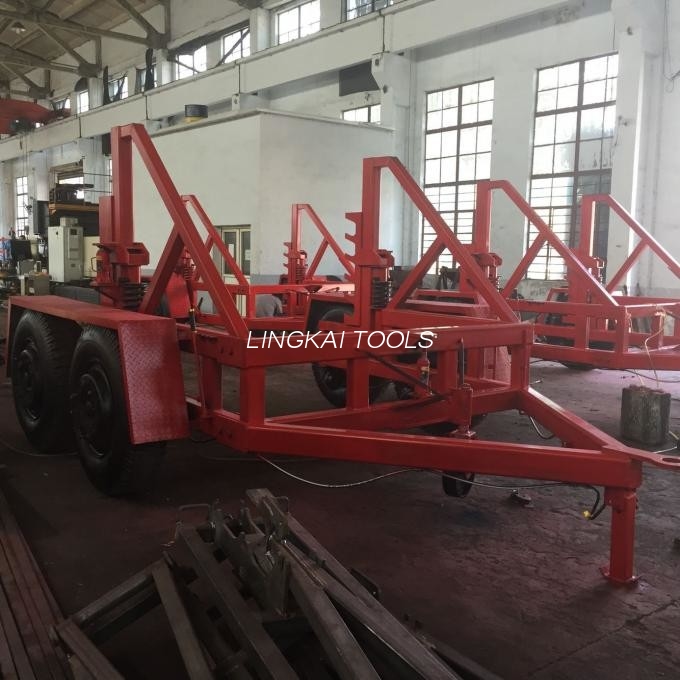

12 Ton Cable Drum Trailer Underground Cable Tools,Cable Reel Trailer
Application
This 12 Ton Cable Drum Trailer Underground Cable Tools With Hand Brake and Air Brake, product is used for cable drum hauling and cable pulling-pushing.The machine is equipped with automatic braking device, so it can brake effectiveiy by moving clutch.It is flexible steering,and can change angle at random. It is a necessary tool for electric construction because of its simple operation and easy maintenance.We can make products with special specification as your requirements.
Cable drum trailer, cable reel trailer,Technical Data
| Model | Max Load | Weight | Max Lifting Height | Inside Wide | length | Wide | High |
| (T) | (kg) | mm | mm | (mm) | (mm) | (mm) | |
| LS-3T | 3 | 600 | 1550 | 1400 | 3700 | 2200 | 1800 |
| LS -5T | 5 | 900 | 1750 | 1650 | 4000 | 2700 | 2180 |
| LS -8T | 8 | 1200 | 1900 | 1950 | 4200 | 3200 | 2300 |
| LS -10T | 10 | 1500 | 2000 | 2000 | 4300 | 3400 | 2400 |
| LS -12T | 12 | 2600 | 2000 | 2000 | 4300 | 3400 | 2400 |
More To 12 Ton Cable Drum Carrier, Cable Reel Trailer With Axis Bar for Cable Laying
| Model | Rated Load | Weight(kg) | Applicable coil diameter(mm) | Applicable coil width(mm) | Overall dimensions(mm) |
| LS-12T | 12T | 3000 | ≤3500 | ≤1850 | 4300×3400×2800 |
More About the Cable Drum Trailer
12 Ton Underground Cable Tools Cable Reel Trailer For Underground Site
Mechanical (reinforced) cable trailers, hydraulic cable trailers: also known as cable tray trailers, cable release trailers, cable pay-off vehicles. For cable reels and cable display. The use of mechanical lifting, simple operation, sturdiness and durability. The traction tire located in front of the cable trailer can be arbitrarily changed in angle and moved flexibly. The cable trailer is equipped with a town reduction device to greatly enhance the stability. Note: The cable trailer can be disassembled and checked by the container.
About us: Lingsheng Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China. We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work. Our Tubular Gin Pole, Come Along Clamp, Wire Rope Pulley Block, Nylon Sheave Hoisting Tackle, Cable Mesh Sock Grip, Line Stringing Swivel…all are OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world, and has wined the best brand reputations. Some items like the Cable Drum Trailer, and the cable jack stands we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either Technical questions or Products requirements. Please approach us.
