Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: LS
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Std export term
Delivery Time: 8 - 15 word days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 sets / month
Model: |
LS-5 |
Load: |
5 Ton |
Name: |
Cable Reel Carriage |
Type: |
Underground Tools |
Weight: |
900 Kg |
Lifting High: |
1750 Kg |
Model: |
LS-5 |
Load: |
5 Ton |
Name: |
Cable Reel Carriage |
Type: |
Underground Tools |
Weight: |
900 Kg |
Lifting High: |
1750 Kg |

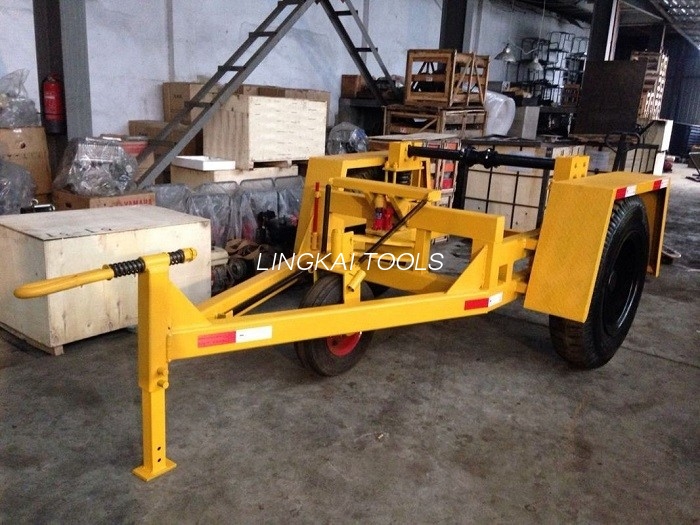

Underground Cable Tools 5Ton Hydraulic Cable Drum Trailer/Reel Carrier
Introduction
Underground cable installation tools 5 Ton hydraulic cable drum trailer/reel carrier is used for cable drum hauling and cable pulling-pushing.The machine is equipped with automatic braking device, so it can brake effectiveiy by moving clutch.It is flexible steering,and can change angle at random. It is a necessary tool for electric construction because of its simple operation and easy maintenance.
Note
We can make products with special specification as your requirements.
Flexible Steering Underground Cable Tools , 5 Ton Hydraulic Cable Reel Carrier
Cable drum trailer, cable reel trailer,Technical Data
Underground Cable Tools 5Ton Hydraulic Cable Drum Trailer/Reel Carrier
| Model | Max Load | Weight | Max Lifting Height | Inside Wide | length | Wide | High |
| (T) | (kg) | mm | mm | (mm) | (mm) | (mm) | |
| LS-3T | 3 | 600 | 1550 | 1400 | 3700 | 2200 | 1800 |
| LS -5T | 5 | 900 | 1750 | 1650 | 4000 | 2700 | 2180 |
| LS -8T | 8 | 1200 | 1900 | 1950 | 4200 | 3200 | 2300 |
| LS -10T | 10 | 1500 | 2000 | 2000 | 4300 | 3400 | 2400 |
| LS -12T | 12 | 2600 | 2000 | 2000 | 4300 | 3400 | 2400 |
Technical data of 5 Ton Cable Drum Carriage, Cable Reel Trailer With Over Run Brake System
| Model | Rated Load | Weight(kg) | Applicable coil diameter(mm) | Applicable coil width(mm) | Overall dimensions(mm) |
| LS-5T | 5T | 1500 | ≤2800 | ≤1450 | 4000×2600×2500 |
More Information Shares:
Underground Cable Tools 5Ton Hydraulic Cable Drum Trailer/Reel Carrier
1) Used for cable drum hauling and cable pulling-pushing.
2) Adopt mechanical lifting method, simple operation, stable and durable.
3) The traction tire on the font of cable trailer can change angle at random and easy to move.
4) Equipped with damping device, the stability of trailer was increased greatly.
5) Remarks: the trailer can be transported by container after disassembly.
