Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: LS
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Exported term
Delivery Time: 8 - 10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 sets / month
Materail: |
Steel |
Model: |
LS-3T |
Load: |
3T |
Weight: |
900kg |
Coil Dia: |
<=2300mm |
Coil Width: |
<=1250mm |
Materail: |
Steel |
Model: |
LS-3T |
Load: |
3T |
Weight: |
900kg |
Coil Dia: |
<=2300mm |
Coil Width: |
<=1250mm |

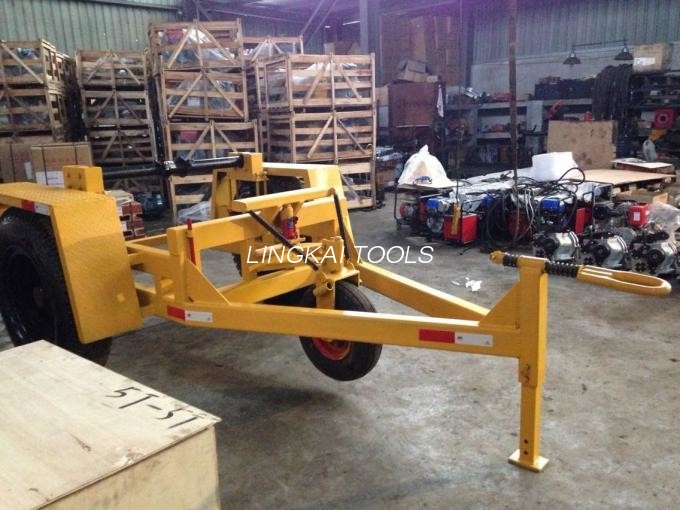

3 Ton Cable Drum Carriage, Cable Reel Trailer With Over Run Brake System
Application:3 Ton Underground Cable Tools Cable Drum Trailer With Over Run Brake System
Multifunction cable drum trailer, cable reel trailer for 3Ton is used for cable drum hauling and cable pulling-pushing.The machine is equipped with automatic braking device, so it can brake effectiveiy by moving clutch.It is flexible steering,and can change angle at random. It is a necessary tool for electric construction because of its simple operation and easy maintenance.
Technical Data of Multifunction cable drum trailer, cable reel trailer for 3Ton
| Model | Rated Load | Weight(kg) | Applicable coil diameter(mm) | Applicable coil width(mm) | Overall dimensions(mm) |
| LS-3T | 3T | 900 | ≤2300 | ≤1250 | 3800×2300×2200 |
Cable drum trailer, cable reel trailer,Technical Data
| Model | Max Load | Weight | Max Lifting Height | Inside Wide | length | Wide | High |
| (T) | (kg) | mm | mm | (mm) | (mm) | (mm) | |
| LS-3T | 3 | 600 | 1550 | 1400 | 3700 | 2200 | 1800 |
| LS -5T | 5 | 900 | 1750 | 1650 | 4000 | 2700 | 2180 |
| LS -8T | 8 | 1200 | 1900 | 1950 | 4200 | 3200 | 2300 |
| LS -10T | 10 | 1500 | 2000 | 2000 | 4300 | 3400 | 2400 |
| LS -12T | 12 | 2600 | 2000 | 2000 | 4300 | 3400 | 2400 |
Features: 3 Ton Underground Cable Tools Cable Drum Trailer With Over Run Brake System
Cable trailer is suitable for power, communication line overhead engineering, easy to cable consignment exhibition.
Cable trailers for power and power sector operations. The utility model is suitable for overhead projects of electric power and communication lines, which is convenient for cable to be checked and unfolded, and is convenient and efficient to use.
1) Max load 3T
2) Lifting hight Max 1550mm
3) Applicable coil width(mm) less than 1250mm, coil diameter less than 2300mm.
4) Be equipped with automatic braking device.
5) Can be disassembly into 3 parts, with wooden case and put in to the container.
Our Service:
High quality fasteners products with best price;
Many years excellent experience with pre-sale and after-sale service;
Strict quality control according to your requirement;
Professional packing team keep every pack safely;
Send you some free samples along with your cargo to share us quality;
About us: Lingsheng Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China. We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work. Our Tubular Gin Pole, Come Along Clamp, Wire Rope Pulley Block, Nylon Sheave Hoisting Tackle, Cable Mesh Sock Grip, Line Stringing Swivel…all are OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world, and has wined the best brand reputations. Some items like the Cable Drum Trailer, and the cable jack stands we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either Technical questions or Products requirements. Please approach us.
