Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: LS-8
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Export term
Delivery Time: 8-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 sets / month
Name: |
Cable Drum Trailer |
Load: |
8T |
Model: |
LS-8 |
Using: |
Transporting Cable Reel |
Apply: |
Underground Site |
Material: |
Steel |
Name: |
Cable Drum Trailer |
Load: |
8T |
Model: |
LS-8 |
Using: |
Transporting Cable Reel |
Apply: |
Underground Site |
Material: |
Steel |

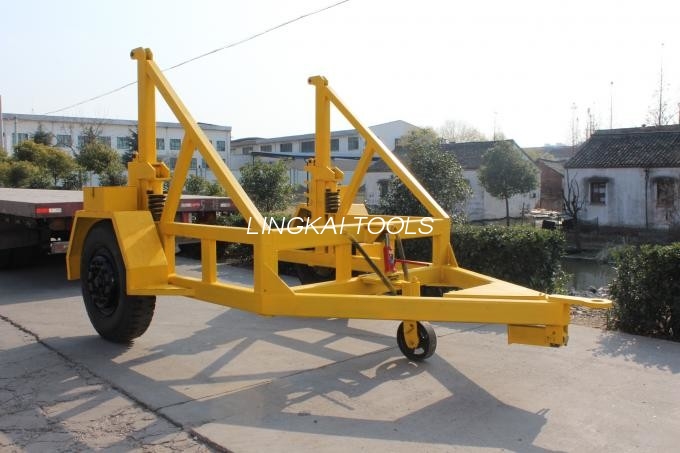

80KN Hydraulic Cable Reel Drum Trailer For Transporting Cable Reel
Application 80 KN Hydraulic Cable Reel Trailer Steel Material For Transporting Cable Reel
1. Uses in the large-scale reel laying
2. Loading and unloading.
3. The transportation.
Technical data of 80KN Hydraulic cable reel drum trailer for 3300mm coil diameter
| Model | Rated Load | Weight(kg) | Applicable coil diameter(mm) | Applicable coil width(mm) | Overall dimensions(mm) |
| LS-8T | 8T | 2300 | ≤3300 | ≤1750 | 4300×3200×2700 |
Description: 80KN Hydraulic Cable Reel Drum Trailer For Transporting Cable Reel .This product is the new generation of cable trailer, which integrates the function of drum hauling, cable pulling, cable pushing, guiding and tight into a whole. Equipped with automatic braking device, it can brake effectively only by moving clutch. With compact design and flexible steering function, it can be operated under narrow work site. Simple operation and easy maintenance, it is a necessary tool for electric power construction.
Cable drum trailer, cable reel trailer,Technical Data
Hydraulic Cable Reel Drum Trailer For Transporting Cable Reel
| Model | Max Load | Weight | Max Lifting Height | Inside Wide | length | Wide | High |
| (T) | (kg) | mm | mm | (mm) | (mm) | (mm) | |
| LS-3T | 3 | 600 | 1550 | 1400 | 3700 | 2200 | 1800 |
| LS -5T | 5 | 900 | 1750 | 1650 | 4000 | 2700 | 2180 |
| LS -8T | 8 | 1200 | 1900 | 1950 | 4200 | 3200 | 2300 |
| LS -10T | 10 | 1500 | 2000 | 2000 | 4300 | 3400 | 2400 |
| LS -12T | 12 | 2600 | 2000 | 2000 | 4300 | 3400 | 2400 |
Detailed Description
1. This strong cable drum transport and laying trailer uses the power shifting gear technology,uses nimbly convenient.
2. Uses in loading and unloading, the transportation, the large-scale reel laying.
3. Of course you can according to the need, have custom-made the size.
Other Underground Cable Tools
About us: Lingsheng Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China. We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work. Our Tubular Gin Pole, Come Along Clamp, Wire Rope Pulley Block, Nylon Sheave Hoisting Tackle, Cable Mesh Sock Grip, Line Stringing Swivel…all are OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world, and has wined the best brand reputations. Some items like the Cable Drum Trailer, and the cable jack stands we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either Technical questions or Products requirements. Please approach us.
