Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: JHW
Payment & Shipping Terms
Minimum Order Quantity: 10 pcs
Price: negotiable
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 pcs / month
Model: |
JHW |
Name: |
Wire Rope Puller |
Type: |
Ratchet Withdrawing |
Rated Load: |
1~3T |
Apply: |
Tightening |
Materail: |
Steel |
Model: |
JHW |
Name: |
Wire Rope Puller |
Type: |
Ratchet Withdrawing |
Rated Load: |
1~3T |
Apply: |
Tightening |
Materail: |
Steel |

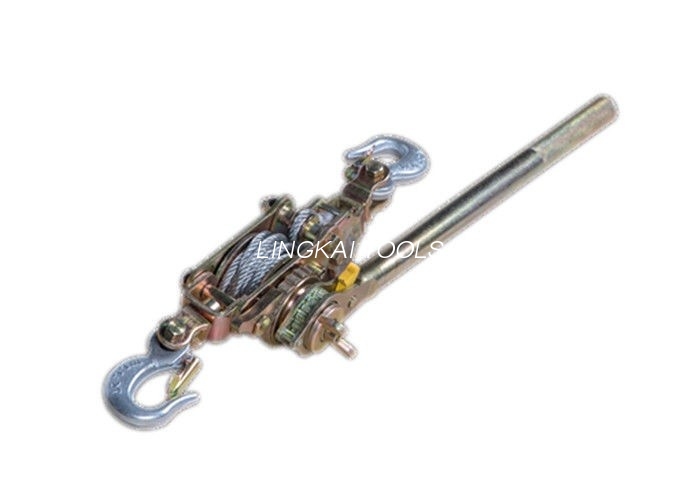

1 Ton Wire Rope Ratchet Puller Hand Cable Puller For Tightening Wire
Wire Rope Ratchet Puller Hand Cable Puller Characteristic:
1 Ton Wire Rope Ratchet Puller Hand Cable Puller For Tightening Wire
Forward/reverse load holding mechanism
Heavy duty - Quality ratchet mechanism
360º Handle movement
Fast advance mechanism
Supplied with Test Certificate
Ratchet Withdrawing Wire Tool Wire Rope Tightener Technical Data
1 Ton Wire Rope Ratchet Puller Hand Cable Puller For Tightening Wire
Model Type | Rated Load(KN) | Max Length(mm) | Min Length(mm) | Weight(kg) |
JHW-1000 | 10 | 1210 | 410 | 3.2 |
JHW-1500 | 15 | 1500 | 480 | 4.2 |
JHW-1500A | 15 | 2000 | 480 | 4.7 |
JHW-2000 | 20 | 1500 | 480 | 4.8 |
JHW-3000 | 30 | 1500 | 510 | 5.2 |
Double Hook Wire Rope Puller Cable Puller Features
1. It has small size and light weight and convenient collection and easily carried. Its ability on operate can play its role even in a narrow place.
2. The ratchet puller is made by high quality of Taiwan galvanized wire rope and aluminum alloy pressure head. It’s strong and wearable, not fall off.
3. It is made by high tensile steel plate and the structure is used in high quality integral structure of carbon steel, then matching with the high density gear, which can rotate 360 degrees direction. The controlling keying can forward or backward turn. It is attached automatic braking device to save effort. It is suitable for electric power, telecom high homework. It is powerful and not easy to break.
4. With high tensile steel hook with latch, the strength gets greatly improved.
5. Material: High Tensile Carbon Steel
6. Constructions: heat treatment and high temperature treatment (Quenched and Tempered)
7. Finish: color zinc plated.
