Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: Wrench
Payment & Shipping Terms
Minimum Order Quantity: 20 pcs
Price: negotiable
Packaging Details: Carton or wooden case
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20000 pcs / month
Name: |
Plum Wrench |
Type: |
Double Head |
Material: |
Galvanzied Steel |
Using: |
Tighten Bolts |
Item: |
Wrench |
Length: |
480mm |
Name: |
Plum Wrench |
Type: |
Double Head |
Material: |
Galvanzied Steel |
Using: |
Tighten Bolts |
Item: |
Wrench |
Length: |
480mm |

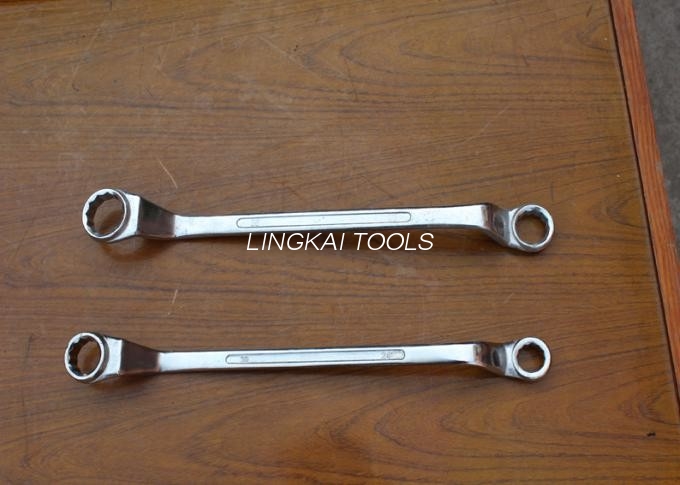

Galvanzied Double Offset Ring Spanner Wrench,Plum Wrench,Quincuncial Wrench
Galvanzied Double Offset Ring Spanner Wrench,Plum Wrench,Quincuncial Wrench:
Galvanzied Double Offset Ring Spanner Wrench,Plum Wrench,Quincuncial Wrench,Double Offset Ring Spanner applies to tighten the bolt of iron tower and tighten other bolt.Double Offset Ring Spanner applies to tighten the bolt of iron tower and tighten others, it has the high quality steel alloy galvanized, convenient to use, and best strength, this spanner wrench has 3 types, double-head forged, chrome-palte, double head galvanzied, and single head. Pls kindly refer to the data below.
| Item number | Specification | Length (mm) | Weight (kg) | Remark |
| 05151 | M16, M20 | 480 | 1.4 | Double head Forged .chrome-plate |
| 05152 | M20, M24 | 1.5 | ||
| 05155A | M27, M30 | 600 | 2.3 | Double head Galvanized |
| 05155B | M33, M36 | 650 | 2.6 | |
| 05155C | M36, M39 | 700 | 3.0 | |
| 05156A | M27 | 550 | 1.7 | Single head Galvanized |
| 05156B | M30 | 550 | 1.8 | |
| 05156C | M33 | 550 | 1.8 | |
| 05156D | M36 | 600 | 2.0 | |
| 05156E | M39 | 600 | 2.1 | |
| 05156F | M42 | 700 | 2.6 | |
| 05156G | M45 | 700 | 2.7 | |
| 05156H | M48 | 700 | 2.7 | |
| 05156J | M52 | 750 | 3.0 | |
| 05156K | M56 | 750 | 3.1 | |
| 05156L | M60 | 750 | 3.1 | |
| 05156M | M64 | 750 | 3.2 | |
| 05156N | M68 | 750 | 3.3 | |
| 05156P | M72 | 750 | 3.4 |
Scaffolding Tools Ratchet Wrench for Tower Erection Tighten Solid Nut
is used for tower erection tighten solid nut, ratchet defend fall and every one has two sleeves, use convenience.Features:Safe and Reliable;Light in weight;
Here is the data sheet let your reference
| Item number | Specification | Length (mm) | Weight (kg) |
| 05101 | 14(M8), 17(M10) | 310 | 0.6 |
| 05103 | 19(M12), 22(M14) | 310 | 0.6 |
| 05104 | 19(M12), 24(M16) | 310 | 0.6 |
| 05105 | 22(M14), 24(M16) | 310 | 0.6 |
| 05106 | 24(M16), 27(M18) | 310 | 0.7 |
| 05107 | 24(M16), 30(M20) | 360 | 0.9 |
| 05108 | 24(M16), 32(M22) | 360 | 0.9 |
| 05109 | 27(M18), 30(M20) | 360 | 0.9 |
| 05110 | 27(M18), 32(M22) | 360 | 0.95 |
| 05111 | 30(M20), 32(M22) | 360 | 1.0 |
| 05112 | 30(M20), 36(M24) | 360 | 1.0 |
| 05113 | 32(M22), 36(M24) | 360 | 1.1 |
Sharp-end wrench is used for tower erection tighten solid nut, the whole adoption alloy steel forges.
Features: small size & compact structure; light weight; Material:alloy steel
| Item number | Specification | Length (mm) | Weight (kg) |
| 05121 | 14(M8) | 280 | 0.2 |
| 05122 | 17(M10) | 280 | 0.25 |
| 05123 | 19(M12) | 300 | 0.35 |
| 05124 | 22(M14) | 320 | 0.45 |
| 05125 | 24(M16) | 350 | 0.65 |
| 05126 | 27(M18) | 360 | 0.7 |
| 05127 | 30(M20) | 400 | 1.0 |
| 05128 | 32(M22) | 400 | 1.2 |
| 05129 | 36(M24 | 420 | 1.4 |
| 05130 | 41(M27) | 450 | 1.9 |
| 05131 | 46(M30) | 480 | 2.5 |
| 05132 | 50(M33) | 500 | 3.0 |
| 05133 | 55(M36) | 520 | 3.9 |
| 05134 | 65(M42) | 520 | 4.2 |
