Product Details
Place of Origin: NINGBO
Brand Name: Linkai
Certification: ISO CE
Model Number: Duct Rodder
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Get the latest
Packaging Details: Carton packing
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000sets/month
Name: |
Cable Rodder |
Apply: |
Cable Laying Cleaning |
Color: |
Yellow |
Length: |
300mm |
Diameter: |
12mm |
Frame: |
Protable Wheel |
Name: |
Cable Rodder |
Apply: |
Cable Laying Cleaning |
Color: |
Yellow |
Length: |
300mm |
Diameter: |
12mm |
Frame: |
Protable Wheel |

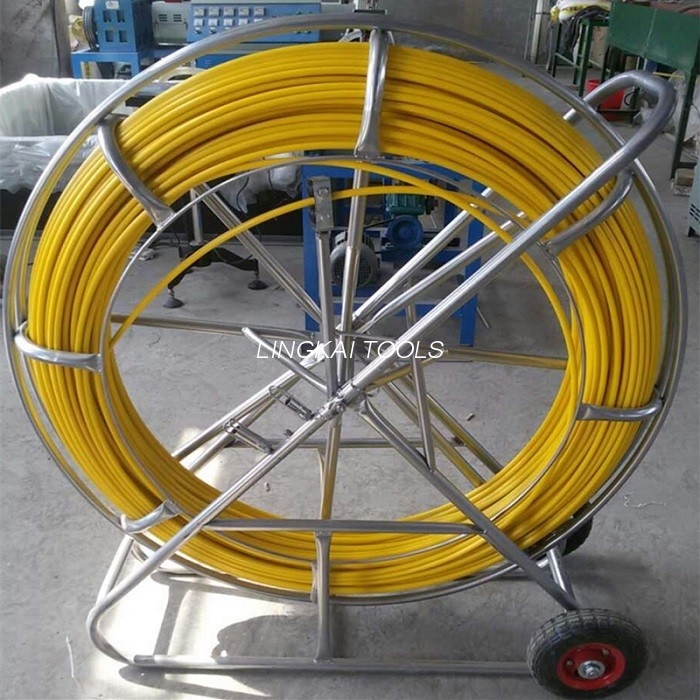

Portable Frame with Wheels Cable Rodder for Cable Laying and Pipeline Cleaning
Know the Rodder from Rod Structure, Rod Size and Frame:
► Rod Structure: There are two kinds of fiberglass rod: All the rods are manufactured from premium state-of-the-art materials, and formulated to offer the high performance & durability demanded by our customers. Now available in either standard rod and detectable rod. Standard rod come with fiberglass inner core and PP sheath. Detectable rod come with fiberglass inner core, PP sheath and Inserted copper wire.
► Standard rod: This structure designed for most common duct rodder, which come complete with two mainly parts of Fiberglass inner core and PP sheath. Commonly, We usually called this rodder as standard duct rodder or conventional duct rodder. we produce this fiberglass rodders' environment temperature for -40~+80℃.
► Traceable rod: Traceable rod has the same flexibility and tensile strength of standard rod. Additionally, as the name says that “traceable” means you can find some problems underground without digging or trenching. Because this structure of traceable rodder comes with a electric insert copper wire, which could be detectable and locatable. So we called this detectable duct rodder, locatable duct rodder or hunter rodder.
Photo 1) Standard rod complete with fiberglass inner core and PP sheath;
Photo 2) Traceable rod complete with fiberglass inner core, PP sheath and copper or steel wire.
Duct Push Rodder
| Specification | Rod Diameter (mm) | Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16, |
| Rod Length (m) | 30~500 | |
| Frame Spec.(mm) | 1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc | |
| Wheel Diameter(mm) | 300mm | |
| Wall thickness of Metal Frame | 2.2mm | |
| Color | blue, yellow, red, white etc | |
| Material | Rod Inner | Extruded by fiber glass and high strength resin at high temperature |
| Rod Outer | High Density polyethylene coating | |
| Iron Frame | Steel with high-temperature sprayed plastic or Spray coating | |
| Wheel | rubber | |
| Brake | Yes | |
| Drawing head | copper | |
| Physical Character | Density | 150g/m |
| Working temperature | -40°C to +80°C | |
| Breaking tension | 4.5T | |
| Bending Radius | 295mm | |
| Technology | Pultrusion | |
| Packing | Inside | plastic woven strip wind around the frame |
| Outside | Wooden pallet and Wooden box |
Quick Information of cable rodder:
| Copper head | High quality copper drawing head |
| Rod Guilde | Guide dirction go smoothly |
| Meter mark | Used for measuring distance |
| Frame | Easily push and pull |
| Fibergalss duct rodder | Durable, resistance, acid and alkale,light weight |
| Big rubber wheel | Make the push and pull easily |
