Product Details
Place of Origin: NINGBO
Brand Name: Linkai
Certification: ISO CE
Model Number: CR
Payment & Shipping Terms
Minimum Order Quantity: 10PCS
Price: Get the latest
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10000sets/month
Name: |
Cable Ground Roller |
Type: |
Cable Pulling Tools |
Model: |
CR |
Load: |
1T |
Weight: |
3.3kg |
Material: |
Nylon,aluminum Alloy |
Name: |
Cable Ground Roller |
Type: |
Cable Pulling Tools |
Model: |
CR |
Load: |
1T |
Weight: |
3.3kg |
Material: |
Nylon,aluminum Alloy |

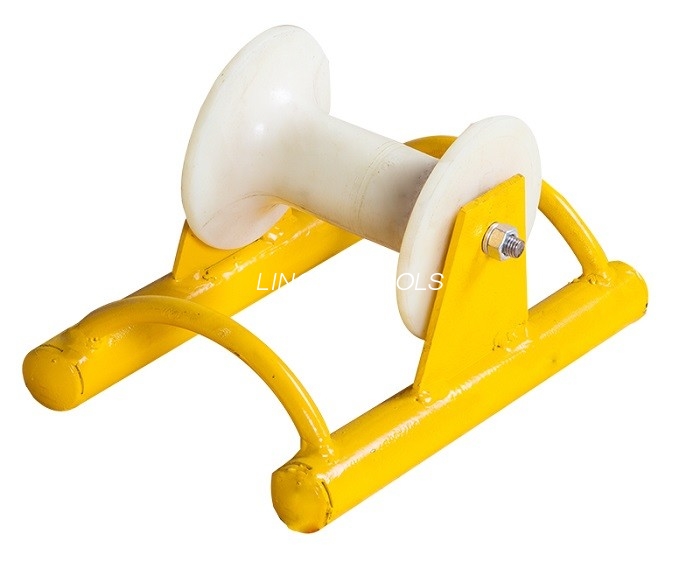

Cable Rollers:For cables up to diameter 150mm.
| Cat. No. | Rated Load (kN) | Construction | Weight (kg) |
| CR0110 | 10 | Cast aluminum frame, aluminum (nylon) roller | 5.4/3.6 |
| CR0111 | 10 | Steel tubing frame, aluminum (nylon) roller | 4.5/3.1 |
| CR0112 | 10 | Steel tubing, long legs, aluminum (nylon) roller | 5.8/4.2 |
| CR0113 | 10 | Steel plate base, aluminum (nylon) roller | 5.5/3.7 |
| CR0114 | 10 | Steel tubing frame, aluminum (nylon) roller | 4.7/3.3 |
| CR0115 | 10 | Steel tubing frame, aluminum (nylon) roller | 4.7/3.3 |
Features
1. We manufacture a lot of models Cable pulling block for different uses in the overhead transmission line construction.
2. The cable pulley is used to support conductors, OPGW,ADSS, communication lines
3. The cable pulley is made from high strength MC nylon, aluminum, the frame are made of galvanized steel.
4. High strength and flexibility, easy to use, light weight, wearresisting, and long service life.
The Cable Rollers that are available from Reid Brothers UK are specifically designed for either Trench or Duct applications. Trench rollers are lightweight, for narrower applications, designed to lay on the ground and protect the cable from the surface. Duct rollers are designed to be placed at the entrance to a duct so the cable is protected from the rim and corner, to ease the cable in and avoid damage.
