Product Details
Place of Origin: NINGBO
Brand Name: Linkai
Certification: ISO CE
Model Number: TRGM
Payment & Shipping Terms
Minimum Order Quantity: 10 pcs
Price: Get the latest
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10000pcs/month
Features: |
One, Two ,three Rollers |
Name: |
Laying Guide Roller |
Type: |
Manhole Lead In Roller |
Apply: |
Edge/corner |
Material: |
Aluminum Roller |
Warranty: |
One Year |
Features: |
One, Two ,three Rollers |
Name: |
Laying Guide Roller |
Type: |
Manhole Lead In Roller |
Apply: |
Edge/corner |
Material: |
Aluminum Roller |
Warranty: |
One Year |

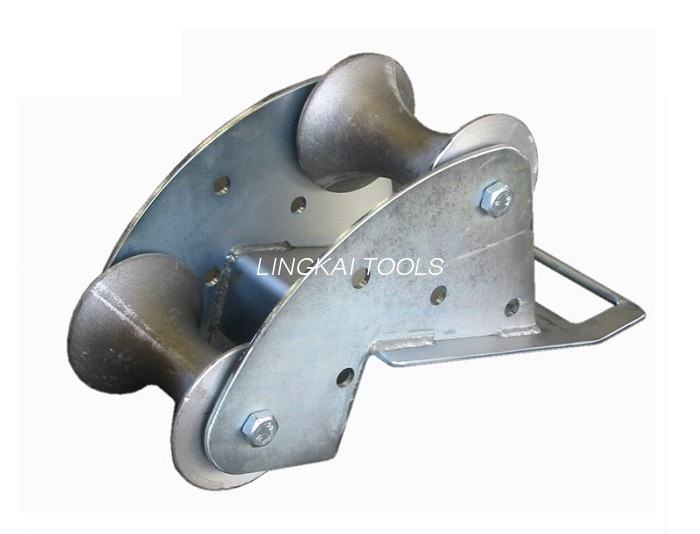

Cable Laying Guide Roller Cable Bend Roller Manhole Lead In Cable Roller
Cable Laying Guide Roller Cable Bend Roller
Roller guide for manholes made by steel structure welded,surface treatment by zinc plating,fit with aluminium casting roller,the roller by precision lathe,so ensure the surface are smooth,the roller fited with two precision deep groove ball bearing,the bearing both side have rubber seals to effectively resist dust,we use Grade 8.8 Hex bolts and Hex locknut to mounted the rollers on the frame.
The roller guide for cable laying works, it will fit on the manholes or wellhead,when the cable through the sewer and out the wellhead,it will be pull on the roller guide,it can protect the surface of the cable and let it easy to pullout
Data Sheet
| Item no. | Description | Parts |
| TRGM-1 | With signle roller |
Aluminum Roller,bearing 6210 2RS Blot and lock nut |
| TRGM-2 | With two rollers |
Aluminum rollers,bearing 6201 2RS bolt and lock nut |
|
TRGM-3
|
with three rollers |
Aluminum rollers,bearing 6201 2RS bolt and lock nut |
Edge/Corner Mount Swivelling Manhole Lead In Cable Roller
The MR3 manhole cable roller leads the cable from the drum into the jointbox/manhole or the winch bond out of the manhole. The roller has 2 angled hooks for location on the manhole edge (as shown) or on a 90 degree corner. The unit is similar to the MR2 but the roller section swivels to suit the direction of the pull
• Heavy steel section construction
• 76mm Diameter Aluminium Roller*
• Oil impregnated maintenance free bushes fitted
• Swivelling roller to align with the pull direction
• Zinc plated or Powder Coated Finish
• Base Size 27cms Long x 19cms Wide
• Weight 3 Kg
