Product Details
Place of Origin: NINGBO
Brand Name: Linkai
Certification: ISO CE
Model Number: DKT,JKD
Payment & Shipping Terms
Minimum Order Quantity: 5pcs
Price: Get the latest
Packaging Details: Wooden case
Delivery Time: 5-8work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20000pcs/month
Name: |
Cable Protective Bend |
Feature: |
Galvanized |
Weight: |
Light |
Structure: |
Plante With Or Withnot |
Apply: |
For Single Roller |
Use: |
Protect Conductor |
Name: |
Cable Protective Bend |
Feature: |
Galvanized |
Weight: |
Light |
Structure: |
Plante With Or Withnot |
Apply: |
For Single Roller |
Use: |
Protect Conductor |

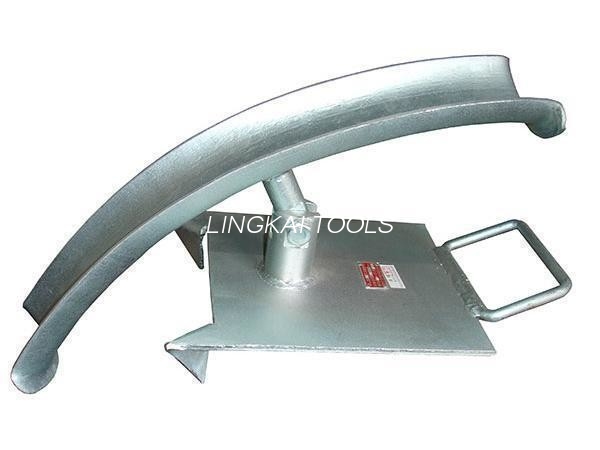

Cable Protection Bend Plate, Curved Cable Entrance Protective Sleeve
This cable protection bend plat plays a vital role in safeguarding the cable and pulling rope at the cable pithead. It is constructed from galvanized steel.
Technical Parameters
| Item Number | 21305 | 21307 | 21306 | 21308 |
| Model | JKD80 | JKD100 | JKD130 | JKD150 |
| Curvature Radius (mm) | R400 | R400 | R500 | R500 |
| Maximum Through Diameter (mm) | Φ80 | Φ100 | Φ130 | Φ150 |
| Weight (kg) | 5 | 5.2 | 6.0 | 6.5 |
Curved Cable Entrance Protective Sleeve
This curved cable entrance protective sleeve can effectively avoid the damage to cable when entering the tube. The flare tube end comes with a turning angle of 30°.
Main Specifications
| Item Number | Specification | Diameter of Applicable Tube End (mm) | Weight (kg) |
| 21316 | DKT90W | Φ90 | 1.35 |
| 21317 | DKT100W | Φ100 | 1.75 |
| 21318 | DKT130W | Φ130 | 3 |
| 21319 | DKT150W | Φ150 | 3.8 |
Our cable protective bend is made of galvanized steel material. It is extensively applicable to the protection of cable and pulling rope at the cable hole.
Main Specifications
| Item Number | 21321 | 21322 | 21322A | 21325 | 21326 |
| Structural Style | A | A | A | B | B |
| Diameter of Tube (mm) | Φ100 | Φ130 | Φ150 | Φ100 | Φ130 |
| Curvature Radius (mm) | R400 | R450 | R450 | R400 | R450 |
| Weight (kg) | 3.2 | 5.2 | 5.9 | 3.4 | 6 |
