Product Details
Place of Origin: Ningbo china
Brand Name: Linkai
Certification: ISO CE
Model Number: 660 mm
Payment & Shipping Terms
Minimum Order Quantity: 10sets
Price: get the latest
Packaging Details: std exported packing
Delivery Time: 3-5 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 3000sets/month
Model: |
660 MM Stringing Block |
Sheave: |
1,3,5 |
Rated Load: |
60KN |
Weight: |
150kg |
Material: |
MC Nylon Sheave |
Item: |
Stringing Block |
Model: |
660 MM Stringing Block |
Sheave: |
1,3,5 |
Rated Load: |
60KN |
Weight: |
150kg |
Material: |
MC Nylon Sheave |
Item: |
Stringing Block |

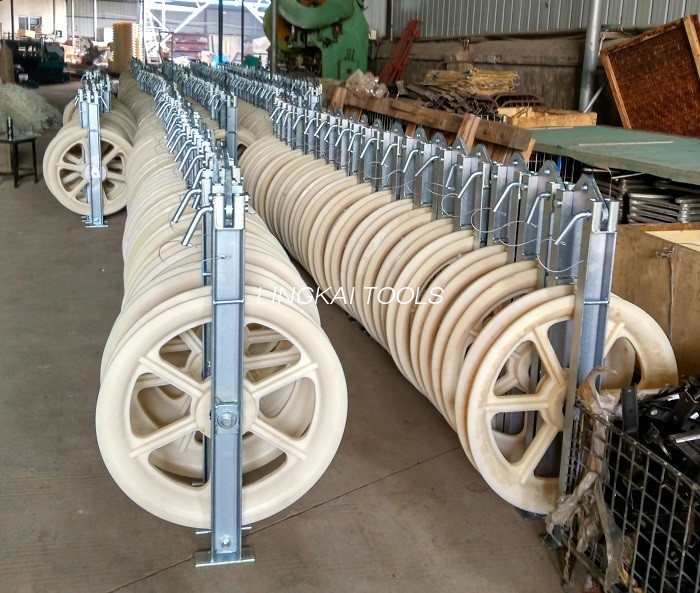

660mm Stringing Block for Paying off the Max ACSR 500 Condutor in Overhead Line Transmission
660mm Stringing Block
Usage: Protect the cable and conductor from fricting when they are laying.They can save time and effort.
1.Maximum suitable conductor ACSR500
2.Sheave dimension( outside diameter× rootdiameter × sheave width) Φ660×Φ560×100(mm)
3.Sheave dimension Φ660×Φ560×110(mm) can be customized.
Apply to paying off single conductor, twin bundled conductor or four bundled conductor on overhead transmission line construction.
Specification: Product can be made of aluminum wheel with rubber liner, MC nylon wheel with rubber liner or strengther nylon wheel with PU liner
Technical Data
| Item number | Model | Number of sheaves | Rated load (kN) | Weight (kg) | Features |
| 10121 | SHD660 | 1 | 20 | 30 | Rubber lined aluminium sheave |
| 10122 | SHS660 | 3 | 40 | 100 |
Middle : Cast steel sheave Conductor : Rubber lined aluminium sheave |
| 10123 | SHW660 | 5 | 60 | 150 | |
| 10124/10124A | SHDN660 | 1 | 20 | 26 | MC nylon sheave |
| 10125 | SHSLN660 | 3 | 40 | 86 |
Middle : MC nylon sheave Conductor : Rubber lined aluminium sheave |
| 10126 | SHWLN660 | 5 | 60 | 120 | |
| 10127/10127A | SHSQN660 | 3 | 40 | 70 | MC nylon sheave |
| 10128/10128A | SHWQN660 | 5 | 60 | 110 | |
| 10130 | SHQ660A | 7 | 75 | 190 |
Middle :cast steel sheave Conductor : MC nylon sheave |
