Product Details
Place of Origin: Ningbo
Brand Name: Linkai
Certification: ISO
Model Number: 822mm blocks
Payment & Shipping Terms
Minimum Order Quantity: 10 sets
Price: get the latest
Packaging Details: wooden case packing
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 800sets/month
Function: |
Pulling Acsr |
Feature: |
Large Diameter Stringing Pulley |
Size: |
822mm Diameter |
Service: |
One Year Warranty |
Type: |
Stringing Blocks |
Surface: |
Galvanized |
Function: |
Pulling Acsr |
Feature: |
Large Diameter Stringing Pulley |
Size: |
822mm Diameter |
Service: |
One Year Warranty |
Type: |
Stringing Blocks |
Surface: |
Galvanized |

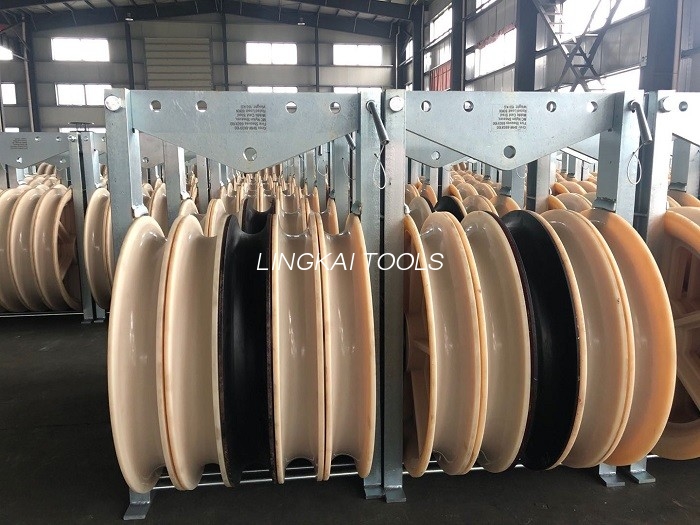

822mm Large Diameter Wheels Sheaves Bundled Wire Conductor Pulley Stringing Block
822mm Large Diameter Stringing Block
This 822mm Large Diameter Stringing Block possesses the dimension (outside diameter*root diameter*sheave width) of Φ822× Φ710× 110 (mm). Its maximum suitable conductor is ACSR630, which means that the aluminum of our conducting wire has the maximum cross section of 630 square millimeters.
The 10148 type product is designed with the assembled structure. It is really convenient to separate the conductor from middle sheave, thus helping reduce the weight during transportation. Dimension of the middle steel sheave is φ520×φ400×120 mm. Furthermore, we can also provide the rubber coated aluminum sheave, the rubber coated MC nylon sheave, as well as the reinforced nylon sheave coated by polyurethane.
1. Maximum suitable conductor ACSR630.
2. Sheave dimension ( outside diameter× root diameter × sheave width) Φ822×Φ710×110
3. Rubber lined MC nylon sheave for conductor can be customized.
822mmTechnical Parameters
| Item Number | Model | Number of Sheave | Rated Load (kN) | Weight (kg) | Sheave Features |
| 10141 | SHDN822 | 1 | 30 | 40 | MC nylon sheave |
| 10142 | SHSQN822 | 3 | 60 | 118 | |
| 10143 | SHWQN822 | 5 | 120 | 180 | |
| 10146A | SHQQN822 | 7 | 120 | 250 | |
| 10146 | SHQ822 | 7 | 120 | 285 | Middle: cast steel sheave Conductor: MC nylon sheave |
| 10148 | SHJ822 | 9 | 150 | 445 | |
| 10141A | SHDL822 | 1 | 30 | 45 | Aluminum sheave |
| 10141B | SHDLJ822 | 1 | 30 | 48 | Rubber lined aluminium sheave |
