508 X 75MM 60KN Conductor Stringing Blocks

Product Details

Place of Origin: NINGBO

Brand Name: LINGKAI

Certification: ISO

Model Number: 508MM

Payment & Shipping Terms

Minimum Order Quantity: 50 sets

Price: get the latest

Packaging Details: wooden case

Delivery Time: 3-10 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 3000 sets/month

Get Best Price
Product Details
Highlight:

508mm conductor stringing blocks

,

508 X 75MM conductor stringing blocks

,

60kn conductor stringing blocks

Model:
508 X 75MM
Name:
Conductor Stringing Block
Material:
MC Nylon
Weight:
Max 70kgs
Rated Load:
60KN
Broken Load:
120KN
Model:
508 X 75MM
Name:
Conductor Stringing Block
Material:
MC Nylon
Weight:
Max 70kgs
Rated Load:
60KN
Broken Load:
120KN
Product Description

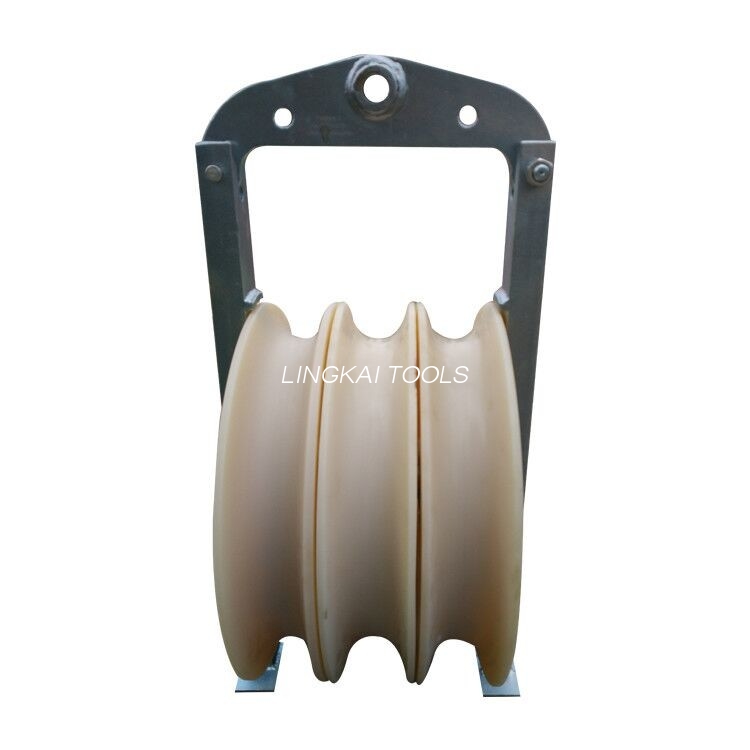

508 X 75MM THREE SHEAVES TRANSMISSION LINE MC NYLON CONDUCTOR STRINGING PILOT BLOCK

508 mm stringing blocks are normally used for stringing medium size conductor (17-25 mm) in overhead transmission line construction. We have designed series of these stringing blocks for single conductor, 2 bundled conductor and 4 bundled conductors stringing. 1.Maximum suitable conductor ACSR400.Configuration: 2.Sheave dimension ( outside diameter× root diameter × sheave width) Φ508×Φ408×75 (mm) 3.Sheave dimension Φ508×Φ408×100 (mm) can be customized



TECHNICAL DATA

Item number Model Number of sheaves Rated load (kN) Weight (kg) Features
10101 SHD508 1 20 18 Rubber lined aluminium sheave
10102 SHS508 3 40 61

Middle : Cast steel sheave

Conductor : Rubber lined aluminium sheave

10103 SHW508 5 60 93
10104/10104A SHDN508 1 20 16 MC nylon sheave
10105 SHSLN508 3 40 47

Middle : MC nylon sheave

Conductor : Rubber lined aluminium sheave

10106 SHWLN508 5 60 79
10107/10107A SHSQN508 3 40 38 MC nylon sheave
10108/10108A SHWQN508 5 60 70
