Product Details
Place of Origin: Ningbo
Brand Name: LINGKAI
Certification: ISO
Model Number: 750MM STRINGING BLOCKS
Payment & Shipping Terms
Minimum Order Quantity: 50 Sets
Price: Get the latest
Packaging Details: Oversea Shipping Standard Packing in Container
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000sets/month
Production Capacity: |
1000 PCs Per Month |
Stringing Block: |
Overhead Conductor Stringing Blocks |
Inner Diameter Of Sheave: |
640mm |
Conductor Diameter: |
Up To 34mm |
Outer Diameter Of Sheave: |
750mm |
Material Of Sheave: |
MC NYLON |
Production Capacity: |
1000 PCs Per Month |
Stringing Block: |
Overhead Conductor Stringing Blocks |
Inner Diameter Of Sheave: |
640mm |
Conductor Diameter: |
Up To 34mm |
Outer Diameter Of Sheave: |
750mm |
Material Of Sheave: |
MC NYLON |
Overhead Line Conductor Stringing Blocks Nylon Wheels Stringing Of Transmission Line
Product Description

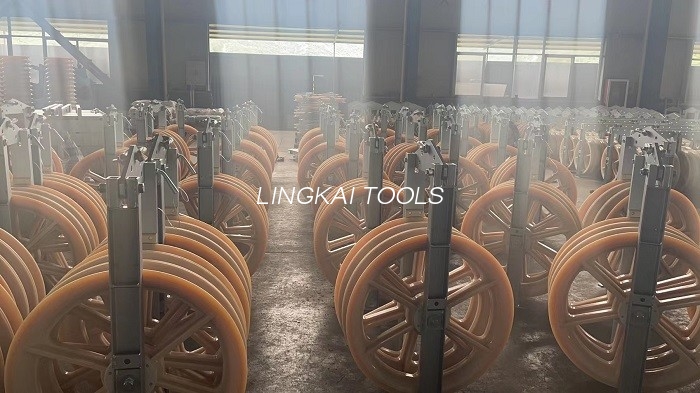

750MM Overhead Conductor Stringing Blocks (Running out Blocks) are used for overhead transmisson line bundled conductors or OPGW stringing. The sheave is made in MC Nylon.
750MM Nylon Sheaves Conductor Stringing Blocks
| Item No. | Model | ACSR Size Range (mm²) | Working Load (KN) | Weight (kg) | Material of Sheave |
| 10131 | SHDN750 | 500-600 | 30 | 39 | Nylon, optional can be lined with neoprene |
| 10132 | SHSQN750 | 500-600 | 60 | 98 | |
| 10133 | SHWQN750 | 500-600 | 100 | 156 |
Application: It is suitable to string single, two or four stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in high strength nylon. All the sheaves are mounted on ball bearings, the central sheave is specially strengthened for passing of steel wire rope. The frame is made in galvanized steel.
Note:
1. Clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request. The data in the model means the outer diameter of sheave X width of sheave (mm).
2. The sheave size outer diameter X inner diameter X width: 750mm X 640mm X 110mm
