Product Details
Place of Origin: NINGBO
Brand Name: Lingkai
Certification: ISO CE
Model Number: 660mm
Payment & Shipping Terms
Minimum Order Quantity: 20 sets
Price: get the latest
Packaging Details: exported packing
Delivery Time: 5-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000sets/month
Trade Term: |
FOB,CFR,CIF,DDP,CIP,EXW |
Custom: |
Helicopter Conductor Stringing Blocks |
Means Of Transport: |
Ocean, Air, Land |
Conductor Diameter: |
Up To 30 Mm |
Trade Term: |
FOB,CFR,CIF,DDP,CIP,EXW |
Custom: |
Helicopter Conductor Stringing Blocks |
Means Of Transport: |
Ocean, Air, Land |
Conductor Diameter: |
Up To 30 Mm |

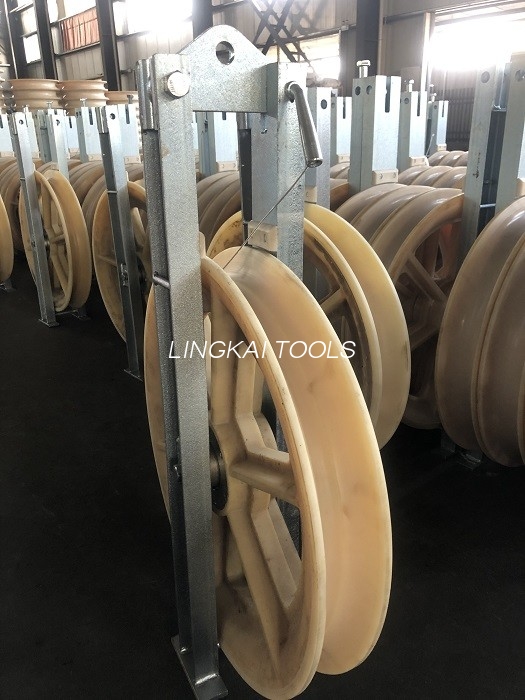

Single wheel 660 110 nylon sheave pulley block pilot bundled conductor stringing block
Single sheave Nylon Stringing Block
| Item No. | Model | ACSR Size Range (mm²) | Working Load (KN) | Weight (kg) | Material of Sheave |
| 10191 | SHDN-120x30 | 25-70 | 5 | 1.5 | Nylon |
| 10192 | SHDN-160x40 | 70-95 | 10 | 2.4 | |
| 10193 | SHDN-200x40 | 95-120 | 15 | 2.6 | |
| 10194 | SHDN-200x60 | 120-150 | 15 | 3.1 | |
| 10195 | SHDN-250x40 | 120-150 | 20 | 3.7 | |
| 10196 | SHDN-250x60 | 150-180 | 20 | 3.9 | |
| 10197 | SHDN-270x60 | 180-240 | 20 | 4.4 | |
| 10198 | SHDN-320x60 | 240-300 | 20 | 7.5 | |
| 10199 | SHDN-400x80 | 300-400 | 20 | 8 | |
| 10104 | SHDN508 | 300-400 | 20 | 16 | Nylon, optional can be lined with neoprene |
| 10124 | SHDN660 | 400-500 | 20 | 24 | |
| 10131 | SHDN750 | 500-600 | 30 | 32 | |
| 10141 | SHDN822 | 600-700 | 30 | 38 | |
| 10151 | SHDN916 | 700-800 | 50 | 51 | |
| 10165 | SHDN1040 | 800-900 | 50 | 60 |
Application: It is suitable to string stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove.
660MM Overhead Transmission Line Conductor Stringing Blocks
| Item No. | Model | ACSR Size Range (mm²) | Working Load (KN) | Weight (kg) | Material of Sheave |
| 10121 | SHD660 | 400-500 | 20 | 30 | Aluminum alloy |
| 10124 | SHDN660 | 400-500 | 20 | 24 | MC Nylon |
| 10122 | SHS660 | 400-500 | 40 | 106 | Central steel or Nylon sheave, Side sheave Aluminum lined with neoprene |
| 10125 | SHSLN660 | 400-500 | 40 | 92 | |
| 10127 | SHSQN660 | 400-500 | 40 | 76 | MC Nylon |
| 10123 | SHW660 | 400-500 | 60 | 150 | Aluminum Alloy lined with neoprene |
| 10126 | SHWLN660 | 400-500 | 60 | 120 | |
| 10128 | SHWQN660 | 400-500 | 60 | 110 | MC Nylon |
| 10129 | SHQZ660 | 400-500 | 80 | 260 | Central steel, conductor sheave nylon or aluminum alloy |
| 10130 | SHQ660A | 400-500 | 80 | 190 |
