Product Details
Place of Origin: Ningbo China
Brand Name: Lingkai
Certification: ISO CE
Model Number: UHMWPE rope
Payment & Shipping Terms
Minimum Order Quantity: 2000m
Price: get the latest
Packaging Details: Drum, reel, no reel
Delivery Time: 3-10 days
Payment Terms: T/T
Supply Ability: 2000KM PER MONTH
Feature: |
Light, Flexible |
Broken Load: |
High Strength |
Packing: |
In Reel Or Drum Or Nothing |
Certifications: |
ISO 9001, CE |
Usage: |
Lifting, Rigging, Towing |
Type: |
With Brake |
Broken Force: |
290 KN Max |
Number Of Strands: |
12 |
Feature: |
Light, Flexible |
Broken Load: |
High Strength |
Packing: |
In Reel Or Drum Or Nothing |
Certifications: |
ISO 9001, CE |
Usage: |
Lifting, Rigging, Towing |
Type: |
With Brake |
Broken Force: |
290 KN Max |
Number Of Strands: |
12 |

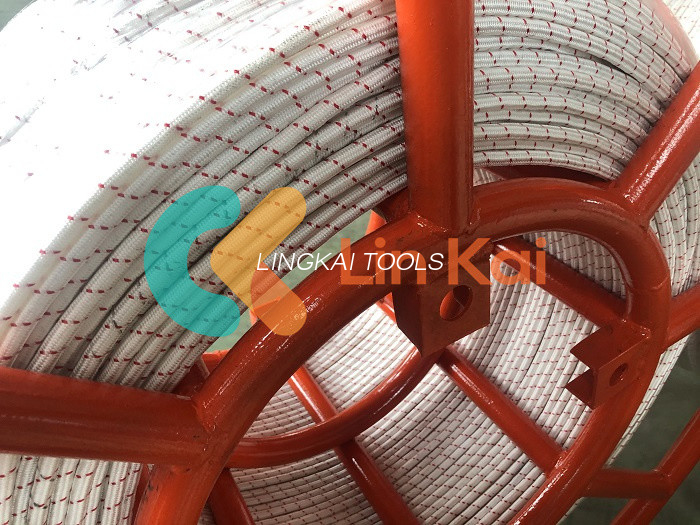

Braided UHMWPE rope for stringing overhead transmission line
Product Description:
Braided UHMWPE rope is made from ultra-high molecular weight polyethylene fiber, which is known for its high strength. It is specially braided to increase its tensile strength and durability. Additionally, it is covered with a protective polyester layer that shields it from damage due to environmental factors such as abrasion, UV rays, and chemicals.
This type of rope is commonly used for overhead transmission line conductor or Optical Ground Wire (OPGW) stringing. Its remarkable strength-to-weight ratio makes it ideal for this application as it can handle the load without being excessively heavy. Braided UHMWPE rope can also be used in live line or hot line pulling, which is a technique used to maintain power transmission while still energized.
On the other hand, High Strength Dupont Rope is made from special polyester fiber that is precisely braided from 12 strands. It also has a protective layer that enhances its resilience to abrasion and impact. This rope is particularly useful as a pilot rope or pulling rope during overhead transmission line stringing operations. Its soft and pliable design allows it to pass through pulleys and make corners smoothly without snagging or breaking.
The High Strength Dupont Rope is an excellent alternative to Braided UHMWPE rope for stringing applications that do not require excessive loads or working at high temperatures. It is resistant to water, mildew, and chemicals, making it suitable for use in a variety of environments.
DOUBLE LAYER BRAIDED UHMWPE ROPE
| Item No. | Nominal diameter (mm) | Breaking Load (KN) | Diameter after covering Polyester (mm) | Net Weight (kg/1000m) | Weight After Covering (kg/1000m) |
| 18170A | 2 | 4.3 | 3 | 2.70 | 4.8 |
| 18170B | 3 | 8.5 | 4.5 | 4.65 | 9.6 |
| 18170D | 4 | 16.6 | 5.5 | 9.31 | 13.5 |
| 18170F | 5 | 24.4 | 7 | 14 | 20 |
| 18170G | 6 | 31.9 | 8 | 20 | 28.2 |
| 18170H | 7 | 43.6 | 9 | 27 | 36 |
| 18170J | 8 | 58.8 | 10 | 35 | 48.4 |
| 18170K | 9 | 70.3 | 11 | 42 | 58.5 |
| 18170L | 10 | 92.5 | 12 | 56 | 77 |
| 18170M | 11 | 115 | 13 | 70 | 97 |
| 18170N | 12 | 137 | 14 | 84 | 113.4 |
| 18170P | 13 | 159 | 15 | 98 | 132 |
| 18170Q | 14 | 180 | 16 | 106 | 150 |
| 18170R | 16 | 211 | 18 | 132 | 177 |
| 18170S | 18 | 296 | 21 | 186 | 247.3 |
The fiber rope can be used for a variety of purposes, including as a pilot rope or pulling rope in overhead transmission line stringing operations. It is also versatile enough to be used for hot line working and helicopter stringing or drone stringing.
For optimal strength and durability, this fiber rope is specially braided from double layer high strength Dupont polyester fiber, which is also anti-twisting and lightweight. In addition to its primary functions as a pilot rope or pulling rope, this rope can also be used for other applications as needed.
For easy transport and storage, the fiber rope comes neatly packed in a convenient steel reel that can be installed directly onto the reel winder of a hydraulic puller. This makes it easy to access and use the rope when needed, and ensures that it remains in good condition for future projects.
Q1. What is the brand name of the Anti Twist Steel Rope product?
A1. The brand name of theBraided UHMWPE rope product is Lingkai.
Q2. What is the model number of the Anti Twist Steel Rope product?
A2. The model number of is Braided UHMWPE rope
Q3. Where is the Anti Twist Steel Rope product manufactured?
A3. The Braided UHMWPE rope product is manufactured in Ningbo China.
Q4. What certifications does the Anti Twist Steel Rope product have?
A4. The Braided UHMWPE rope product has ISO and CE certifications.
Q5. What is the minimum order quantity for the Anti Twist Steel Rope product?
A5. The minimum order quantity for the Braided UHMWPE rope product is 2000m.
Q6. What are the packaging details for the Anti Twist Steel Rope product?
A6. The Braided UHMWPE rope product can be packaged in a drum, reel, or with no reel.
Q7. What is the delivery time for the Anti Twist Steel Rope product?
A7. The delivery time for the Braided UHMWPE rope product is 3-10 days.
Q8. What are the payment terms for the Anti Twist Steel Rope product?
A8. The payment terms for the Braided UHMWPE rope product are T/T.
Q9. What is the supply ability for the Anti Twist Steel Rope product?
A9. The supply ability for the Braided UHMWPE rope product is 2000KM per month.
Q10. What is the price of the Anti Twist Steel Rope product?
A10. Please contact us to get the latest price for the Braided UHMWPE rope product.
