Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: HL
Payment & Shipping Terms
Minimum Order Quantity: 2 pcs
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 pcs / month
Name: |
Hoist Lever Block |
Load: |
3T |
Apply: |
Lifting |
Std Lift: |
1.5m |
Chain: |
1~3 |
Weight: |
7kg |
Name: |
Hoist Lever Block |
Load: |
3T |
Apply: |
Lifting |
Std Lift: |
1.5m |
Chain: |
1~3 |
Weight: |
7kg |

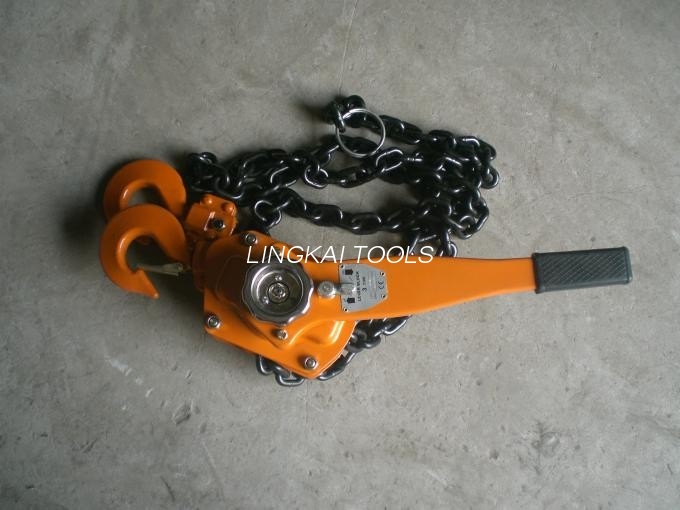

Basic Construction Tools 3 Ton Capacity Lever Chain Hoist Lever Block
Hand Wrenching Chain Tackle Block Features
Small Size Hand Chain 3 Ton Hoist Crane is widely used in shipbuilding, electric power, transportation, construction, mining, telecommunications and other sectors of the equipment installation, lifting, pulling. Hand hoist is safe, reliable, durable, good performance, easy to repair, small volume, light weight, convenient to carry, not much manual force and high efficiency, the perfect structure and beautiful appearance. Hand chain hoist and hoist are called manual hoist. It is used to lift weights by human, and it must not be extended operating handle.In the operating process, the rest handle should be free follow-up but not be blocked. Please select appropriate ton hoist according to the load.
Lever Chain Hoist Lever Block
Basic Construction Tools 3 Ton Capacity Lever Chain Hoist Lever Block
| Capacity(t) | 0.75 | 1 | 1.5 | 2 | 3 | 6 | 9 | |
| Standard Lift(m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Running test load(Kn) | 11 | 15 | 22.5 | 30 | 37.5 | 75 | 112.5 | |
| Effort required to lift rated load(N) | 145 | 150 | 200 | 220 | 280 | 310 | 320 | |
| Strands of load chain | 1 | 1 | 1 | 1 | 1 | 2 | 3 | |
| stands of load chain(mm) | 6 | 6 | 7.1 | 8 | 10 | 10 | 10 | |
| Dimensions(mm) | A | 95 | 95 | 90 | 100 | 100 | 110 | 110 |
| B | 60 | 60 | 65 | 65 | 80 | 80 | 80 | |
| C | 135 | 135 | 145 | 145 | 195 | 250 | 335 | |
| D | 255 | 255 | 365 | 365 | 365 | 365 | 365 | |
| E | 24 | 24 | 31 | 31 | 34 | 43 | 55 | |
| L | 300 | 300 | 365 | 365 | 440 | 575 | 700 | |
| Net Weight | 7 | 7 | 10 | 12 | 18 | 28.5 | 45 | |
| Extra weight of per metre of extra lift(Kg) | 0.8 | 0.8 | 1.1 | 1.4 | 2.2 | 4.4 | 6.6 | |
Introduction:Basic Construction Tools 3 Ton Capacity Lever Chain Hoist Lever Block
1. Hook:made of high-class alloy steel,it has high strength and high security.
2. Components:main components are all made of high-class alloy steel,with high precision and security.
3. Framework: slight design and more beautiful; with less weight and smaller work area.
4. Plastic Plating: by adopting advanced plastic plating technology inside and outside,it looks like a new one after years of operation.
5. Encloser made of high-classed steel,more firmly and dexterous.
