Product Details
Place of Origin: NINGBO
Brand Name: Lingkai
Certification: ISO
Model Number: HSH-CII1.5 HSH-CII3.0 HSH-CII6.0
Payment & Shipping Terms
Minimum Order Quantity: 2 sets
Price: get the latest price
Packaging Details: wooden case packing
Delivery Time: 3-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20000 sets/month
Max. Working Load: |
9 Tons |
No. Of Chains: |
One Or Two |
Max. Length Of Chain: |
5 Meter |
Packing: |
Plywood Case |
Weight Of Ratchet Hoist: |
7-49 Kg |
Description: |
Lever Block Ratchet Chain Hoist |
Max. Working Load: |
9 Tons |
No. Of Chains: |
One Or Two |
Max. Length Of Chain: |
5 Meter |
Packing: |
Plywood Case |
Weight Of Ratchet Hoist: |
7-49 Kg |
Description: |
Lever Block Ratchet Chain Hoist |
Applicatoin Apply to lifting parts and traction. Tigntening steel stranded wire, aluminum stranded wire and kind wires.

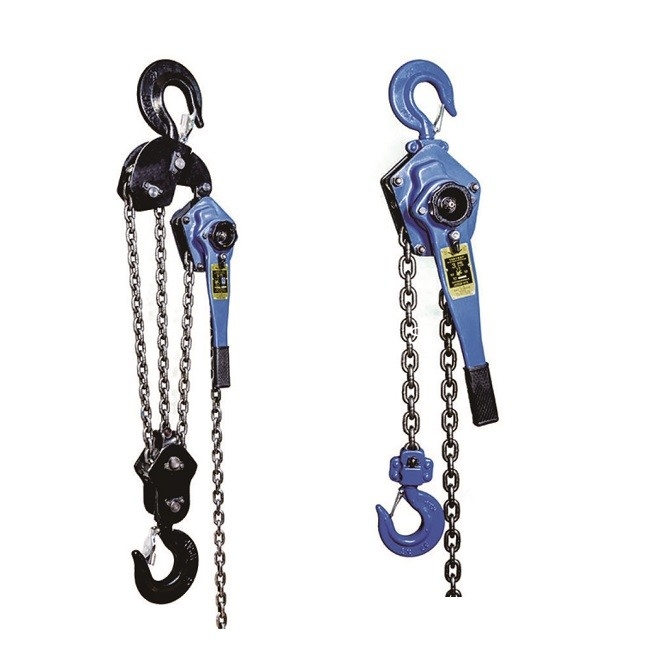

Ratchet Lever Hoist with Chain
| MODEL | HSH-CII1.5 | HSH-CII3 | HSH-CII6 | |
| Item No. | 14222 | 14232 | 14242 | |
| CAPACITY (TONS) | 1.5 | 3 | 6 | |
| STANDARD LIFT (M) | 3 | 3 | 3 | |
| RUNNING TEST LOAD (KN) | 22.5 | 37.5 | 75.0 | |
| EFFORT REQUIRED TO LIFT RATED LOAD (N) | 220 | 320 | 340 | |
| STRAND NO. OF LOAD CHAIN | 1 | 1 | 2 | |
| LOAD CHAIN DIAMETER (MM) | 8 | 10 | 10 | |
| DIMENSIONS (MM) | A | 203 | 215 | 200 |
| B | 118 | 130 | 130 | |
| C | 155 | 200 | 200 | |
| D | 45 | 50 | 64 | |
| H | 380 | 480 | 600 | |
| L | 370 | 410 | 410 | |
| K | 36 | 40 | 50 | |
| NET WEIGHT (KG) | 11.8 | 21 | 32 | |
| PACK MEASUREMENT (MM) | 46.5X15.5X19 | 51X19X21.5 | 53X22X21.5 | |
| EXTRA WEIGHT OF PER METER | 1.4 | 4.4 | ||
Application: It is used to lift goods or pulling the conductors during the sagging operation.
Features:
1. Solid Bearing is adopted in the joint of load sprocket wheel and wall panel, to improve the flexibility and working efficiency.
2. Needle bearing is adopted in the joint of major axis and load sprocket wheel, to improve the flexibility and working efficiency.
3. The bottom hook can swivel 360 degrees freely under load.
4. Unique Overload Protection: Uni-directional free wheel device to ensure the smooth descent of the hoist.
Hand Operated Chain Hoists
| Item No. | Chain length 1.5m | 14191 | 14201 | 14211 | 14221 | 14231 | 14241 |
| Chain length 3m | 14192 | 14202 | 14212 | 14222 | 14232 | 14242 | |
| Chain length 4m | 14193 | 14203 | 14213 | 14223 | 14233 | 14243 | |
| Chain length 5m | 14194 | 14204 | 14214 | 14224 | 14234 | 14244 | |
| Model HSH-CII | 0.25 | 0.5 | 0.75 | 1.5 | 3 | 6 | |
| Rated Load (KN) | 2.5 | 5 | 7.5 | 15 | 30 | 60 | |
Application: It is used with conductor grips to tension conductors.
Chain Hoists
| Item No. | Chain length 2.5 m | 14281 | 14291 | 14301 | 14311 |
| Chain length 3 m | 14282 | 14292 | 14302 | 14312 | |
| Chain length 4 m | 14283 | 14293 | 14303 | 14313 | |
| Chain length 5 m | 14284 | 14294 | 14304 | 14314 | |
| Chain length 6 m | 14285 | 14295 | 14305 | 14315 | |
| Chain length 8 m | 14286 | 14296 | 14306 | 14316 | |
| Chain length 10 m | 14287 | 14297 | 14307 | 14317 | |
| Chain length 12 m | 14288 | 14298 | 14308 | 14318 | |
| Model | HS-0.5A | HS-1A | HA-1.5A | HS-2A | |
| Rated Load (KN) | 5 | 10 | 15 | 20 | |
| Min. Distance between Hooks (mm) | 280 | 320 | 390 | 410 | |
| Item No. | Chain length 3 m | 14321 | 14331 | 14341 | 14351 |
| Chain length 4 m | 14322 | 14332 | 14342 | 14352 | |
| Chain length 5 m | 14323 | 14333 | 14343 | 14353 | |
| Chain length 6 m | 14324 | 14334 | 14344 | 14354 | |
| Chain length 8 m | 14325 | 14335 | 14345 | 14355 | |
| Chain length 10 m | 14326 | 14336 | 14346 | 14356 | |
| Chain length 12 m | 14327 | 14337 | 14347 | 14357 | |
| Model | HS-3A | HS-5A | HA-10A | HS-20A | |
| Rated Load (KN) | 30 | 50 | 100 | 200 | |
| Min. Distance between Hooks (mm) | 485 | 600 | 820 |
1040 |
|
Package
1. The equipment and tools will be loaded in plywood case.
2. It also can be packed in steel frame case or wooden case.
