Product Details
Place of Origin: NINGBO CHINA
Brand Name: LINGKAI
Certification: ISO
Model Number: ZN50
Payment & Shipping Terms
Minimum Order Quantity: 5 SETS
Price: get the latest
Packaging Details: wooden case packing
Delivery Time: 3-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets/month
Dimension (mm) L X W X H: |
285x130x231 |
Brake Force (N): |
70 |
Wire Size Range (mm): |
Max 16 |
Weight: |
3kgs |
Dimension (mm) L X W X H: |
285x130x231 |
Brake Force (N): |
70 |
Wire Size Range (mm): |
Max 16 |
Weight: |
3kgs |

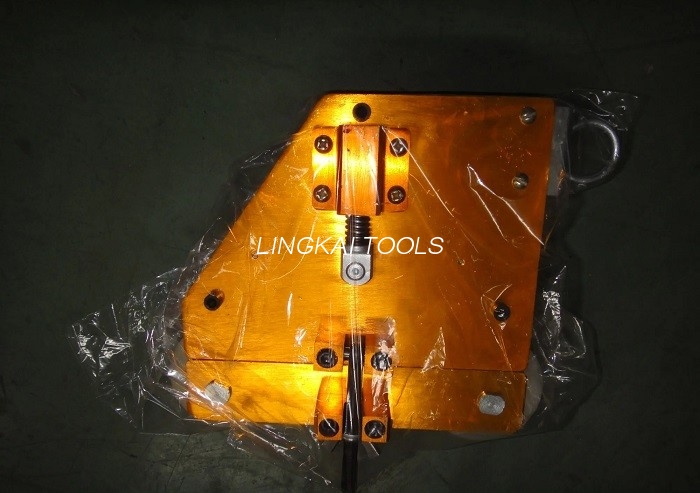

OPGW Recover roller machine is used with Mobile Traction Machine,
double sheave support pulleys and fiber ropes for installation of OPGW cable on hot transmissin line.
The product is equipped spring brake system for easy usage.
Recover Machine
| Item No. | Model | Wire Size Range (mm) | Brake Force (N) | Weight (kg) | Dimension (mm) L x W x H |
| 20122 | ZN350 | Max. 16 | 70 | 3 | 285x130x231 |
Application: It is used to recover the guide rope and double pulley rollers after OPGW stringing operations.
The spring brake system make the guide rope tighten to prevent it touching the hot transmission line.
Mobile Space Traction Machine
| Item No. | Model | Wire Size Range (mm) | Running Speed (m/min) | Climbing Angle | Horizontal Tensile Strength (N) |
| 20121 | ZZC350 | 9-26 | 17 | 31º | 350 |
Weight: 46.5 Kg. Dimension: 447x488x763 mm.
Remote Control distance: 300-500m.
Petrol Engine Model: YK950/650W.
Electric Motor: 100YYJ140-3 (140W)
Application: It is used to deliver guide rope and double pulley rollers from one steel tower to another,
running on earth wire by self-driving system.
