Product Details
Place of Origin: NINGBO CHINA
Brand Name: LINGKAI
Certification: ISO
Model Number: SLE-1.5
Payment & Shipping Terms
Minimum Order Quantity: 10 SETS
Price: get the latest
Packaging Details: wooden case packing
Delivery Time: 3-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50000 sets/month
Head: |
Single /double |
Cable Diameter (mm): |
Max 18-22mm |
Material: |
Galvanized Steel Wire |
Name: |
Socket Joint |
Head: |
Single /double |
Cable Diameter (mm): |
Max 18-22mm |
Material: |
Galvanized Steel Wire |
Name: |
Socket Joint |

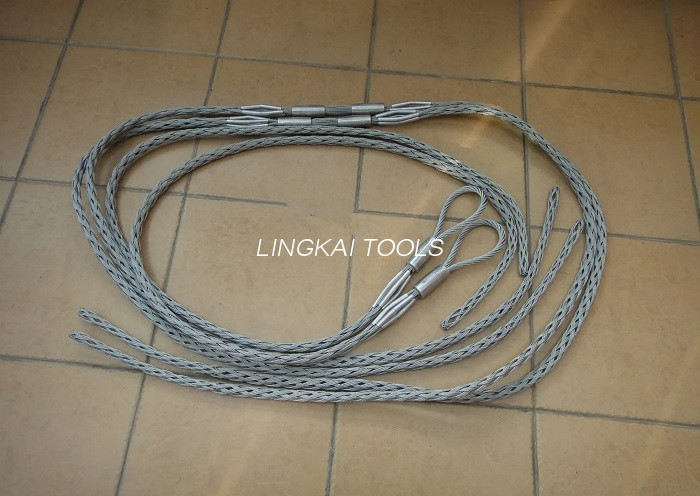

OPGW Socket Joints are used for pulling or installation of OPGW cable or GSW cable in transmission line stringing operation.
It is braided from high strength galvanized steel wire.
MESH SOCKET JOINTS FOR OPGW AND EARTH WIRE
| Single head Item No. | Double head Item No. | Model | Cable Diameter (mm) | Load (KN) | |
| With protector | w/ protector | Rated | Break | ||
| 17141 | 17141S | SLE(S)-1 | Φ 7-11 | 10 | 30 |
| 17142 | 17142S | SLE(S)-1.5 | Φ 11-15 | 15 | 45 |
| 17143 | 17143S | SLE(S)-2 | Φ 15-18 | 20 | 60 |
| 17144 | 17144S | SLE(S)-2.5 | Φ 18-22 | 25 | 75 |
Application: It is used to grip OPGW or GSW in line stringing operation,
the product is specially braided from high strength galvanized steel wire.
It could pass through the stringing blocks and tension wheel.
The Mesh Socket joints are made of high strength galvanized steel wire,
braided in very soft ways and pressed with protection aluminum sleeve and copper sleeve.
The sleeve could protect the conductor, and prevent the head of OPGW to damage the Mesh Socket Joints.
