Product Details
Place of Origin: NINGBO
Brand Name: Lingkai
Certification: ISO CE
Model Number: SHD,SHDN,SHSQN,SHWQN,SHSLN,SHWLN
Payment & Shipping Terms
Minimum Order Quantity: 50
Price: Get the latest
Packaging Details: Containers
Delivery Time: 5-20days
Payment Terms: T/T L/C
Supply Ability: 1000 sets one month
Warranty: |
1 Year |
Product Name: |
Transmission Stringing Blocks |
Sheave Diameter: |
660*560*110mm |
Sheave Width: |
110mm |
Traction Force: |
20kN-75kN |
Weight: |
30kg-200kg |
Sheave Number: |
1-7 |
Material: |
MC Nylon/Aluminum Alloy/Cast Steel |
Warranty: |
1 Year |
Product Name: |
Transmission Stringing Blocks |
Sheave Diameter: |
660*560*110mm |
Sheave Width: |
110mm |
Traction Force: |
20kN-75kN |
Weight: |
30kg-200kg |
Sheave Number: |
1-7 |
Material: |
MC Nylon/Aluminum Alloy/Cast Steel |
Transmission Stringing Blocks are designed to provide a safe and effective means for stringing overhead conductors. These blocks feature a sheave diameter of 660*560*110mm, and are composed of MC Nylon, Aluminum Alloy, and Cast Steel materials. With a sheave number of 1-7, this product is reliable for a variety of applications. We offer a one-year warranty for our Transmission Stringing Blocks, and guarantee that it will help you to optimize the stringing process.
| Item Number | Model | Number of Sheave | Rated Load (kN) | Weight (kg) | Features |
| 10121 | SHD660 | 1 | 20 | 30 | Rubber coated aluminum sheave |
| 10122 | SHS660 | 3 | 40 | 106 | Middle: cast steel sheave with the width of 90mm Conductor: rubber coated aluminum sheave |
| 10123 | SHW660 | 5 | 60 | 150 | |
| 10124 | SHDN660 | 1 | 20 | 24 | MC nylon sheave |
| 10125 | SHSLN660 | 3 | 40 | 92 | Middle: MC nylon sheave Conductor: rubber coated aluminum sheave |
| 10126 | SHWLN660 | 5 | 60 | 120 | |
| 10127 | SHSQN660 | 3 | 40 | 76 | MC nylon sheave |
| 10128 | SHWQN660 | 5 | 60 | 110 | |
| 10129 | SHQZ660 | 7 | 80 | 268 | Middle: cast steel sheave Conductor: rubber coated aluminum sheave |
| 10130 | SHQ660A | 7 | 75 | 190 | Middle: cast steel sheave Conductor: MC nylon sheave |
These items are very sturdy and long-lasting, made of top-of-the-line MC Nylon, accompanied by 8# steel frames highly galvanized. The bearings used are of imported origin. Furthermore, the nylon material is derived from a USA raw material which has 96% purity, and is water-proof, rot-proof, and fire-proof.
Combining these features makes these items extremely safe and durable, remaining unharmed against even the harshest elements.
| Property | Technical Parameter |
|---|---|
| Product Name | Transmission Stringing Blocks |
| Capacity | 50kN-200kN |
| Weight | 30kg-200kg |
| Material | MC Nylon/Aluminum Alloy/Cast Steel |
| Sheave Diameter | 660*560*110mm |
| Sheave Width | 110mm |
| Warranty | 1 Year |
| Sheave Number | 1-7 |
| Traction Force | 20kN-75kN |

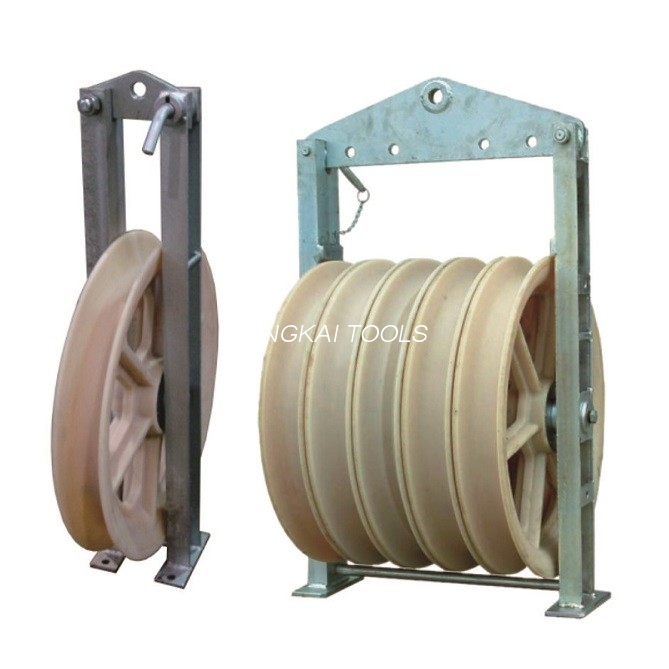

The Stringing Block is equipped with a 660-mm-diameter MC nylon sheave, and its maximum applicable conductor is ACSR630, for stringing overhead line conductor.
The MC nylon sheave is made with advanced materials, ensuring its high strength as well as excellent wear resistance. It is available in numerous sizes and features a tolerance of up to 0.1%. As a result, the sheave ensures a correct and reliable operation in every stringing application.
This Stringing Block is ideal for heavy duty conductor stringing operations under extremeweatherconditions. It is always reliable with its durable construction and maintains a long service life.
We provide technical support and services for our Transmission Stringing Blocks, including:
