Product Details
Place of Origin: NINGBO
Brand Name: Lingkai
Certification: ISO CE
Model Number: SHD,SHDNZ,SHSQNZ,SHWQNZ,SHSLNZ,SHWLN
Payment & Shipping Terms
Minimum Order Quantity: 50
Price: Get the latest
Packaging Details: Containers
Delivery Time: 5-20days
Payment Terms: T/T L/C
Supply Ability: 1000 sets one month
Traction Force: |
40-180KN |
Material: |
MC Nylon/Aluminum Alloy |
Warranty: |
1 Year |
Weight: |
61-320kgs |
Sheave Number: |
3,5 |
Product Name: |
Helicopter Stringing Blocks |
Sheave Diameter: |
508,660,822, |
Capacity: |
50kN-200kN |
Traction Force: |
40-180KN |
Material: |
MC Nylon/Aluminum Alloy |
Warranty: |
1 Year |
Weight: |
61-320kgs |
Sheave Number: |
3,5 |
Product Name: |
Helicopter Stringing Blocks |
Sheave Diameter: |
508,660,822, |
Capacity: |
50kN-200kN |
The pulleys are designed to facilitate the stringing of the pilot rope by an helicopter. The central wheel guarantees the precise positioning of the rope, which is backed up by special guides. Additionally, the wheels of these pulleys are made of aluminium alloy and are mounted on ball bearings.
The lateral wheels have grooves lined with neoprene rings, whereas the central wheel's grooves are made of wear-proof interchangeable nylatron sectors. The frame is made of galvanized steel and the pulleys are supplied with a fixed connection. Grounding device or complete conductive sheaves can also be provided upon request.

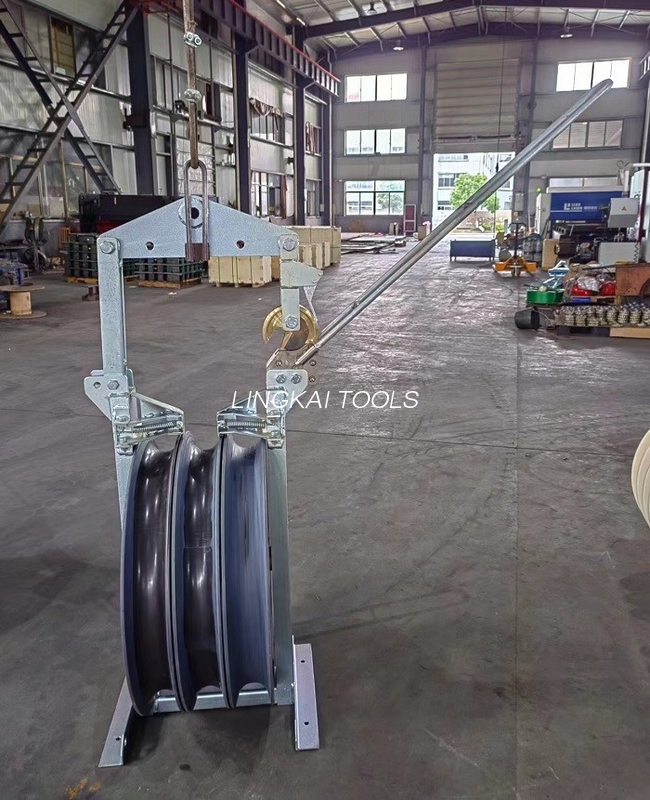

Five sheaves Helicopter Stringing Blocks
| Item No. | Model | ACSR Size Range (mm²) | Working Load (KN) | Weight (kg) | Material of Sheave |
| 10103H | SH5ZL508 | 300-400 | 60 | 93 | Central steel or Nylon sheave, Side sheave Aluminum lined with neoprene |
| 10106H | SH5ZLN508 | 300-400 | 60 | 79 | |
| 10123H | SH5ZL660 | 400-500 | 60 | 150 | |
| 10126H | SH5ZLN660 | 400-500 | 60 | 120 | |
| 10108H | SH5Z508 | 300-400 | 60 | 70 | Nylon, optional can be lined with neoprene |
| 10128H | SH5Z660 | 400-500 | 60 | 110 | |
| 10133H | SH5Z750 | 500-600 | 80 | 128 | |
| 10143H | SH5Z822 | 600-700 | 120 | 156 | |
| 10153H | SH5Z916 | 700-800 | 150 | 192 | |
| 10167H | SH5Z1040 | 800-900 | 180 | 320 |
Application: It is suitable to string FOUR or FIVE stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in aluminum alloy or high strength nylon. The big size 508mm, 660mm aluminum alloy sheave can be lined with neoprene. The big size 660mm, 822mm, 916mm, 1040mm nylon sheave can be lined with neoprene.
The central sheave is specially strengthened for passage of pilot wire rope.
Three sheaves Helicopter Stringing Blocks
| Item No. | Model | ACSR Size Range (mm²) | Working Load (KN) | Weight (kg) | Material of Sheave |
| 10102H | SH3Z508 | 300-400 | 40 | 61 | Central steel or Nylon sheave, Side sheave Aluminum lined with neoprene |
| 10105H | SH3ZL508 | 300-400 | 40 | 47 | |
| 10122H | SH3ZL660 | 400-500 | 40 | 106 | |
| 10125H | SH3ZLN660 | 400-500 | 40 | 92 | |
| 10146H | SH3ZLN822 | 500-700 | 60 | 128 | |
| 10107H | SH3Z508 | 300-400 | 40 | 43 | Nylon, optional can be lined with neoprene |
| 10127H | SH3Z660 | 400-500 | 40 | 76 | |
| 10132H | SH3Z750 | 500-600 | 60 | 98 | |
| 10142H | SH3Z822 | 600-700 | 60 | 110 |
It is suitable to string TWO, THREE, FOUR or FIVE stranded aluminum and ACSR conductors along tangent structures. Through the grooves, we can pass compression sleeves, swivel connectors and pulling rope connectors.
We specialize in customized Overhead Conductor blocks, Transmission Connector Blocks, Stringing pulley blocks, Helicopter Stringing Blocks. All of our products are certified with ISO CE and guaranteed with 1 year warranty.
Packaging and Shipping for Transmission Stringing Blocks:
Each Transmission Stringing Block is packaged in a cardboard box with a foam insert to ensure protection during shipping. Packaging and shipping costs are calculated according to the weight and size of the package, the destination, and the shipping method chosen.
