Product Details
Place of Origin: China
Brand Name: Lingkai
Certification: ISO CE
Model Number: QY25,45,65,125,200,300
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: get the latest price
Packaging Details: packed inwto wooden case
Delivery Time: 3-7 workingdays
Supply Ability: 1000sets/month
Stroke (mm): |
22-35 |
Max. Compression Force: |
25T-300T |
Application: |
Crimping ACSR |
Die Set: |
16-400mm2 |
Weight: |
6~126kgs |
Max. ACSR Size (mm²): |
240,500,720,1440,2500 |
Max. Hydraulic Pressure (MPa): |
70,94 |
Max. Crimping Force: |
300tons |
Stroke (mm): |
22-35 |
Max. Compression Force: |
25T-300T |
Application: |
Crimping ACSR |
Die Set: |
16-400mm2 |
Weight: |
6~126kgs |
Max. ACSR Size (mm²): |
240,500,720,1440,2500 |
Max. Hydraulic Pressure (MPa): |
70,94 |
Max. Crimping Force: |
300tons |
A motorized hydraulic pump is utilized in conjunction with the hydraulic compressor head for compressing conductor joints or earth wire joints. Its casting is made of high strength steel.
For ACSR conductor jointing on overhead transmission line stringing, a Hydraulic Press Machine with motorised hydraulic pump is utilized.

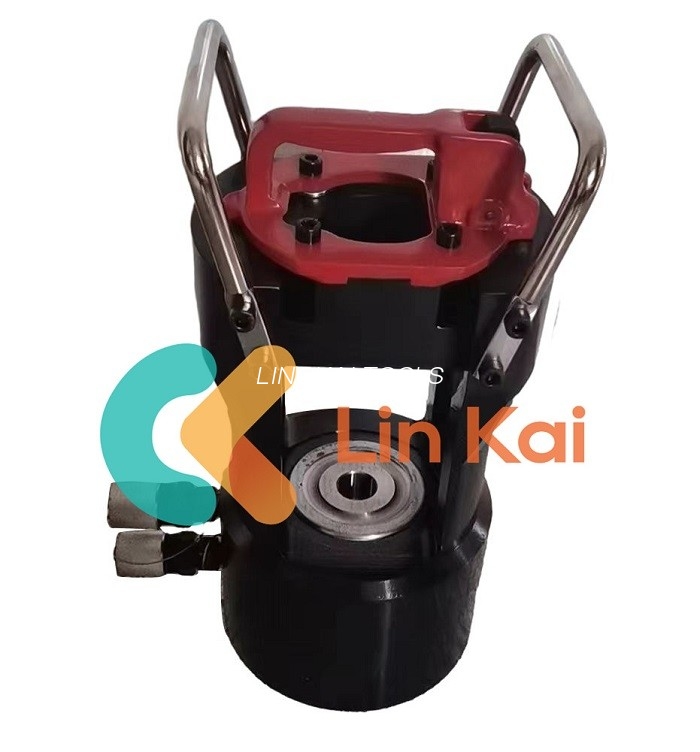

Acsr Conductor Jointing Compressor Machine data sheet
| Item No. | Model | Max. Compression Force (KN) | Max. Hydraulic Pressure (MPa) | Max. ACSR Size (mm²) | Stroke (mm) | Weight (kg) |
| 16101 | QY-25 | 250 | 70 | 240 | 22 | 6 |
| 16102 | QY-45 | 450 | 70 | 240 | 25 | 12 |
| 16103 | QY-65 | 650 | 94 | 500 | 25 | 25 |
| 16104 | QY-125 | 1250 | 94 | 720 | 25 | 40 |
| 16105 | QY-200 | 2000 | 94 | 1440 | 25 | 85 |
| 16106A | QY-300 | 3000 | 94 | 2500 | 35 | 126 |
Application: For compressing conductor joints or earth wire joints, a motorized hydraulic pump is utilized in conjunction with the hydraulic compressor head. High strength steel is used in its casting.
High Pressure Hydraulic Pump Station (Model: YBG-94WQ)
| Item No. | Description | Hydraulic Pressure (MPa) | Oil Flow (L/min) | Power (HP) | Weight (kg) |
| 16146 | Gasoline motor driven hydraulic pump station mounted on hand cart | 80 | 11.02-2.05 | 5.0 | 55 |
It should be noted that the pump stations simply supply electricity to other devices or hydraulic compressors. The Honda GX160 is the gasoline engine.
A normal hydraulic hose is three meters long. Extended Hose is not required.
Hexagon Compression Die sets
| Item No. | Matching Compressor | Specification of Hexagonal Die Set (Outer Diameter of Compression terminal, L for Aluminum compression terminal, G for steel terminal) |
| 16121 | QY-25 | Copper or Aluminum Terminators 16-240mm2 |
| 16122 | QY-35 | L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36 mm |
| 16123 | QY-65 | L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
| 16124 | QY-125 | L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
| 16125 | QY-200 | L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80 mm G -12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 mm |
| 16126 | QY-300 | L - 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80,95,100 mm G -16, 18, 20, 22, 24, 26, 28, 30, 32,34,36,38,42,44,45,48,50 mm |
Note: the Hexagonal Die sets could be made according to the requirement of customer.
Hydraulic compression tools are specialized equipment that are used for crimping overhead tension sleeves on high voltage transmission lines of 110KV and above. These tools operate through the use of hydraulic pressure to crimp the sleeve onto the wire, ensuring a secure and lasting connection. The tools are designed specifically for use in high voltage power applications, where safety and reliability are of utmost importance.
In addition to overhead tension sleeves, hydraulic compression tools can also be used for underground cable connecting. This makes them versatile and essential tools for power transmission and distribution companies, as well as contractors who work on power infrastructure projects.
The design of hydraulic compression tools is optimized for ease of use and efficiency. They are typically lightweight and compact, making them easy to transport and maneuver in tight spaces. They are also engineered to withstand the rigors of heavy use, ensuring that they can deliver reliable performance over longer periods of time.
Overall, hydraulic compression tools play a critical role in the safe and efficient operation of high voltage power transmission systems. With their advanced capabilities and cutting-edge design, they are an essential investment for any company or contractor that works with high voltage power lines and cables.
With models such as the QY25, QY45, QY65, QY125, QY200, and QY300, our crimping tools are of the highest quality and come straight from China. Perfectly designed for crimping ACSR conductors, they boast a max hydraulic pressure of 70 MPa or 94 MPa, depending on the model you choose.
Our Hydraulic Conductor Press Machine is perfect for ACSR conductor jointing, while our Hydraulic Conductor Compressor Machine is ideal for compressing ACSR conductors. With a max crimping force of 300 tons, these machines can handle even the toughest jobs.
Don't hesitate to take advantage of our customization services and tailor your Lingkai Hydraulic Crimping Tool to your specific needs. Contact us today to learn more about how we can help you.
The Hydraulic Crimping Tool is a durable and reliable tool designed for crimping a variety of connectors and terminals. To ensure optimal performance and longevity of your tool, please read and follow the instructions in the user manual carefully.
If you experience any issues with your Hydraulic Crimping Tool, our technical support team is available to assist you. Please have your tool's model number and any relevant information about the issue ready when you contact us. Our team can help troubleshoot the issue and provide guidance on any necessary repairs or replacements.
In addition to technical support, we offer a range of services to help maintain and repair your Hydraulic Crimping Tool. These services include:
For more information on our services or to schedule maintenance or repair for your Hydraulic Crimping Tool, please contact our customer service team.
