Ningbo Lingkai Electric Power Equipment Co., Ltd. nbtransmission@163.com 86--15958291731
Product Details
Place of Origin: China
Brand Name: Lingkai
Certification: ISO CE
Model Number: QY25,45,65,125,200,300
Payment & Shipping Terms
Minimum Order Quantity: 1SET
Price: get the latest
Packaging Details: packed into wooden case
Delivery Time: 3-7 workingdays
Stroke (mm): |
22-35 |
Application: |
Crimping ACSR |
Max. Compression Force: |
25T-300T |
Weight: |
6~126kgs |
Use: |
Compressor |
Max. Hydraulic Pressure (MPa): |
70,94 |
Max. ACSR Size (mm²): |
240,500,720,1440,2500 |
Die Set: |
16-400mm2 |
Stroke (mm): |
22-35 |
Application: |
Crimping ACSR |
Max. Compression Force: |
25T-300T |
Weight: |
6~126kgs |
Use: |
Compressor |
Max. Hydraulic Pressure (MPa): |
70,94 |
Max. ACSR Size (mm²): |
240,500,720,1440,2500 |
Die Set: |
16-400mm2 |
When it comes to compressing conductor joints or earth wire joints, the most efficient method is to use a hydraulic press machine. In this case, the machine is equipped with a motorized hydraulic pump which works in conjunction with the hydraulic compressor head to ensure optimal results. It is worth noting that the casting of the hydraulic press machine is constructed using high-strength steel to improve durability and performance.
The hydraulic press machine with a motorized hydraulic pump is an ideal solution for ACSR conductor jointing on overhead transmission line stringing. This is because it provides the necessary level of pressure needed to compress the joints effectively. The motorized hydraulic pump provides a consistent flow of hydraulic pressure, which allows for precision during the jointing process.

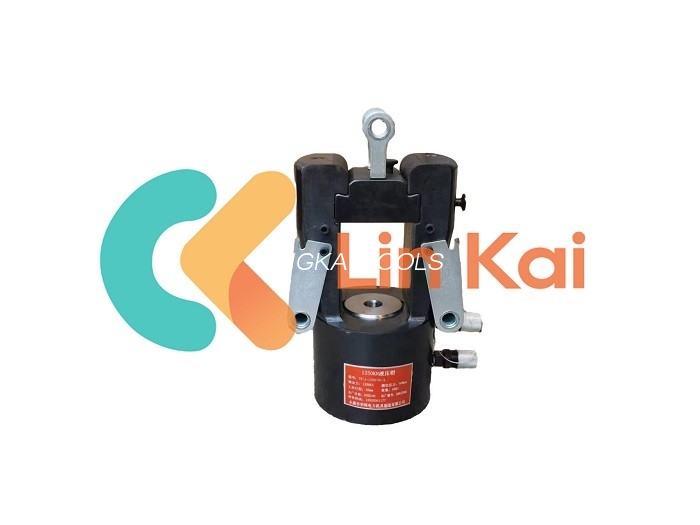

Hydraulic Press Machine with Motorized pump for ACSR conductor jointing
data sheet
| Item No. | Model | Max. Compression Force (KN) | Max. Hydraulic Pressure (MPa) | Max. ACSR Size (mm²) | Stroke (mm) | Weight (kg) |
| 16101 | QY-25 | 250 | 70 | 240 | 22 | 6 |
| 16102 | QY-45 | 450 | 70 | 240 | 25 | 12 |
| 16103 | QY-65 | 650 | 94 | 500 | 25 | 25 |
| 16104 | QY-125 | 1250 | 94 | 720 | 25 | 40 |
| 16105 | QY-200 | 2000 | 94 | 1440 | 25 | 85 |
| 16106A | QY-300 | 3000 | 94 | 2500 | 35 | 126 |
High Pressure Hydraulic Pump Station (Model: YBG-94WQ)
| Item No. | Description | Hydraulic Pressure (MPa) | Oil Flow (L/min) | Power (HP) | Weight (kg) |
| 16146 | Gasoline motor driven hydraulic pump station mounted on hand cart | 80 | 11.02-2.05 | 5.0 | 55 |
It should be noted that the pump stations simply supply electricity to other devices or hydraulic compressors. The Honda GX160 is the gasoline engine.
A normal hydraulic hose is three meters long. Extended Hose is not required.
Hexagon Compression Die sets
| Item No. | Matching Compressor | Specification of Hexagonal Die Set (Outer Diameter of Compression terminal, L for Aluminum compression terminal, G for steel terminal) |
| 16121 | QY-25 | Copper or Aluminum Terminators 16-240mm2 |
| 16122 | QY-35 | L – 16, 18, 20, 22, 24, 26, 30, 32, 34, 36 mm |
| 16123 | QY-65 | L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
| 16124 | QY-125 | L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60 mm G -12, 14, 16, 18, 20, 22, 24, 26 mm |
| 16125 | QY-200 | L - 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80 mm G -12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32 mm |
| 16126 | QY-300 | L - 30, 32, 34, 36, 38, 40, 45, 50, 52, 55, 60, 65, 70, 75, 80,95,100 mm G -16, 18, 20, 22, 24, 26, 28, 30, 32,34,36,38,42,44,45,48,50 mm |
Note: the Hexagonal Die sets could be made according to the requirement of customer.
Hydraulic compression tools are specifically designed for crimping overhead tension sleeves on power lines with a voltage of 110KV or higher. These tools are essential for ensuring a secure and long-lasting connection between power line components.
In addition to overhead power lines, hydraulic compression tools are also ideal for underground cable connecting. Their precision and accuracy make them perfect for use in scenarios where a strong and reliable connection is crucial.
The crimping process, performed by hydraulic compression tools, involves pressing two metal components together to form a solid and reliable connection. This process is made possible by the use of hydraulic pressure, which allows a high degree of control over the crimping force applied to the components.
Overall, hydraulic compression tools are an essential piece of equipment for all power line maintenance and installation professionals. Without the use of these tools, the safety, reliability, and longevity of a power line could be compromised.
Our Hydraulic Crimping Tool is designed to provide reliable and efficient crimping for a variety of applications. We offer technical support and services to ensure that your tool is functioning properly and to assist with any issues that may arise. Our team of experts can provide troubleshooting assistance, repair services, and replacement parts to keep your Hydraulic Crimping Tool in top condition. Additionally, we offer training and education resources to help you get the most out of your tool and to ensure proper and safe usage. Contact us for more information on our technical support and services.
Product Packaging:
The hydraulic crimping tool will be packed in a sturdy cardboard box with foam padding to ensure safe transportation.
Shipping:
We offer free shipping for this product within the United States. International shipping rates may vary and will be calculated at checkout. The estimated delivery time is 5-7 business days for domestic orders and 7-14 business days for international orders.
What is the brand name of this hydraulic crimping tool?
Answer: The brand name of this hydraulic crimping tool is Lingkai.
What are the different models available for this hydraulic crimping tool?
Answer: The different models available are QY25, QY45, QY65, QY125, QY200, and QY300.
Where is this hydraulic crimping tool manufactured?
Answer: This hydraulic crimping tool is manufactured in China.
What is the maximum crimping force of this hydraulic crimping tool?
Answer: The maximum crimping force of this hydraulic crimping tool varies based on the model. The QY25 has a maximum crimping force of 60KN, QY45 has 80KN, QY65 has 120KN, QY125 has 160KN, QY200 has 250KN, and QY300 has 300KN.
What is the warranty for this hydraulic crimping tool?
Answer: The warranty for this hydraulic crimping tool is not included in this Q and A as per the instructions.
