Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SHDN
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: Carton
Delivery Time: 10 days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 pcs / month
Name: |
Single Sheave Stringing Block |
Material: |
Nylon |
Use: |
Protect Cable |
Appication: |
Stringing |
Rated Load: |
30~*0KN |
Size: |
200*60mm |
Name: |
Single Sheave Stringing Block |
Material: |
Nylon |
Use: |
Protect Cable |
Appication: |
Stringing |
Rated Load: |
30~*0KN |
Size: |
200*60mm |
Single Sheave Cable Pulling Pulley with Hook for Stringing Cable Conductor
Introduction:Single Sheave Cable Pulling Pulley with Hook for Stringing Cable Conductor
Our single Sheave Pulley ,sheave pulley block, and stringing pulley block is divided into hook, clevis, and other types. The specified type must be clearly indicated in the order form. We can customize the product with special specifications. In the following table, the data of model refers to the outer diameter of sheave × width of sheave (mm).
Features:Single Sheave Cable Pulling Pulley with Hook for Stringing Cable Conductor
1. Good wear-resistance,no deformation,long life cycle and so on.
2. We are an OEM supplier specializing in varous casting,forgings and machining
3. The quality of our products have all passed the international standards.
4. The processed products are exported to Asia, Europe, Africa, the United States and other countries.
Application:Single Sheave Cable Pulling Pulley with Hook for Stringing Cable Conductor
Power and communication cables are often laid in open trenches where the road and ground conditions result in the cable route having a number of curves. With the cable’s own weight and the high tensions involved the cable cannot be fed cleanly.
We manufacture a lot of models Cable pulling block for different uses in the overheadtransmission lineconstruction.They have are used to support conductors, OPGW,ADSS, communication lines.
Data Details:Single Sheave Cable Pulling Pulley with Hook for Stringing Cable Conductor
| Item Number | Model | Suitable Conductor | Rated Load (kg) | Weight (kg) | Remark |
| 10191 | SHDN-120×30 | LGJ25~70 | 5 | 1.5 | Nylon sheave |
| 10192 | SHDN-160×40 | LGJ95~120 | 10 | 2.5 | |
| 10193 | SHDN-200×40 | LGJ150~240 | 15 | 3.6 | |
| 10194 | SHDN-200×60 | LGJ150~240 | 15 | 4 | |
| 10196 | SHDN-250×60 | LGJ300~400 | 20 | 4.5 | |
| 10197 | SHDN-270×60 | LGJ300~400 | 20 | 5.6 | |
| 10198 | SHDN-320×60 | LGJ300~400 | 20 | 6.7 | |
| 10199 | SHDN-400×80 | LGJ400~500 | 20 | 13 |
Notes:Single Sheave Cable Pulling Pulley with Hook for Stringing Cable Conductor
Different type have diffeent specifications:
This is only part of the specification, we can do it according to your request.

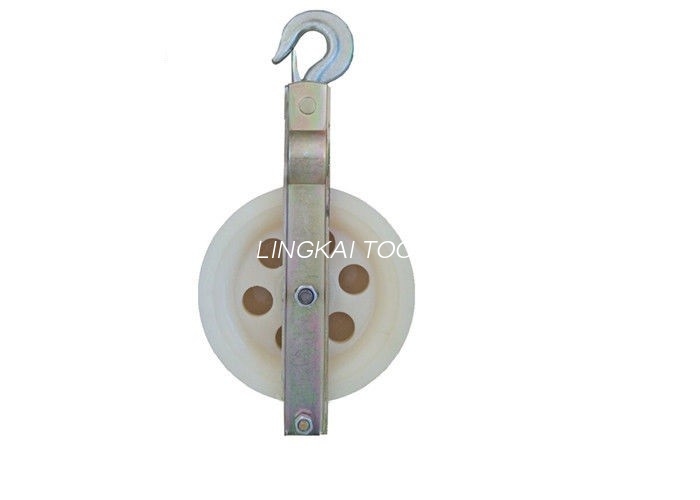

Pulley Photo:Single Sheave Cable Pulling Pulley with Hook for Stringing Cable Conductor
Factory price
We are the trading company with our own directly factory. So you can get high quality products with factory price. For big order and regular Customers, we give favorable discounts.
