Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SHC-0.5,2
Payment & Shipping Terms
Minimum Order Quantity: 5pcs
Price: negotiable
Packaging Details: Carton
Delivery Time: 5-8 word days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 pcs / month
Features: |
Crossarm Mounted |
Name: |
Stringing Block |
Rated Load: |
2T |
Weight: |
2.3 Kg |
Materail: |
Nylon Or Aluminum |
Apply: |
Transmission Line |
Features: |
Crossarm Mounted |
Name: |
Stringing Block |
Rated Load: |
2T |
Weight: |
2.3 Kg |
Materail: |
Nylon Or Aluminum |
Apply: |
Transmission Line |

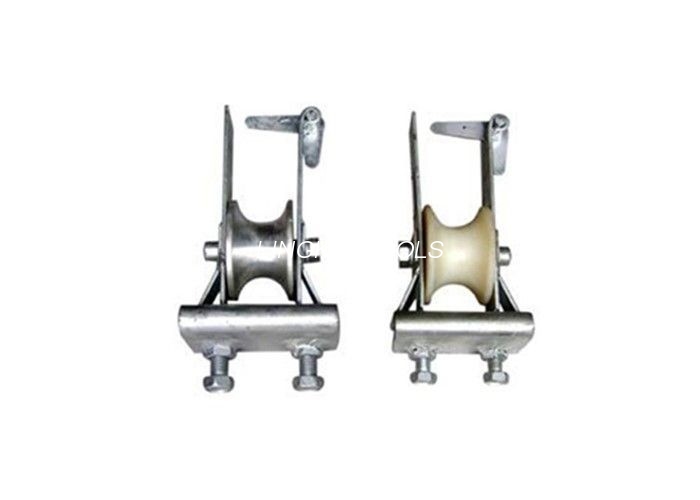

Transmission Line Stringing Blocks Crossarm - mounted Stringing Block
Uses:Transmission Line Tower 0.5T And 2T Crossarm- Mounted Stringing Blocks
The cross arm mounted stringing blocks are used for installation small conductors on transmission line.
Model SHC rated load has 0.5T and 2T, breaking load 5KN, 20KN, suitable for conductor range size 10mm2,40mm2. the material can be aluminum or nylon.
Crossarm-mounted Stringing Block Data
| Model | Rated Load (KN) | Breaking Load (KN) | Conductor Size Range (mm²) | O. D. of Sheave (mm) | Weight (kg) | Material | Remark |
| 10231 | SHC-0.5 | 5 | 10 | ACSR 25-120 | Φ80 | 1.5 | Aluminum |
| 10232 | SHC-2 | 20 | 40 | ACSR 35-240 | Φ120 | 3 | |
| 10233 | SHCN-0.5 | 5 | 10 | ACSR 25-120 | Φ80 | 1.1 | Nylon |
| 10234 | SHCN-2 | 20 | 40 | ACSR 35-240 | Φ120 | 2.3 |
| Ordernumber | Model | Applicableconductor | Ratedload (kN) | Outsidediameterofsheave (mm) | Weight(kg) | Features |
| 10231 | SHC-80×50A | LGJ120 | 5 | Φ80 | 1.5 |
Aluminous
Wheel
|
| 10232 | SHC-80×50A | LGJ240 | 20 | Φ120 | 3 | |
| 10233 | SHCN-80×50A | LGJ120 | 5 | Φ80 | 1.1 | Nylonsheave |
| 10234 | SHCN-120×50A | LGJ240 | 20 | Φ120 | 2.3 |
