Product Details
Place of Origin: NINGBO
Brand Name: Linkai
Certification: ISO CE
Model Number: 10241
Payment & Shipping Terms
Minimum Order Quantity: 5sets
Price: Get the latest
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000pcs/month
Model: |
10241 |
Material: |
Steel, Nylon |
Name: |
Pulley Block |
Apply: |
Stringing Iine |
Rated Load: |
10kn |
Weight: |
13kg |
Model: |
10241 |
Material: |
Steel, Nylon |
Name: |
Pulley Block |
Apply: |
Stringing Iine |
Rated Load: |
10kn |
Weight: |
13kg |

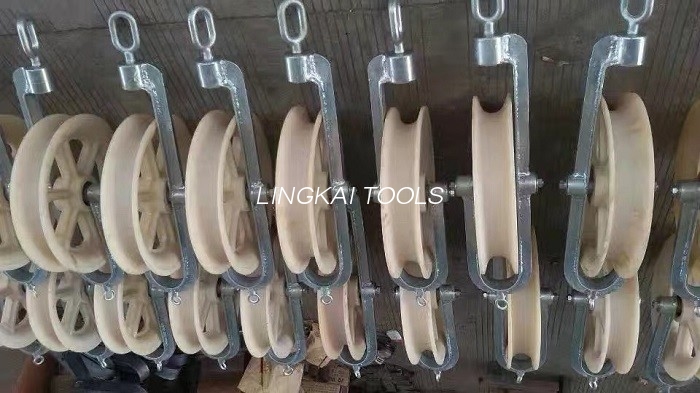

Transmission Line Stringing Blocks MC Nylon Hold Down Pulley Block
Transmission Line Stringing Blocks MC Nylon Hold Down Pulley Block
Anti Lifting Automatic Release Pulley is a special device that prevents the pulling rope lifting with respect to the theoretical line.
Product Table
| Item Number |
Scope of Application |
Rated Load ( kN ) |
Weight (kg) |
Remark | Outside diameter of sheave (mm) |
| 10241 | ≤LGJ400 | 10 | 13 | Aluminum coated glue | Φ308*Φ204*75 |
| 10242 | ≤GJ120 | 10 | 20 | Steel sheave | Φ308*Φ204*75 |
| 10243 | ≤LGJ720 | 25 | 16 | MC nylon | Φ400*Φ300*80 |
| 10244A | ≤Φ28 | 40 | 55 | Steel sheave | Φ308*Φ208*110 |
| 10244C | ≤LGJ720 | 34 | MC nylon sheave | Φ308*Φ208*110 |
Our hold down pulley block is applicable range max<=ACSR720, the rated load from 10KN, 25kn, 4kn.
Block material has the aluminum coated glue, steel sheave,nylon MC. The more sizes is as the table showed. But we also can customized. Pls freely ask us to know more infos.
Anti LiftingAutomatic Release Pulley is a special device that prevents the pulling rope lifting with respect to thetheoretical line, specifically in case of towers with considerable heightdifferences. It is equipped with an automatic release system to facilitaterecovery operations.
Product: stringing pulley blocks; stringing blocks.
Usage:Protect the cable and conductor from fricting when they are laying.They can save time and effort.
Description:
a. We manufacture a lot of models for different uses in the overhead transmission line construction.
b. They have are used to support conductors,OPGW,ADSS, communicatio lines.
c. The sheave of the pulley blocks are made from higth strength MC nylon,or aluminum materials ,and the frame of blocks are made of galvanized steel.The lateral ones are mounted on ball bearings.
Remarks:All kinds of pulley blocks can be manufactured according to the customers's requirements.
If any interested,please feel free to contact with us for more information,and we will try our best to comply with your requirements
