Product Details
Place of Origin: NINGBO
Brand Name: Linkai
Certification: ISO CE
Model Number: SHDN
Payment & Shipping Terms
Minimum Order Quantity: 2pcs
Price: Get the latest
Packaging Details: Std exported packing
Delivery Time: 5-8work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000pcs/mmonth
Model: |
550 SHDN |
Wheel: |
1,3,5 |
Material: |
MC NYLON |
Type: |
Stringing Pulley |
Name: |
Large Diameter Blocks |
Certificaitons: |
CE ISO |
Model: |
550 SHDN |
Wheel: |
1,3,5 |
Material: |
MC NYLON |
Type: |
Stringing Pulley |
Name: |
Large Diameter Blocks |
Certificaitons: |
CE ISO |

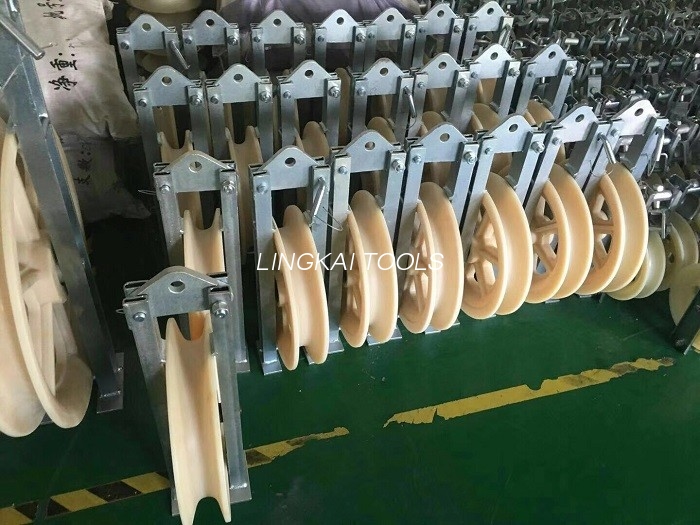

SHDN Large Diameter Stringing Block Overhead Line Transmission Stringing Tools
This 508mm Large Diameter Stringing Block comes with the maximum suitable conductor LGJ400. In other words, our product is adaptable to the conducting wire which has the aluminum's nominal cross section of up to 400 square millimeters. The block dimension (outside diameter*root diameter*sheave width) is Φ508×Φ408×75 (mm).
Remarks:
508MM stringing blocks are used for stringing medium size conductor (26-31 mm) in overhead transmission line construction.
The sheaves of stringing block are made of aluminum alloy lined with neoprene or high strength MC nylon. All the sheaves are mounted on ball bearings. The frame of block is made of galvanized steel.
Notes:
a. It is normally used for conductor from 25-31 mm.
b. The sheave size: (outer dia. X inner dia. X width: Φ508 x Φ408 x 75 mm.
c. All kinds of pulley blocks can be manufactured according to the customers's requirements.
Technical Parameters
| Item Number | Model | Number of Sheave | Rated Load (kN) | Weight (kg) | Features of Sheave |
| 10101 | SHD508 | 1 | 20 | 18 | Rubber coated aluminum sheave |
| 10102 | SHS508 | 3 | 40 | 61 | Middle: cast steel sheave Conductor: Rubber coated aluminum sheave |
| 10103 | SHW508 | 5 | 60 | 93 | |
| 10104 | SHDN508 | 1 | 20 | 16 | MC nylon sheave |
| 10105 | SHSLN508 | 3 | 40 | 47 | Middle: MC nylon sheave Conductor: Rubber coated aluminum wheel |
| 10106 | SHWLN508 | 5 | 60 | 79 | |
| 10107 | SHSQN508 | 3 | 40 | 43 | MC nylon sheave |
| 10108 | SHWQN508 | 5 | 60 | 70 |
Block dimension Φ508×Φ408×100(mm) can be customized
