15-60 Kn Tower Erection Tools MC Nylon Sheave Single Conductor Pulleys

Product Details

Place of Origin: NINGBO CHINA

Brand Name: Linkai

Certification: ISO CE

Model Number: SHDN

Payment & Shipping Terms

Minimum Order Quantity: 5 SETS

Price: Get the latest

Packaging Details: Wooden case

Delivery Time: 5-8 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 10000sets/month

Get Best Price
Product Details
Highlight:

overhead line stringing block

,

stringing pulley block

Name:
Single Conductor Pulley
Material:
Mc Nylon
Apply For:
Stringing ACSR 25 To ACSR 500
Breaking Load:
15-60kn
Used:
Tower Erection
License:
ISO CE
Name:
Single Conductor Pulley
Material:
Mc Nylon
Apply For:
Stringing ACSR 25 To ACSR 500
Breaking Load:
15-60kn
Used:
Tower Erection
License:
ISO CE
Product Description

MC Nylon Sheave Single Conductor Pulleys for Stringing ACSR 25 to ACSR 500





Single Conductor Pulleys for stringing ACSR 25 to ACSR 500 are made of aluminium/ MC nylon mounted on ball bearings.
Single Conductor Pulleys for stringing ACSR 25 to ACSR 500
Single Conductor Pulleys for stringing ACSR 25 to ACSR 500 are made of aluminium/ MC nylon mounted on ball bearings; the groove is lined by a neoprene ring or by wear-proof interchangeable nylon or aluminium wheels. The frame is made of galvanized steel. The pulleys can be supplied with three types of connections: fixed(B), swivel-type(C) or with a hook supplied with safety lock(D). Grounding device or complete conductive sheaves can be supplied on demand.
Ordernumber Model Suitableconductor Breaking load(kg) Weight(kg) Features
10171 SHD-120×30 ACSR2570 15 1.5 Aluminoussheave
10172 SHD-160×40 ACSR95120 30 2.5
10173 SHD-200×40 ACSR150240 45 4
10174 SHD-200×60 ACSR150240 45 4.6
10175 SHD-250×40 ACSR150240 60 4.6
10176 SHD-250×60 ACSR300400 60 6
10177 SHD-270×60 ACSR300400 60 7
10178 SHD-320×60 ACSR300400 60 9.5
10179 SHD-400×80 ACSR400500 60 15
10191 SHDN-120×30 ACSR2570 15 1.5 Nylonsheave
10192 SHDN-160×40 ACSR95120 30 2.5
10193 SHDN-200×40 ACSR150240 45 3.6
10194 SHDN-200×60 ACSR150240 45 4
10195 SHDN-250×40 ACSR150240 60 4
10196 SHDN-250×60 ACSR300400 60 4.5
10197 SHDN-270×60 ACSR300400 60 5.6
10198 SHDN-320×60 ACSR300400 60 6.7
10199 SHDN-400×80 ACSR400500 60 13

Note:
Numbers in the model name mean outside diameter of sheave ×width of sheave (mm).

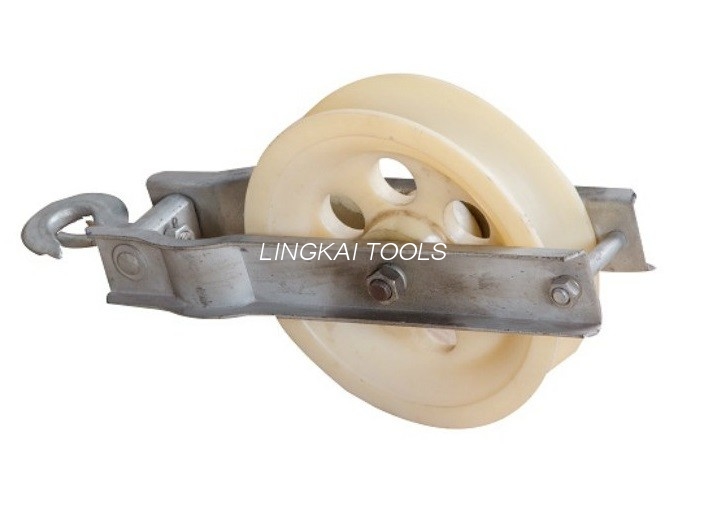

15-60 Kn Tower Erection Tools MC Nylon Sheave Single Conductor Pulleys 0
