Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SHZ1
Payment & Shipping Terms
Minimum Order Quantity: 5pcs
Price: get the latest
Packaging Details: Wooden case
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100pcs/day
Material: |
Steel Sheave |
Name: |
High Speed Turning Block |
Rated Load: |
50kn |
Model: |
THZ1-5 |
Sheave Width: |
75mm |
Weight: |
22kg |
Material: |
Steel Sheave |
Name: |
High Speed Turning Block |
Rated Load: |
50kn |
Model: |
THZ1-5 |
Sheave Width: |
75mm |
Weight: |
22kg |

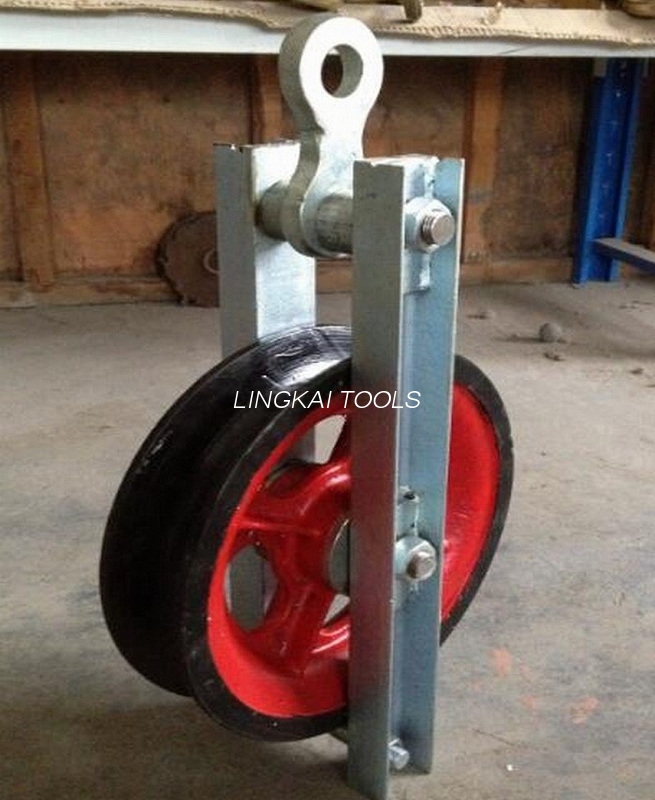

Transmission Line Steel Sheave Stringing Pulley Conductor Pulleys Stringing
High Speed Stringing Turning Block Products
|
Item number |
Model |
(KN) Rated Load |
(MM) Sheave Diameter |
Sheave width |
(KG) Weight |
Remark |
| 12141 | THZ1-5 | 50 | Φ308 | 75 | 22 |
Steel Sheave |
| 12141A | THZ1-8 | 80 | Φ308 | 110 | 30 | |
| 12142 | THZ1-16 | 160 | Φ600 | 92 | 115 | |
| 12143 | THZ1-30 | 300 | Φ916 | 110/125 | 200 |
Quick Information:
1. Donghuan Brand
2. Transmission Line accessories and tools
3. High speed turing block, special stringing block
4. rated load is 50kn
5. 308 mm sheave diameter and 75mm width
6. Steel sheave
7. Galvanzied frame
Steel Sheave Stringing Pulley Conductor Pulleys Stringing
Configuration:Apply to steel wire rope traction and turning. It can pass through steel wire rope connector;The maximum allowable speed of hauling rope is 80m/min.
