Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: 10241, 10242,10243...
Payment & Shipping Terms
Minimum Order Quantity: 5pcs
Price: get the latest
Packaging Details: wooden case
Delivery Time: 5-8work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100pcs/day
Material: |
Steel Sheave |
Model: |
10244A |
Applicable Range: |
<=28mm |
Rated Load: |
40kn |
Weight: |
55kg |
Block Dimension: |
308*208*110mm |
Material: |
Steel Sheave |
Model: |
10244A |
Applicable Range: |
<=28mm |
Rated Load: |
40kn |
Weight: |
55kg |
Block Dimension: |
308*208*110mm |

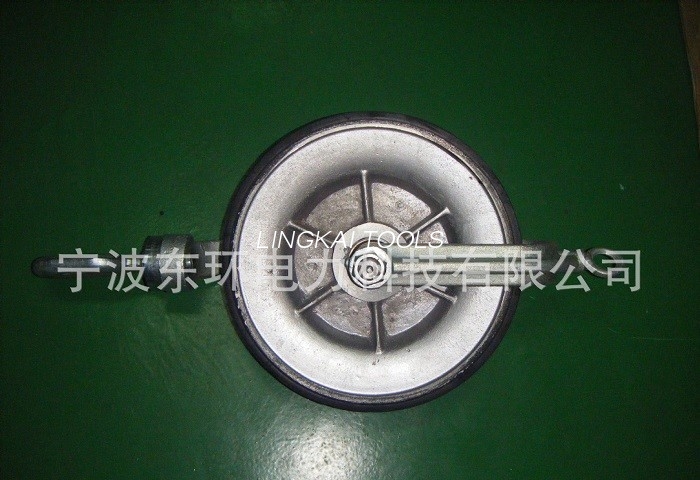

Stringing Pulley Blocks Anti Lifting Automatic Release Pulley for Pulling Rope
| Ordernumber | Applicablerange | Ratedload (kN) | Weight(kg) | Features |
| 10241 | ≤ACSR400 | 10 | 13 | Aluminumcoated glue |
| 10242 | ≤GJ120 | 10 | 20 | Steelsheave |
| 10243 | ≤ACSR 720 | 25 | 16 | MC nylon |
| 10244A | ≤Φ28 | 40 | 55 | Steelsheave |
| 10244B | ≤ACSR 720 | 39 | Aluminumsheave | |
| 10244C | ≤ACSR 720 | 34 | MC nylonsheave |
Hold down pully block quick information:
1. Donghuan brand
2. Transmission line stringing pulley block
3. applicable for <=28mm ACSR
4. Steel sheave, and rated load is 4T, and break roted is 12T
