Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SHD
Payment & Shipping Terms
Minimum Order Quantity: 10PCS
Price: GET THE LATEST
Packaging Details: WOODEN CASE
Delivery Time: 5-8WORK DAYS
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000PCS/DAY
MODEL: |
SHD 250*40 |
MATERIAL: |
ALUMINUM SHEAVE |
RATED LOAD: |
20KN |
FEATURE: |
LIGHT |
CONDUCTOR: |
LJG150~240 |
WEIGHT: |
4.6KG |
MODEL: |
SHD 250*40 |
MATERIAL: |
ALUMINUM SHEAVE |
RATED LOAD: |
20KN |
FEATURE: |
LIGHT |
CONDUCTOR: |
LJG150~240 |
WEIGHT: |
4.6KG |

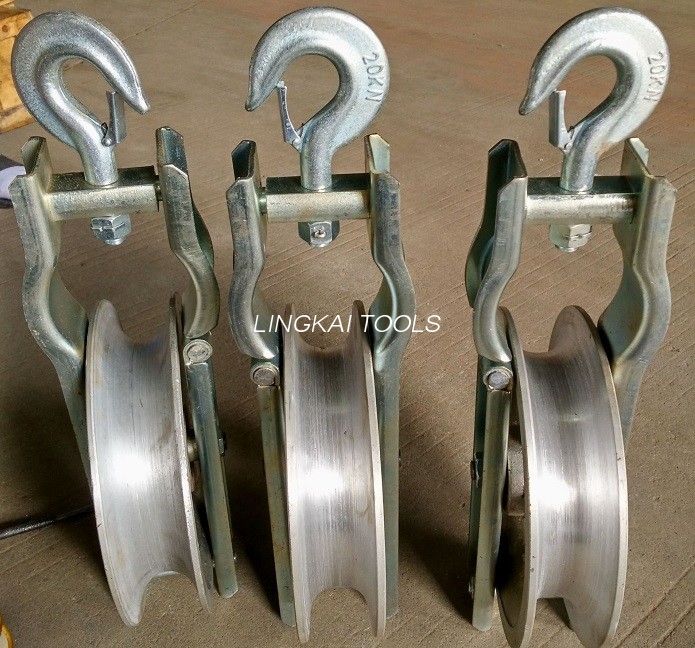

SHD 20 KN Rated Load Single Aluminum Sheave Stringing Block Conductor Stringing Block
Single sheave stringing block Products:
|
Item number |
Model |
Suitable conductor |
Rated load (kN) |
Weight (kg) |
Remark |
| 10171 | SHD-120×30 | LGJ25～70 | 5 | 1.5 |
Aluminium sheave |
| 10172 | SHD-160×40 | LGJ95～120 | 10 | 2.5 | |
| 10173 | SHD-200×40 | LGJ150～240 | 15 | 4 | |
| 10174 | SHD-200×60 | LGJ150～240 | 15 | 4.6 | |
| 10175 | SHD-250×40 | LGJ150～240 | 20 | 4.6 | |
| 10176 | SHD-250×60 | LGJ300～400 | 20 | 6 | |
| 10177 | SHD-270×60 | LGJ300～400 | 20 | 7 | |
| 10178 | SHD-320×60 | LGJ300～400 | 20 | 9.5 | |
| 10179 | SHD-400×80 | LGJ400～500 | 20 | 15 | |
| 10191 | SHDN-120×30 | LGJ25～70 | 5 | 1.5 |
Nylon sheave |
| 10192 | SHDN-160×40 | LGJ95～120 | 10 | 2.5 | |
| 10193 | SHDN-200×40 | LGJ150～240 | 15 | 3.6 | |
| 10194 | SHDN-200×60 | LGJ150～240 | 15 | 4 | |
| 10195 | SHDN-250×40 | LGJ150～240 | 20 | 4 | |
| 10196 | SHDN-250×60 | LGJ300～400 | 20 | 4.5 | |
| 10197 | SHDN-270×60 | LGJ300～400 | 20 | 5.6 | |
| 10198 | SHDN-320×60 | LGJ300～400 | 20 | 6.7 | |
| 10198-1 | SHDN-320×80 | LGJ300～400 | 20 | 8 | |
| 10199 | SHDN-400×80 | LGJ400～500 | 20 | 13 | |
| 10199-1 | SHDN-400×100 | LGJ400～500 | 20 | 15 | |
| 10199-2 | SHDN-400×120 | LGJ400～500 | 20 | 18 |
Quick Information:
1. transmission line stringing pulley block
2. overhead line stringing tools and accessories
3. Donghuan Brand
4. It has Aluminum material and Nylon material
5. The frame is highly galvanized
Conductor stringing block Configuration:
1.The product is classified as hook style and clevisstyle; 2.More specification can be customized .
