Product Details
Place of Origin: Ningbo China
Brand Name: Linkai
Certification: ISO CE
Model Number: 660
Payment & Shipping Terms
Minimum Order Quantity: 10sets
Price: get the latest
Packaging Details: Standard exported packing
Delivery Time: 3-5 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 3000sets/month
Hanger: |
Hook Ring Plate |
Size: |
660 Mm Diameter |
Material: |
MC Nylon |
Used: |
Pay Off Conductor |
Site: |
Overhead Line Transmission |
Approved: |
ISO CE |
Hanger: |
Hook Ring Plate |
Size: |
660 Mm Diameter |
Material: |
MC Nylon |
Used: |
Pay Off Conductor |
Site: |
Overhead Line Transmission |
Approved: |
ISO CE |

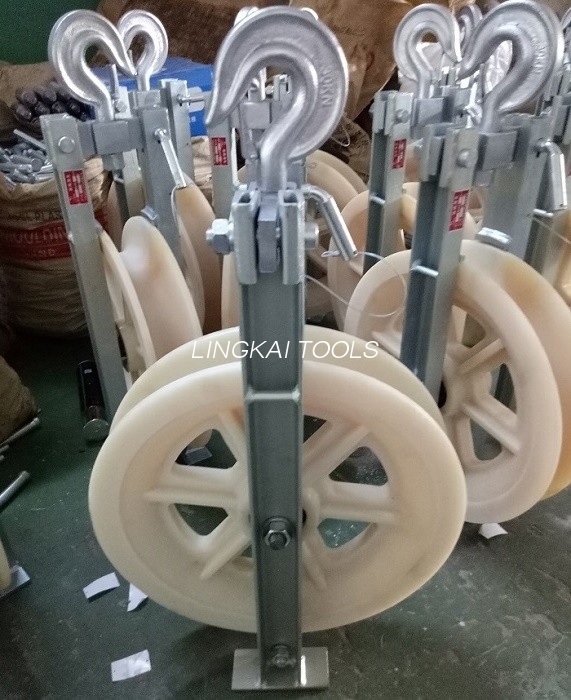

Customized Hanger Type Transmission Line Conductor Galvanized Stringing Pulley Block
Technical Data:
Apply to paying off single conductor, twin bundled conductor or four bundled conductor on overhead transmission line construction.
| Item number | Model | Number of sheaves | Rated load (kN) | Weight (kg) | Features |
| 10121 | SHD660 | 1 | 20 | 30 | Rubber lined aluminium sheave |
| 10122 | SHS660 | 3 | 40 | 100 |
Middle : Cast steel sheave Conductor : Rubber lined aluminium sheave |
| 10123 | SHW660 | 5 | 60 | 150 | |
| 10124/10124A | SHDN660 | 1 | 20 | 26 | MC nylon sheave |
| 10125 | SHSLN660 | 3 | 40 | 86 |
Middle : MC nylon sheave Conductor : Rubber lined aluminium sheave |
| 10126 | SHWLN660 | 5 | 60 | 120 | |
| 10127/10127A | SHSQN660 | 3 | 40 | 70 | MC nylon sheave |
| 10128/10128A | SHWQN660 | 5 | 60 | 110 | |
| 10130 | SHQ660A | 7 | 75 | 190 |
Middle :cast steel sheave Conductor : MC nylon sheave |
660mm Stringing Block
Protect the cable and conductor from fricting when they are laying.
They can save time and effort. 1.Maximum suitable conductor ACSR500 2.Sheave dimension( outside diameter× rootdiameter × sheave width) Φ660×Φ560×100(mm) 3.Sheave dimension Φ660×Φ560×110(mm) can be customized.
