Product Details
Place of Origin: Ningbo China
Brand Name: Linkai
Certification: ISO
Model Number: SHDN
Payment & Shipping Terms
Minimum Order Quantity: 10sets
Price: get the latest
Packaging Details: Standrad Exported Packing
Delivery Time: 8-15 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100000sets/month
Series: |
Stringing Equipment |
Use: |
Overhead Line Transmission |
Name: |
Stringing Pulley |
Approved: |
ISO |
Made: |
Ningbo China |
Rated Load: |
30KN |
Series: |
Stringing Equipment |
Use: |
Overhead Line Transmission |
Name: |
Stringing Pulley |
Approved: |
ISO |
Made: |
Ningbo China |
Rated Load: |
30KN |

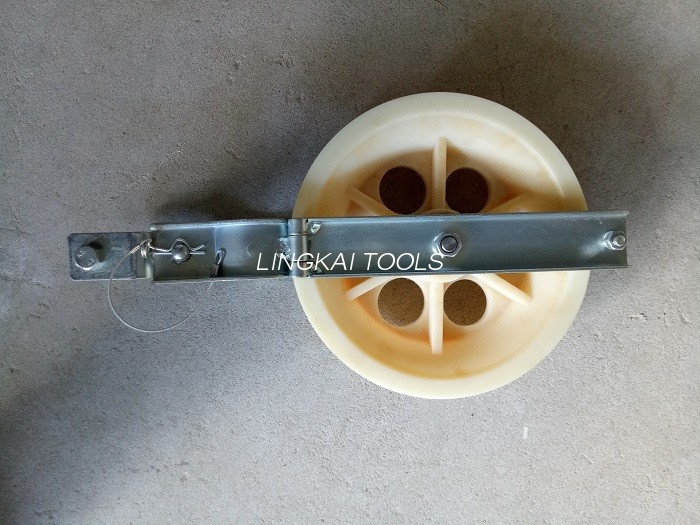

Stringing Equipment Accessories Single Wheel Conductor Pulley String Pulley Stringing Conductor
Product: stringing pulley blocks; stringing blocks.
Usage:Protect the cable and conductor from fricting when they are laying.They can save time and effort.
Description:
a. We manufacture a lot of models for different uses in the overhead transmission line construction.
b. They have are used to support conductors,OPGW,ADSS, communicatio lines.
c. The sheave of the pulley blocks are made from higth strength MC nylon,or aluminum materials ,and the frame of blocks are made of galvanized steel.The lateral ones are mounted on ball bearings.
Remarks:All kinds of pulley blocks can be manufactured according to the customers's requirements.
If any interested,please feel free to contact with us for more information,and we will try our best to comply with your requirements
Nylon Stringing Blocks Pulleys Transmission Line Accessories Single Nylon Conductor Pulley
Wheel material aluminum or nylon, and it could be covered by rubber.
Cable Pulley
Stringing blocks have different diameter were used to string different conductors.
Our Large diameter stringing blocks are High strength and flexibility,easy to use,light weight,and long service.
Performance
| Model |
Wheel size Diameter x Width (mm) |
Conductor size (mm2) |
Rated load (kN) |
Weight (kg) |
Wheel material |
| SHDN-120X30 | 120x30 | 25~70 | 5 | 1.5 | Nylon |
| SHDN-160X40 | 160X40 | 95~120 | 10 | 2.3 | |
| SHDN-200X40 | 200X40 | 150~240 | 15 | 2.5 | |
| SHDN-200X60 | 200X60 | 150~240 | 15 | 3.0 | |
| SHDN-250X40 | 250X40 | 150~240 | 20 | 3.6 | |
| SHDN-250X60 | 250X60 | 300~400 | 20 | 3.8 | |
| SHDN-270X60 | 270X60 | 300~400 | 20 | 4.3 | |
| SHDN-320X60 | 320X60 | 300~400 | 20 | 7.5 | |
| SHDN-400X80 | 400X80 | 400~500 | 20 | 8 | |
| SHDN-508X75 | 508X75 | ≤400 | 20 | 18 | Nylon |
| SHDN-660X100 | 660X100 | ≤500 | 20 | 20 | |
| SHDN-822X110 | 830X110 | ≤630 | 30 | 25 | |
| SHDN-916X110 | 916X110 | ≤800 | 50 | 45 | |
| SHDN-1040X125 | 1040X125 | ≤1000 | 55 | 105 | |
| SHDN-1160X150 | 1160X150 | ≤1250 | 60 | 165 | |
| SHDN-255X110 | 255X110 | ≤630 | 100 | 77 | |
| SHDN-325X150 | 325X150 | ≤1520 | 120 | 85 |
