Product Details
Place of Origin: NINGBO
Brand Name: Lingkai
Certification: ISO CE
Model Number: 660mm
Payment & Shipping Terms
Minimum Order Quantity: 20 sets
Price: get the latest
Packaging Details: exported packing
Delivery Time: 5-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000sets/month
Custom: |
Helicopter Conductor Stringing Blocks |
Means Of Transport: |
Ocean, Air, Land |
Model: |
SHDN660 SHSQN750 SHSQN822 SHWQN916 |
Material Of Sheave: |
High Strength Nylon, Lined With Neoprene |
Inner Diameter: |
408,560, 640, 710, 800 Mm |
Outer Diameter: |
508,660,750, 822, 916 Mm |
Custom: |
Helicopter Conductor Stringing Blocks |
Means Of Transport: |
Ocean, Air, Land |
Model: |
SHDN660 SHSQN750 SHSQN822 SHWQN916 |
Material Of Sheave: |
High Strength Nylon, Lined With Neoprene |
Inner Diameter: |
408,560, 640, 710, 800 Mm |
Outer Diameter: |
508,660,750, 822, 916 Mm |
Conductor Stringing Blocks With Nylon Sheave Rollers For Installation Of Overhead Bundled Cables
Product Description
Overhead Stringing Blocks are used for overhead transmisson line conductor or OPGW stringing. We have produced sheave rollers with nylon or aluminum alloy, both kinds of rollers could be lined with neoprene, to protect some special kind of conductors.
Single sheave Nylon Stringing Block
| Item No. | Model | ACSR Size Range (mm²) | Working Load (KN) | Weight (kg) | Material of Sheave |
| 10191 | SHDN-120x30 | 25-70 | 5 | 1.5 | Nylon |
| 10192 | SHDN-160x40 | 70-95 | 10 | 2.4 | |
| 10193 | SHDN-200x40 | 95-120 | 15 | 2.6 | |
| 10194 | SHDN-200x60 | 120-150 | 15 | 3.1 | |
| 10195 | SHDN-250x40 | 120-150 | 20 | 3.7 | |
| 10196 | SHDN-250x60 | 150-180 | 20 | 3.9 | |
| 10197 | SHDN-270x60 | 180-240 | 20 | 4.4 | |
| 10198 | SHDN-320x60 | 240-300 | 20 | 7.5 | |
| 10199 | SHDN-400x80 | 300-400 | 20 | 8 | |
| 10104 | SHDN508 | 300-400 | 20 | 16 | Nylon, optional can be lined with neoprene |
| 10124 | SHDN660 | 400-500 | 20 | 24 | |
| 10131 | SHDN750 | 500-600 | 30 | 32 | |
| 10141 | SHDN822 | 600-700 | 30 | 38 | |
| 10151 | SHDN916 | 700-800 | 50 | 51 | |
| 10165 | SHDN1040 | 800-900 | 50 | 60 |
Application: It is suitable to string stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in high strength nylon. The big size 660mm, 822mm, 916mm, 1040mm nylon sheave can be lined with neoprene.
Note:
1. Hook fitting, round eye fitting, and clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request.
The data in the model means the outer diameter of sheave X width of sheave (mm).
2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.

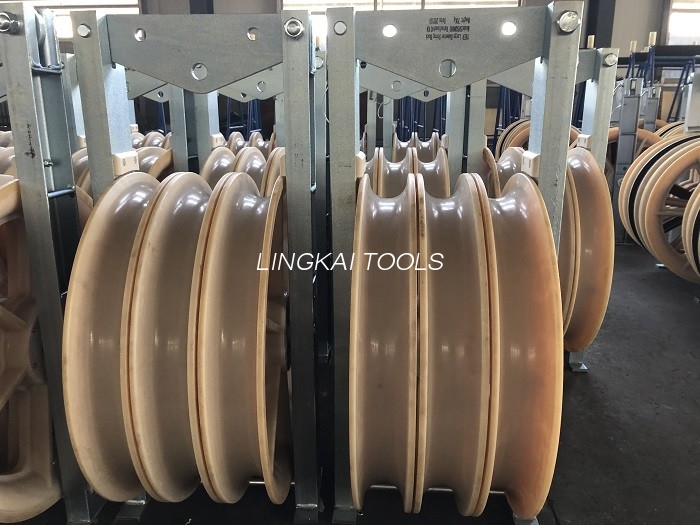

Three sheaves Stringing Blocks
| Item No. | Model | ACSR Size Range (mm²) | Working Load (KN) | Weight (kg) | Material of Sheave |
| 10107 | SHSQN508 | 300-400 | 40 | 43 | Nylon, optional can be lined with neoprene |
| 10127 | SHSQN660 | 400-500 | 40 | 76 | |
| 10132 | SHSQN750 | 500-600 | 60 | 98 | |
| 10142 | SHSQN822 | 600-700 | 60 | 110 | |
| 10152 | SHSQN916 | 700-800 | 75 | 126 | |
| 10166 | SHSQN1040 | 800-900 | 105 | 200 |
Application: It is suitable to string two or three stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in aluminum alloy or high strength nylon. The big size 660mm, 822mm, 916mm, 1040mm nylon sheave can be lined with neoprene.
Note:
1. Clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request. The data in the model means the outer diameter of sheave X width of sheave (mm).
2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.
