Product Details
Place of Origin: NINGBO CHINA
Brand Name: Lingkai
Certification: ISO
Model Number: LJ-300B LJ-500A LJ-500 SJZ-10B SJZ-10C
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Get the latest
Packaging Details: wooden case
Delivery Time: 5~15
Payment Terms: TT,LC
Supply Ability: 1000 sets/month
Features: |
High Strength, Durable, Reliable |
Product Name: |
Wire Take Up Machine |
Testing: |
Before Shipping |
Safety: |
Meets Safety Standards |
Packaging: |
Wooden Case |
Weight: |
Not So Heavy |
Warranty: |
1 Year |
Service: |
24/7 Technical Support |
Features: |
High Strength, Durable, Reliable |
Product Name: |
Wire Take Up Machine |
Testing: |
Before Shipping |
Safety: |
Meets Safety Standards |
Packaging: |
Wooden Case |
Weight: |
Not So Heavy |
Warranty: |
1 Year |
Service: |
24/7 Technical Support |
The Large Drum Cable Traction Winch is a device that is specifically tailored to the needs of line construction. Its primary use is for the retrieval of old wires or overhead ground wires on the line. With the ability to completely replace manual labor, this device has a significant effect on reducing labor intensity and improving work efficiency. In addition, it boasts the advantages of small size, high power, flexible operation, and easy handling.
This device is highly appreciated by both the power sector and construction units. With its small size and high power, it has proven to be an essential tool for the efficient handling of line construction. The flexible operation of the Large Drum Cable Traction Winch makes it a valuable piece of equipment in a variety of different situations, ensuring successful completion of tasks with ease.
The power and capabilities of this device clearly demonstrate its importance in the field of line construction. The sophisticated design and production of the Large Drum Cable Traction Winch ensure its reliability, versatility, and effectiveness.
Item No. | 08151 | 08152 | |
Model | SJZ-10B | SJZ-10C | |
Engine | Model | GX160 Gasoline engine | Z170F Diesel engine |
Power (hp) | 5.5 | 4 | |
Speed (rpm) | 1500 | 2600 | |
Max. take-up force (KN) | 10 | 10 | |
Max. Take-up speed (m/min) | 41 | 41 | |
Reel Capacity (m) | ACSR95mm² | 600 | 600 |
ACSR120mm² | 460 | 460 | |
ACSR185mm² | 320 | 320 | |
Weight (kg) | 150 | 165 | |
Dimension (m) | 1.2 x 0.9 x 1 | 1.2 x 0.9 x 1 | |
Item No. | 08192 | 08193 | 08194 | |
Model | LJ-300B | LJ-500A | LJ-500 | |
Diameter of Capstans (mm) | Φ300 | Φ500 | Φ500 | |
Petrol Engine | Model | Petrol GX270 | R175A | Petrol GX270 |
Power (hp) | 9 | 6 | 9 | |
Speed (rpm) | 3600 | 2600 | 3600 | |
Pull force (KN) / Pull speed (m/min) | I | 25/8.5 | 16/10.5 | 16/13.6 |
II | 15/13.4 | 10/16.6 | 10/21.5 | |
III | 6/33.5 | 4/40.8 | 4/53.6 | |
Reverse | /9.6 | /11.8 | /15.3 | |
Dimension (mm) | 870 x 620 x 650 | 920 x 700 x 710 | 900 x 700 x 710 | |
Weight (kg) | 140 | 190 | 150 | |
The Large Drum Cable Traction Winch plays a crucial role in withdrawing old conductors or erecting overhead earth wires. It is powered by either gasoline or diesel, giving it the necessary strength to accomplish its tasks. The winch utilizes a large drum, allowing for easy handling of cables during recycling.
Whether for industrial or recycling purposes, the Large Drum Cable Traction Winch is a convenient device in many situations. Its reliable source of power makes it a versatile tool for a multitude of activities, suitable for use in numerous industries.
Overall, the Large Drum Cable Traction Winch provides a handy solution for managing and recycling cables with ease and efficiency. Its sturdy construction and powerful engine ensure smooth and hassle-free performance, making it an essential piece of equipment in many settings.

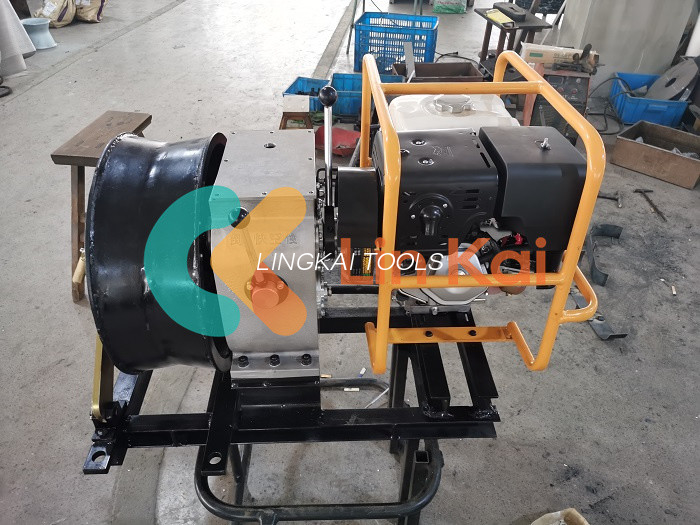

The Tapered Drum Recovery Take-up Pulling Winch is designed to provide traction and lifting capabilities for mountainous and outdoor construction sites that lack power supply. This product is not only convenient but also highly efficient, thanks to its small size and light weight which allows it to be easily transported and utilized. This winch is capable of providing exceptional pulling strength while maintaining ease of operation.
The machine is comprised of several essential parts which include an engine, clutch, gearbox, cable reel, and other components, as illustrated in the attached diagram. The engine provides power to the gearbox which houses a brake and the clutch. The cable reel is responsible for specifically winding and unwinding the cable that allows the winch to pull objects with strength and precision.
In addition to its impressive capabilities, this machine is also incredibly user-friendly. It is straightforward and hassle-free to operate, even for individuals with minimal training in such machinery. Its simplistic design also makes it easy to maintain and repair, ensuring that it can be in constant use without interruptions or downtime.
The Take-up Pulling Winch is a highly practical mechanism designed for the withdrawal of old conductors or the installation of overhead earth wires. It is an indispensable device for cable recycling, allowing users to conveniently and efficiently manage their cables.
By using the Take-up Pulling Winch, operators can easily remove and replace outdated cables without the need for complicated equipment or extensive manual labor. This makes cable recycling a more streamlined and cost-effective process, ultimately benefiting both businesses and the environment.
With its high efficiency and convenience, the Take-up Pulling Winch has become a staple tool in the cable industry, offering users the ability to quickly and efficiently manage their cable infrastructure. Its intuitive design and user-friendly operation make it a must-have for any business or organization looking to manage their cables in an efficient and sustainable way.
Our Transmission Line Stringing Tools product comes with technical support and services to ensure proper installation, operation, and maintenance. Our team of experts can provide consultation on choosing the right tools for your specific needs and offer training on how to use them safely and effectively. We also offer troubleshooting assistance and repair services to ensure minimal downtime. Our commitment to quality extends beyond the purchase of our products, as we strive to provide ongoing support to our customers throughout the lifespan of their tools.
