Product Details
Place of Origin: Ningbo
Brand Name: Lingkai
Certification: ISO
Model Number: SFS
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: get the latest
Packaging Details: wooden case packing
Delivery Time: 3-5 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets/month
Name: |
Overhead Lines Bicycles |
Rated Load: |
Max. 1.5 KN |
Conductor: |
Single, 2, 3, 4, 6 |
Type: |
Bicycle Or Air Cart |
Diameter Of Conductor: |
Max. 160 Mm |
Packing: |
Plywood Case |
Name: |
Overhead Lines Bicycles |
Rated Load: |
Max. 1.5 KN |
Conductor: |
Single, 2, 3, 4, 6 |
Type: |
Bicycle Or Air Cart |
Diameter Of Conductor: |
Max. 160 Mm |
Packing: |
Plywood Case |
Prodcut Introductions
Spacer Trolleys and Overhead Lines Bicycles are special tools widely used in transmission line maintenance and accessory installation operation. We have designed and produced series of Spacer Trolleys and Bicycles for working on single, two bundled, three bundled, four bundled, six bundled conductors

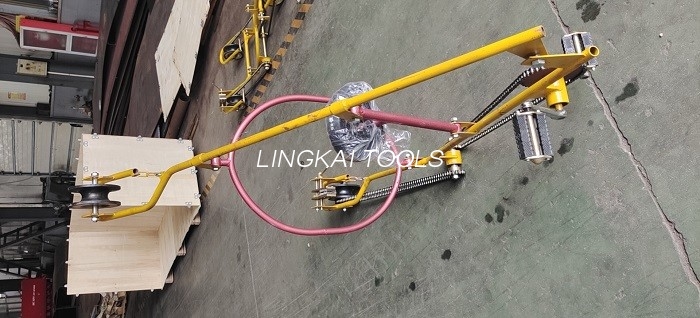

Our single conductor line cart serves to mount the conductor attachments as well as inspect the lines on single conductor, and some others. SFD1A type product is used for telecommunication system.
Specifications
| Item number | Model | Rate load (kN) | Diameter of wheel (mm) | Maximum through diameter (mm) | Weight (kg) |
| 17261 | SFD1A | 1 | Φ55 | Φ25 | 7 |
| 17262 | SFD1B | 1 | Φ80 | Φ40 | 7 |
| 17264 | SFD3 | 1 | Φ160 | Φ40 | 34 |
Uses: To install accessories and inspection on single conductor. SFD1A is used for telecommunications cable.
2 Bundled Conductors Spacer Trolleys and Bicycles
|
Item No. |
Model |
Rated Load (KN) |
Distance BT. conductors |
Weight (kg) |
Style |
|
17251 |
SFS2 |
1 |
400, 450, 500 |
34, 36 |
Horizontal bicycle |
|
17253 |
SFS400 |
1 |
400 |
40 |
Vertical bicycle |
|
17255 |
FC400/450S |
1 |
400~450 |
34 |
Horizontal bicycle |
|
17256 |
SFS1-400 |
1.5 |
400 |
38 |
Horizontal cart |
|
17257 |
SFS1-450 |
1.5 |
450 |
40 |
Horizontal cart |
Application: It is used to install conductor spacers or other attachments and inspect lines on 2 bundled conductors.
Note: Arrangement (horizontal or vertical) and distance between sub conductors of the bundle should be specified in the order.
This Four Bundle Conductors Line Cart is commonly used to install the conductor attachments, and overhaul the lines on the four bundle conductor, among others. The distance between the conductors should be clearly explained while an order is placed.
Technical Parameters
| Item Number | Model | Rated Load (kN) | Maximum Through Diameter (mm) | Distance between Conductors (mm) | Weight (kg) |
| 17271 | SFS1 | 1.5 | Φ70 | 450 | 40 |
| 500 | |||||
| 17272 | SFS3 | 1 | Φ40 | 400 450 500 |
36 |
| 450 | 38 | ||||
| 500 | 40 | ||||
| 17273 | FCS400/450 | 1 | Φ60 | 400~450 | 43.5 |
