Product Details
Place of Origin: Ningbo China
Brand Name: Lingkai
Certification: ISO CE
Model Number: JB
Payment & Shipping Terms
Minimum Order Quantity: 5 sets
Price: get the latest
Packaging Details: wooden case/ container
Delivery Time: 3-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50000 sets
Features: |
Protector Stringing Tools |
Name: |
Splice Protection Sleeves |
Material: |
Steel |
Application: |
Transmission Line Site |
Features: |
Protector Stringing Tools |
Name: |
Splice Protection Sleeves |
Material: |
Steel |
Application: |
Transmission Line Site |

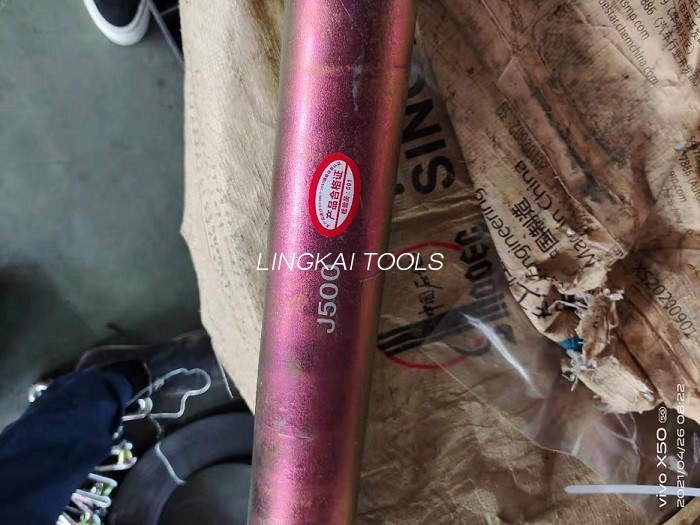

Introduction
Apply to protecting wire pressure tube on ACSR releasing and make it avoid torsion when pass
through pulleys. If the size of crimp tube is different from the standard, the dimension of splicing sleeve should be indicated in the contract.
Notes
Please writing the dimension of splice in contact if the splicing sleeve differ from standard.
| Item number | Model | Main size(MM) |
Application conductor(MAX) |
|||
| D | L | d | L1 | |||
| 17201 | J240B | Φ45 | 850 | Φ38 | 530 | LGJ240/55 |
| 17202 | J300B | Φ51 | 940 | Φ43 | 600 | LGJ300/50 |
| 17203 | J400B | Φ57 | 995 | Φ47 | 665 | LGJ400/50 |
| 17204 | J500B | Φ68 | 1080 | Φ56 | 740 | LGJ500/65 |
| 17205 | J630B | Φ83 | 1180 | Φ63 | 800 | LGJ630/55 |
| 17206 | J720B | Φ83 | 1196 | Φ63 | 816 | LGJ720/55 |
| 17207 | J900B | Φ89 | 1180 | Φ73 | 800 | LGJ900/75 |
| 17208 | J1000B | Φ95 | 1400 | Φ75 | 1020 | LGJ1000/80 |
| 17209 | JBZ1250 | Φ114 | 2280 | Φ86 | 1190 | JL1/G2A-1250 |
