Product Details
Place of Origin: NINGBO
Brand Name: Lingkai
Certification: ISO CE
Model Number: SHD,SHDN,SHSQN,SHWQN,SHSLN,SHWLN
Payment & Shipping Terms
Minimum Order Quantity: 50
Price: Get the latest
Packaging Details: Containers
Delivery Time: 5-20days
Payment Terms: T/T L/C
Supply Ability: 1000 sets one month
Traction Force: |
20kN-75kN |
Weight: |
30kg-200kg |
Sheave Diameter: |
660*560*110mm |
Sheave Width: |
110mm |
Sheave Number: |
1-7 |
Warranty: |
1 Year |
Material: |
MC Nylon/Aluminum Alloy/Cast Steel |
Capacity: |
50kN-200kN |
Traction Force: |
20kN-75kN |
Weight: |
30kg-200kg |
Sheave Diameter: |
660*560*110mm |
Sheave Width: |
110mm |
Sheave Number: |
1-7 |
Warranty: |
1 Year |
Material: |
MC Nylon/Aluminum Alloy/Cast Steel |
Capacity: |
50kN-200kN |

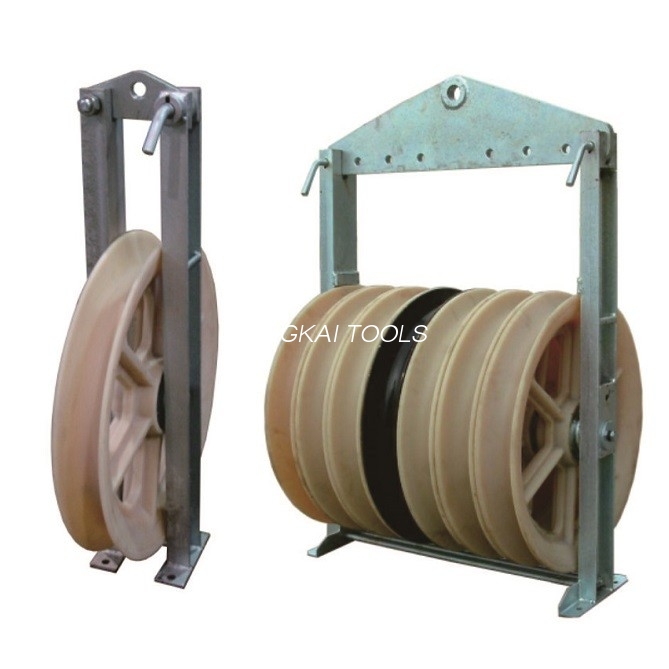

Transmission Stringing Blocks are a type of overhead conductor block designed for the stringing of overhead conductors. These blocks are made of high-quality materials, such as aluminum alloy and steel, making them highly durable and able to withstand the harsh environment of transmission lines. These blocks have a sheave diameter of 660*560*110mm and can hold weights ranging from 30kg to 200kg. The traction force of these blocks range from 20kN to 75kN and they have a sheave width of 110mm with a sheave number of 1 to 7, making them perfect for any overhead transmission line. Stringing pulley blocks, transmission connector blocks, and overhead conductor blocks are all part of our offering of transmission stringing blocks, which are sure to provide a secure and reliable connection of overhead conductors.
| Item Number | Model | Number of Sheave | Rated Load (kN) | Weight (kg) | Features |
| 10121 | SHD660 | 1 | 20 | 30 | Rubber coated aluminum sheave |
| 10122 | SHS660 | 3 | 40 | 106 | Middle: cast steel sheave with the width of 90mm Conductor: rubber coated aluminum sheave |
| 10123 | SHW660 | 5 | 60 | 150 | |
| 10124 | SHDN660 | 1 | 20 | 24 | MC nylon sheave |
| 10125 | SHSLN660 | 3 | 40 | 92 | Middle: MC nylon sheave Conductor: rubber coated aluminum sheave |
| 10126 | SHWLN660 | 5 | 60 | 120 | |
| 10127 | SHSQN660 | 3 | 40 | 76 | MC nylon sheave |
| 10128 | SHWQN660 | 5 | 60 | 110 | |
| 10129 | SHQZ660 | 7 | 80 | 268 | Middle: cast steel sheave Conductor: rubber coated aluminum sheave |
| 10130 | SHQ660A | 7 | 75 | 190 | Middle: cast steel sheave Conductor: MC nylon sheave |
These products are made of top MC Nylon with 8# steel and highly galvanized frame. They are also installed with imported bearings. The material used is from USA and is composed of 96% pure raw material and colored polyurethane material. These products are available in four color - red, blue, yellow and green which are highly attractive.
| Parameters | Details |
|---|---|
| Product Name | Transmission Stringing Blocks |
| Material | MC Nylon/Aluminum Alloy/Cast Steel |
| Capacity | 50kN-200kN |
| Weight | 30kg-200kg |
| Sheave Number | 1-7 |
| Warranty | 1 Year |
| Traction Force | 20kN-75kN |
| Sheave Width | 110mm |
| Sheave Diameter | 660*560*110mm |
This 660mm MC nylon sheave of the Stringing Block is suitable for ACSR500 overhead line conductor stringing works. It can take up to a maximum of 500 ACSR conductors.
ACSR conductor is a kind of specific conductor renowned for a good combination of strength and electrical conductivity. That makes it an ideal choice for overhead line stringing works.
Our Transmission Connector Blocks are widely used in Transmission Line Blocks, Transmission Line Stringing Blocks and Transmission Line Block applications. They are made of high quality MC Nylon/Aluminum Alloy/Cast Steel for long lasting durability.
We provide technical support and service for our Transmission Stringing Blocks. Our team of experienced professionals is available to answer any technical questions and provide assistance with product installation and maintenance.
We offer online and telephone assistance for customers who need help troubleshooting their products. Our technical support team is available to provide helpful advice and guidance on product usage and maintenance. We also provide detailed product documentation to help customers understand the features and functions of our Transmission Stringing Blocks.
We have a network of authorized service centers that are equipped to handle repairs and warranty service for our products. Our service centers are staffed with highly trained technicians and are capable of providing quality service and quick turnaround times.
We strive to provide the highest level of customer service and satisfaction. If you have any questions or need assistance with our Transmission Stringing Blocks, please contact us.
