Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SHDN822
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: Std export term
Delivery Time: 15-20 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000pcs/month
Features: |
Large Diameter Block |
Model: |
SHDN822 |
Item: |
Pulley Block |
Material: |
MC Nylon Sheave Or Cast Steel |
Suitable Conductor: |
ACSR630 |
Packing: |
Exported Term |
Features: |
Large Diameter Block |
Model: |
SHDN822 |
Item: |
Pulley Block |
Material: |
MC Nylon Sheave Or Cast Steel |
Suitable Conductor: |
ACSR630 |
Packing: |
Exported Term |

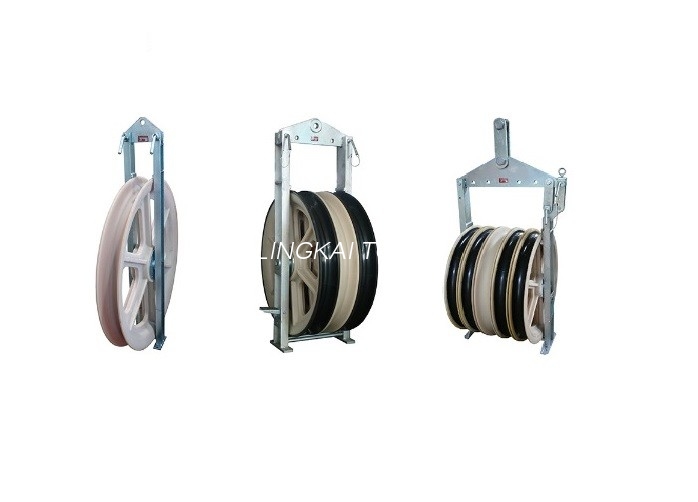

Three Bundled SHD Conductor Pulley Block Line Stringing With Nylon Wheel
This 822mm Wire Rope Pulley Block and nylon pulley block possesses the dimension (outside diameter*root diameter*sheave width) of Φ822× Φ710× 110 (mm). Its maximum suitable conductor is LGJ630, which means that the aluminum of our conducting wire has the maximum cross section of 630 square millimeters.
The 10148 type product is designed with the assembled structure. It is really convenient to separate the conductor from middle sheave, thus helping reduce the weight during transportation. Dimension of the middle steel sheave is φ520×φ400×120 mm. Furthermore, we can also provide the rubber coated aluminum sheave, the rubber coated MC nylon sheave, as well as the reinforced nylon sheave coated by
polyurethane.
Technical Parameters
Three Bundled SHD Conductor Pulley Block Line Stringing With Nylon Wheel
| Item Number | Model | Number of Sheave | Rated Load (kN) | Weight (kg) | Features |
| 10141 | SHDN822 | 1 | 30 | 40 | MC nylon sheave |
| 10142 | SHSQN822 | 3 | 60 | 118 | Middle: cast steel sheave Conductor: MC nylon wheel |
| 10143 | SHWQN822 | 5 | 120 | 180 | |
| 10146 | SHQ822 | 7 | 120 | 285 | Middle: cast steel sheave Conductor: MC nylon wheel |
| 10148 | SHJ822 | 9 | 150 | 445 |
Rubber lined MC nylon sheave for conductor can be customized.
Our Service:
| 1 | Well trained sales team service for you. |
| 2 | Small MOQ, usually sample is available. |
| 3 | Support OEM & ODM: we can print logo or customs package according to our client’s requirement. |
| 4 | Top quality: we have professional QC team to control the quality. |
| 5 | Timely delivery: we can send goods within 10~40 days after payment, it depend on products and quantity. |
| 6 | We work with DHL, UPS, FedEx, TNT and EMS for small order. For large order we can arrange shipment by air or by sea. |
| 7 | Satisfactory service: we treat clients as friends and 24 hours customer service. |
How to order?
| Step 1 | Contact Us |
| Show Us Item Name, Colors, Quantity and Details / Requirements | |
| Step 2 | Make a Performa Invoice for you |
| Step 3 | Performa Invoice Confirm and Payment |
| Step 4 | Production and Shipment |
Other Transmission Stringing Pulley
