Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SHD
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negotiable
Packaging Details: Std export term
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Material: |
Aluminum |
Rated Load: |
5~20kn |
Sheave: |
One |
ACSR: |
50~500 |
Weight: |
1.5~15kg |
Model: |
SHD |
Material: |
Aluminum |
Rated Load: |
5~20kn |
Sheave: |
One |
ACSR: |
50~500 |
Weight: |
1.5~15kg |
Model: |
SHD |

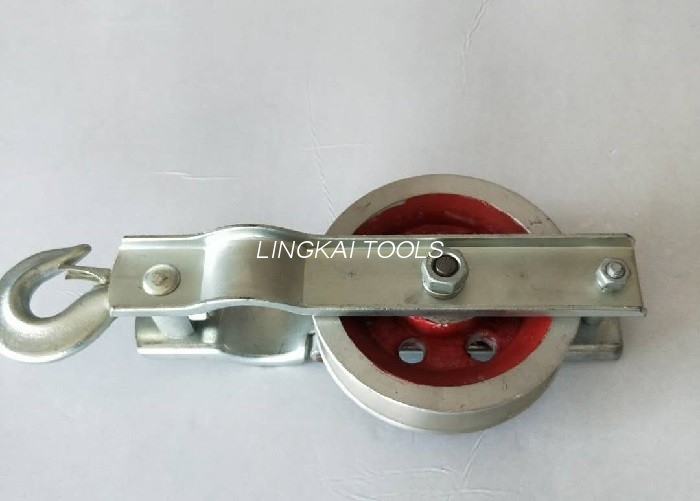

1T SHD Model Aluminum Sheave Hook Style Transmission Line Stringing Block
Product: stringing pulley blocks; stringing blocks.
To protect the cable and conductor from fricting when they are laying.They can save time and effort.
More blocks information to share
a. We manufacture a lot of models for different uses in the overhead transmission line construction.
b. They have are used to support conductors,OPGW,ADSS, communicatio lines.
c. The sheave of the pulley blocks are made from higth strength MC nylon,or aluminum materials ,and the frame of blocks are made of galvanized steel.The lateral ones are mounted on ball bearings.
Technical Parameters
1T SHD Model Aluminum Sheave Hook Style Transmission Line Stringing Block
| Item Number | Model | Suitable Conductor | Rated Load (kg) | Weight (kg) | Remark |
| 10171 | SHD-120×30 | LGJ25~70 | 5 | 1.5 | Aluminum sheave |
| 10172 | SHD-160×40 | LGJ95~120 | 10 | 2.5 | |
| 10173 | SHD-200×40 | LGJ150~240 | 15 | 4 | |
| 10174 | SHD-200×60 | LGJ150~240 | 15 | 4.6 | |
| 10176 | SHD-250×60 | LGJ300~400 | 20 | 6 | |
| 10178 | SHD-320×60 | LGJ300~400 | 20 | 9.5 | |
| 10179 | SHD-400×80 | LGJ400~500 | 20 | 15 | |
| 10191 | SHDN-120×30 | LGJ25~70 | 5 | 1.5 | Nylon sheave |
| 10192 | SHDN-160×40 | LGJ95~120 | 10 | 2.5 | |
| 10193 | SHDN-200×40 | LGJ150~240 | 15 | 3.6 | |
| 10194 | SHDN-200×60 | LGJ150~240 | 15 | 4 | |
| 10196 | SHDN-250×60 | LGJ300~400 | 20 | 4.5 | |
| 10197 | SHDN-270×60 | LGJ300~400 | 20 | 5.6 | |
| 10198 | SHDN-320×60 | LGJ300~400 | 20 | 6.7 | |
| 10199 | SHDN-400×80 | LGJ400~500 | 20 | 13 |
Our Service:
| 1 | Well trained sales team service for you. |
| 2 | Small MOQ, usually sample is available. |
| 3 | Support OEM & ODM: we can print logo or customs package according to our client’s requirement. |
| 4 | Top quality: we have professional QC team to control the quality. |
| 5 | Timely delivery: we can send goods within 10~40 days after payment, it depend on products and quantity. |
| 6 | We work with DHL, UPS, FedEx, TNT and EMS for small order. For large order we can arrange shipment by air or by sea. |
| 7 | Satisfactory service: we treat clients as friends and 24 hours customer service. |
