Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SFS
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Export term
Delivery Time: 8-15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 sets / month
Model: |
SFS2 |
Name: |
Cart For Overhead Line |
Conductor: |
Two Bundle |
Load: |
1.5 KN |
Type: |
Horizontal, Vertical |
Max Through Dia: |
70 Mm |
Model: |
SFS2 |
Name: |
Cart For Overhead Line |
Conductor: |
Two Bundle |
Load: |
1.5 KN |
Type: |
Horizontal, Vertical |
Max Through Dia: |
70 Mm |

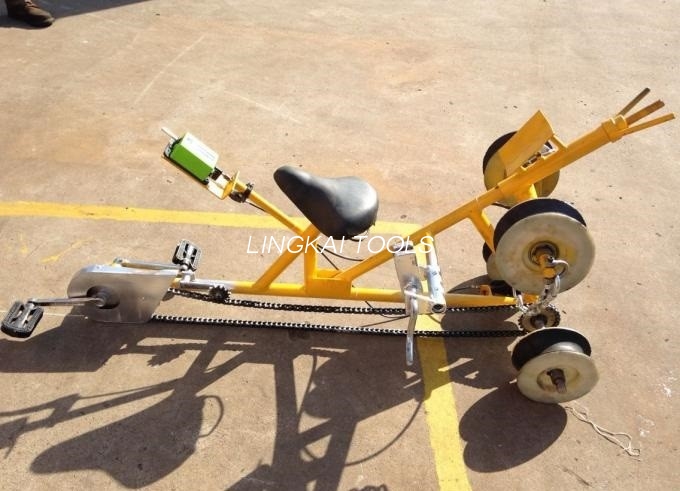

Inspection Trolleys And Overhead Line Bicycles For Two Bundle Conductors
Description
Inspection trolleys, and overhead lines bicycles for two conductor, two condutor line cart,It is used to install accessories and overhaul on two bundle conductor,ect.This overhead line bicycles, has two types, Horizontal, and Vertical, rated load are1KN and 1.5KN, suit to maximum diameter from 40mm to 70mm, conductor distance can reach to max 500mm, it is easy operation during the power construction.Before you use it, please kindly confirm the distance between conductors before proceeding production.
By the way, we are making the single bundle conductor cart, three bundle conductor trolley, as well as four and eight bundle conductor, in the same time, freely ask us if you are interested.
Use
Inspection Trolleys And Overhead Line Bicycles For Two Bundle Conductors is to mount accessories and to overhaul.
Notes
Inspection Trolleys And Overhead Line Bicycles For Two Bundle Conductors:Please explain clearly in writing the distance between conductors.
Technical data of Inspection trolleys and overhead line bicycles for two bundle conductors
| Model | Rated load(KN) | Maximum through diameter(mm) | Conductor distance(mm) | Weight(kg) | Remark |
| SFS2 | 1 | 40 | 400 | 34 | Horizontal |
| SFS2 | 1 | 40 | 450 | 36 | Horizontal |
| SFS2 | 1 | 40 | 500 | 38 | Horizontal |
| SFS400 | 1 | 40 | 400 | 40 | Vertical |
| FC400/450S | 1 | 60 | 400-450 | 34 | Horizontal |
| SFS1-400 | 1.5 | 70 | 400 | 38 | Horizontal |
| SFS1-450 | 1.5 | 70 | 450 | 40 | Horizontal |
Inspection Trolleys And Overhead Line Bicycles/carts For Four Bundle Conductors
UsesTo mount accessories and overhaul on four conductor and so on.
Notes
Please specify the wire spacing when ordering.
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
Technical Data of Inspection trolleys and overhead line bicycles/carts for four bundle conductors
| Model | Rated load(KN) | Maximum through diameter(mm) | Conductor distance | Weight(kg) |
| SFS1 | 1.5 | 70 | 450 | 40 |
| SFS1 | 1.5 | 70 | 500 | 40 |
| SFS3 | 1 | 40 | 500 | 36 |
| SFS3 | 1 | 40 | 450 | 38 |
| SFS3 | 1 | 40 | 500 | 40 |
| FSC400/450 | 1 | 60 | 400-450 | 43.5 |
Inspection Trolleys And Overhead Line Bicycles Application
Our Service:
| 1 | Well trained sales team service for you. |
| 2 | Small MOQ, usually sample is available. |
| 3 | Support OEM & ODM: we can print logo or customs package according to our client’s requirement. |
| 4 | Top quality: we have professional QC team to control the quality. |
| 5 | Timely delivery: we can send goods within 10~40 days after payment, it depend on products and quantity. |
| 6 | We work with DHL, UPS, FedEx, TNT and EMS for small order. For large order we can arrange shipment by air or by sea. |
| 7 | Satisfactory service: we treat clients as friends and 24 hours customer service. |
How to order?
| Step 1 | Contact Us |
| Show Us Item Name, Colors, Quantity and Details / Requirements | |
| Step 2 | Make a Performa Invoice for you |
| Step 3 | Performa Invoice Confirm and Payment |
| Step 4 | Production and Shipment |
