Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SA-YZ30A
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Export term
Delivery Time: 8-15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets / month
Model: |
SA-YZ30A |
Name: |
Hydraulic Tensioner |
Max Tension: |
30 KN |
Max Speed: |
5km/h |
Number Of Grooves: |
5 |
Weight: |
1700 Kg |
Model: |
SA-YZ30A |
Name: |
Hydraulic Tensioner |
Max Tension: |
30 KN |
Max Speed: |
5km/h |
Number Of Grooves: |
5 |
Weight: |
1700 Kg |

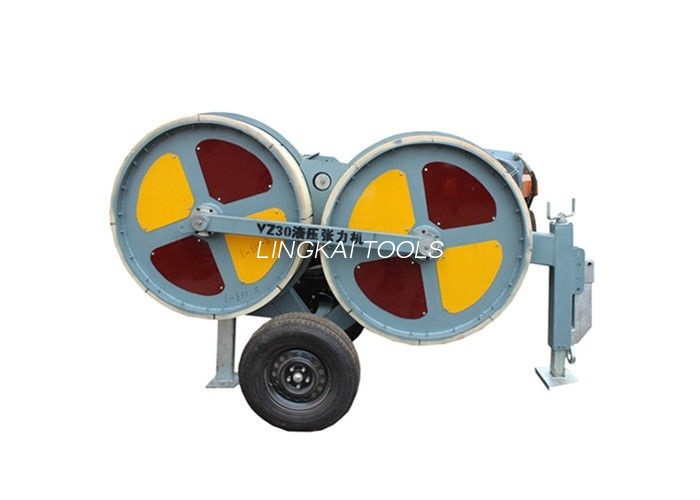

SA-YZ30A Hydraulic Cable Tensioner 3T For Stringing Overhead Conductor
Our SA-YZ30A Hydraulic Tensioner is an ideal product for releasing a variety of electric conductors and ground. Also, it is applicable for the tension stringing operation of both optical fiber composite overhead ground wire (OPGW) and all-dielectric self-supporting optic fiber cable (ADSS).
The bullwheel of our SA-YZ30A Hydraulic Tensioner adopts the wear resistant MC nylon lining segments. In addition, the infinitely variable pay-off tension can make the constant tension stringing come true. In case of hydraulic failure, the spring applied hydraulically released multi-plate brake can work automatically to ensure the safe operation.
Uses: be applied in a variety of electric conductors and ground. Also can for the tension stringing operation of both optical diber composite overhead ground wire (OPGW)and all- dielectric self-supporting optic fiber cable(ADSS).
Features:SA-YZ30A Hydraulic Cable Tensioner 3T For Stringing Overhead Conductor
1) This Tensioner adopt the wear resistant MC nylon lining segments.
2) The infinitely variable pay-off tension can make the canstant tension stringing come true.
3) Due to the spring applied hydraulically released multi-plate brake, when the hydraulic failure happens,it can still work automatically to enwure the safe operation.
Main Specifications:SA-YZ30A Hydraulic Cable Tensioner 3T For Stringing Overhead Conductor
| Model | SA-YZ30 Hydraulic Tensioner |
| Maximum Tension (kN) | 30 |
| Continuous Tension (kN) | 25 |
| Maximum Speed (km/h) | 5 |
| Bullwheel Bottom of Groove Diameter (mm) | Φ1200 |
| Number of Grooves | 5 |
| Maximum Pullback (kN) | 20 |
| Maximum Diameter of Suitable Conductor (mm) | Φ32 |
| Engine Power / Speed (kW/rpm) | 11/2200 |
| Dimensions (mm) | 3560 × 1600 × 2220 |
| Weight (kg) | 1700 |
Main Components:SA-YZ30A Hydraulic Cable Tensioner 3T For Stringing Overhead Conductor
| Engine | Chinese top-brand water-cooled diesel engine |
| Main Pump/Motor | Chinese famous-brand pump and motor |
| Reducer | RR (Italian) |
| Radiator | AKG |
| Hydraulic Instrument | WIKA |
| Option | Imported engine (Product Model: SA-YZ30B, Item number: 07156) |
How to order?
| Step 1 | Contact Us |
| Show Us Item Name, Colors, Quantity and Details / Requirements | |
| Step 2 | Make a Performa Invoice for you |
| Step 3 | Performa Invoice Confirm and Payment |
| Step 4 | Production and Shipment |
Our Service:
High quality fasteners products with best price;
Many years excellent experience with pre-sale and after-sale service;
Strict quality control according to your requirement;
Professional packing team keep every pack safely;
Send you some free samples along with your cargo to share us quality;
