Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SA-YZ40A
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Export term
Delivery Time: 8-15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets / month
Model: |
SA-YZ40A |
Name: |
Hydraulic Cable Tensioner |
Max Tension: |
4T |
Max Speed: |
5km/h |
Groove Number: |
5 |
Weight: |
2800kg |
Model: |
SA-YZ40A |
Name: |
Hydraulic Cable Tensioner |
Max Tension: |
4T |
Max Speed: |
5km/h |
Groove Number: |
5 |
Weight: |
2800kg |

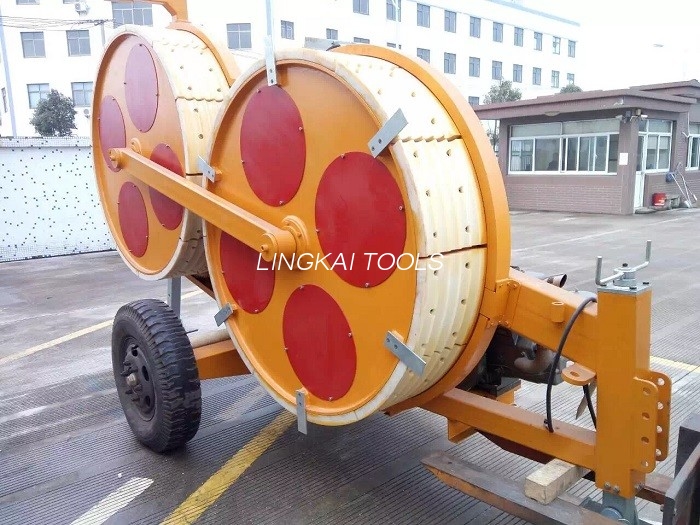

40KN Hydraulic Cable Tension Stringing Equipment With MC Nylon Bul lwheel
Our SA-YZ40A Hydraulic Tensioner is suitable for the tension stringing operation of various steel wire ropes, conductors, and earth wires. Its bullwheel is lined with the abrasion resistant MC nylon material, and the groove spacing is ultra wide. Additionally, this product can achieve the constant-tension conductor stringing, due to the infinitely variable tension control.
In case of hydraulic failure, the spring applied hydraulically released multi-plate brake can work automatically, thus ensuring the safe operation. Our SA-YZ40A Hydraulic Tensioner is also equipped with the hydraulic-power output interface, which is used to connect the shaft bracket of hydraulic wire.
Product Introduction:
40KN Hydraulic Cable Tension Stringing Equipment With MC Nylon Bul lwheel
The overhead transmission line tension stringing equipments are widely used in overhead transmission Line Conductor or OPGW tension stringing project. We are the only one to supply whole set of stringing equipment and tools for transmission line construction in China.We could supply whole set of stringing equipment and tools for transmission line up to 1000KV construction.
Features:
40KN Hydraulic Cable Tension Stringing Equipment With MC Nylon Bul lwheel
1. This Tensioner adopts the wear resistant MC nylon lining segments.
2. The infinitely variable pay-off tension can make the constant tension stringing come true.
3. Due to the spring applied hydraulically released multi-plate brake, when the hydraulic failure happens, it can still work automatically to ensure the safe operation.
4. The groove space is ultra wide.
5. Also be equipped with the hydraulic -power output interface, which is used to connect the shaft bracket of hydraulic wire.
Technical Parameters:
40KN Hydraulic Cable Tension Stringing Equipment With MC Nylon Bul lwheel
| Model | SA-YZ40 Hydraulic Tensioner |
| Maximum Tension (kN) | 40 |
| Continuous Tension (kN) | 35 |
| Maximum Speed (km/h) | 5 |
| Bullwheel Bottom of Groove Diameter (mm) | Φ1200 |
| Number of Grooves | 5 |
| Maximum Pullback (kN) | 40 |
| Maximum Speedback (km/h) | 3 |
| Maximum Diameter of Suitable Conductor (mm) | Φ32 |
| Engine Power / Speed (kW/rpm) | 51/2500 |
| Dimensions (mm) | 3400× 1800× 2400 |
| Weight (kg) | 2800 |
Configurations
| Engine | Beinei Deutz air cooled diesel engine |
| Main Pump/Motor | Rexroth (BOSCH) |
| Reducer | RR (Italian) |
| Hydraulic Valve | Rexroth (BOSCH) |
| Radiator | AKG |
| Hydraulic Instrument | WIKA |
