Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SA-YZ2×35
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Export term
Delivery Time: 8-15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets / month
Model: |
SA-YZ2×35 |
Tension Force: |
2x35KN, 70KN |
Apply: |
Stringing Conductor |
Motor: |
BOSCH |
Reducer: |
ROSCH |
Valve: |
ROSCH |
Model: |
SA-YZ2×35 |
Tension Force: |
2x35KN, 70KN |
Apply: |
Stringing Conductor |
Motor: |
BOSCH |
Reducer: |
ROSCH |
Valve: |
ROSCH |

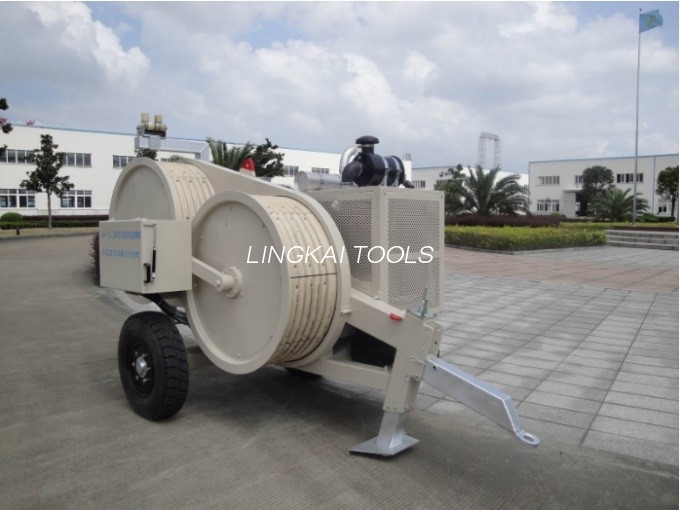

70KN Cable Tensioners SA-YZ2×35 To Stringing One Or Two Bundle Conductor
This SA-YZ2×35 Hydraulic Tensioner is able to string all sorts of conductors and ground wires. It can realize the constant-tension conductor stringing, because of the infinitely variable tension control.
Moreover, our SA-YZ2×35 Hydraulic Tensioner comes with two sets of hydraulic power output interface, so as to connect the hydraulic conductor reel stand. If a hydraulic failure occurs, the spring applied hydraulically released multi-plate brake can run automatically to ensure safety. The bullwheel of this product adopts MC nylon lining segments, featuring wear resistance.
Application:
70KN Cable Tensioners SA-YZ2×35 To Stringing One Or Two Bundle Conductor
SA-YZ2*35 Hydraulic cable tensioner machine for stringing is adequate to tension releasing various conducts and earthwires.
Feature:
70KN Cable Tensioners SA-YZ2×35 To Stringing One Or Two Bundle Conductor
1. Bullwheel with wearproof MC nylon lining segments.
2. Infinitely variable tension control and constant tension conductor stringing .
3. Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety.
4.Attached two sets of hydraulic power input interface to connect the hydraulic conductor reel stand.
Main Technical Parameters:
70KN Cable Tensioners SA-YZ2×35 To Stringing One Or Two Bundle Conductor
| Model | SA-YZ70 Hydraulic Tensioner |
| Maximum Tension (kN) | 2× 35 or 1× 70 |
| Continuous Tension (kN) | 2× 30 or 1× 60 |
| Maximum Speed (km/h) | 5 |
| Bullwheel Bottom of Groove Diameter (mm) | Φ1200 |
| Number of Grooves | 2× 5 |
| Maximum Pullback (kN) | 2× 30 or 1× 60 |
| Maximum Speedback (km/h) | 2× 2.1 |
| Maximum Diameter of Suitable Conductor (mm) | Φ32 |
| Engine Power / Speed (kW/rpm) | 51/2500 |
| Dimensions (mm) | 4400 × 2100× 2600 |
| Weight (kg) | 4000 |
Main Components:
70KN Cable Tensioners SA-YZ2×35 To Stringing One Or Two Bundle Conductor
| Engine | Beinei Deutz air cooled diesel engine |
| Main Pump/Motor | Rexroth (BOSCH) |
| Reducer | RR (Italian) or Rexroth |
| Hydraulic Valve | Rexroth (BOSCH) |
| Radiator | AKG |
| Hydraulic Instrument | WIKA |
