Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SA-YZ2X40
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Export term
Delivery Time: 8-15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets / month
Model: |
SA-YZ2X40 |
Name: |
Cable Tensioner |
Tension Force: |
2X40KN |
Apply: |
Stringing Conductor |
Bullwheel: |
MC Nylon Material |
Weight: |
4850kg |
Model: |
SA-YZ2X40 |
Name: |
Cable Tensioner |
Tension Force: |
2X40KN |
Apply: |
Stringing Conductor |
Bullwheel: |
MC Nylon Material |
Weight: |
4850kg |

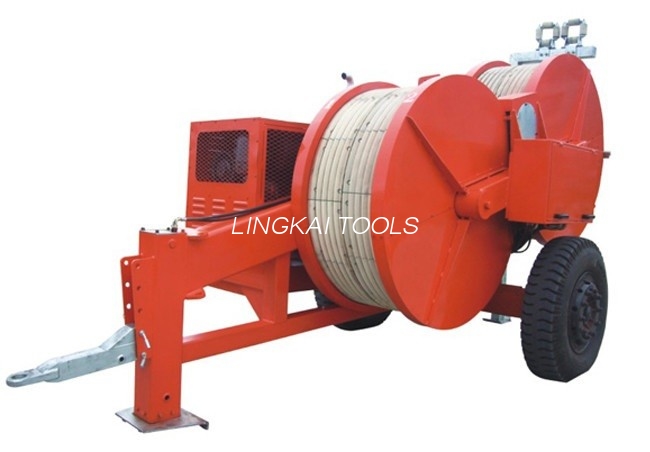

2x40KN Hydraulic Cable Tensioner Wire Tensioner For Stringing Overhead Line
Our SA-YZ2×40B Hydraulic Tensioner serves to string various types of conductors and earth wires. Either one-pull-one or one-pull-two is available.
The infinitely variable tension control system allows this SA-YZ2×40B Hydraulic Tensioner to realize the constant-tension conductor stringing operation. If a hydraulic failure happens, the spring applied hydraulically released multi-plate brake will act automatically. Thus, the operation is made safe.
Furthermore, our product is designed with two sets of hydraulic power output interface, which is able to connect the hydraulic conductor reel stand. Its bullwheel is specially lined with the wear-resistant MC nylon material.
Essential Parameters
2x40KN Hydraulic Cable Tensioner Wire Tensioner For Stringing Overhead Line
| Model | SA-YZ2*40B Hydraulic Tensioner |
| Maximum Tension (kN) | 2× 40 or 1× 80 |
| Continuous Tension (kN) | 2× 35 or 1× 70 |
| Maximum Speed (km/h) | 5 |
| Bullwheel Bottom of Groove Diameter (mm) | Φ1500 |
| Number of Grooves | 2× 5 |
| Maximum Pullback (kN) | 2× 40 or 1× 80 |
| Maximum Speedback (km/h) | 2× 1.5 |
| Maximum Diameter of Suitable Conductor (mm) | Φ40 |
| Engine Power / Speed (kW/rpm) | 51/2500 |
| Dimensions (mm) | 4500 × 2200 × 2800 |
| Weight (kg) | 4850 |
Main Components
2x40KN Hydraulic Cable Tensioner Wire Tensioner For Stringing Overhead Line
| Engine | Beinei Deutz air cooled diesel engine |
| Main Pump/Motor | Rexroth (BOSCH) |
| Reducer | RR (Italian) |
| Main Hydraulic Valve | Rexroth (BOSCH) |
| Radiator | AKG |
| Hydraulic Instrument | WIKA |
| Option | If use Deutz (Germany) diesel engine,the model is SA-YZ2×40A,item number:07191 |
| Others | According to customer requirement, our SA-YZ2×40B Hydraulic Tensioner can configure mobile control consoles. It is easy for one operator to control 2 machines simultaneously, which facilitates 4-conductor-stringing operation using two machines. The item number of control consoles is 07193. |
FAQ:
1. Are you a manufacturer or a trading company?
We are a professional fasteners manufacturer with rich experience. And in order to do business with your company well, we established a branch to open the foreign trade fields.
2. Do you offer free samples?
We can provide free samples below 10 USD and you should pay the freight. After you place an order, we will give back the freight.
3. Do you accept our design on products or boxes?
Yes. We accept customized design and we have a professional design team who can design products based on your requirements.
4. How long is your delivery time?
Generally 7-10 days if the goods are in stock or 15-30 days not in stock.In a word, according to the order quantity.
Factory price
We are the trading company with our own directly factory. So you can get high quality products with factory price. For big order and regular Customers, we give favorable discounts.
